Theft Deterrent System

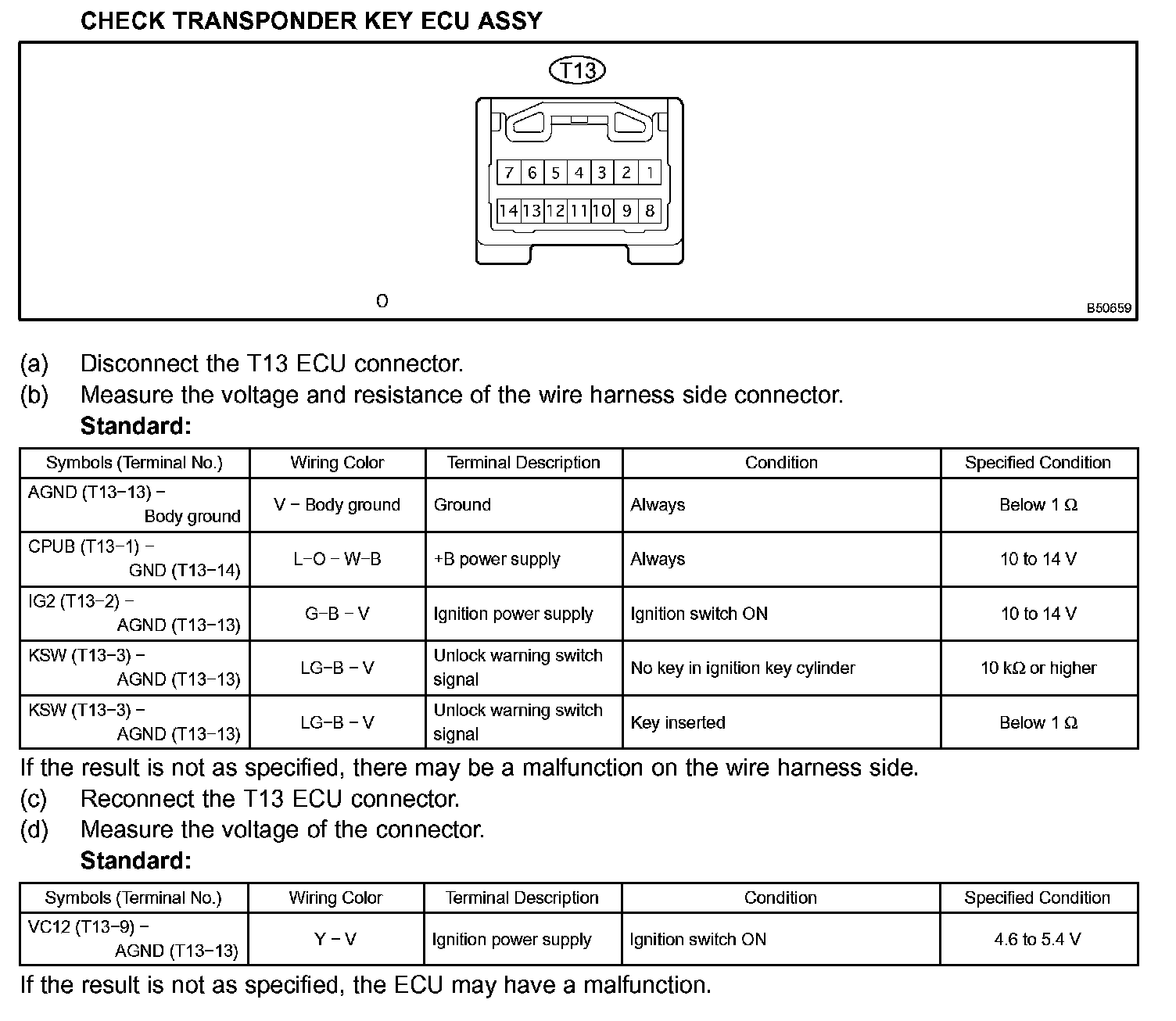

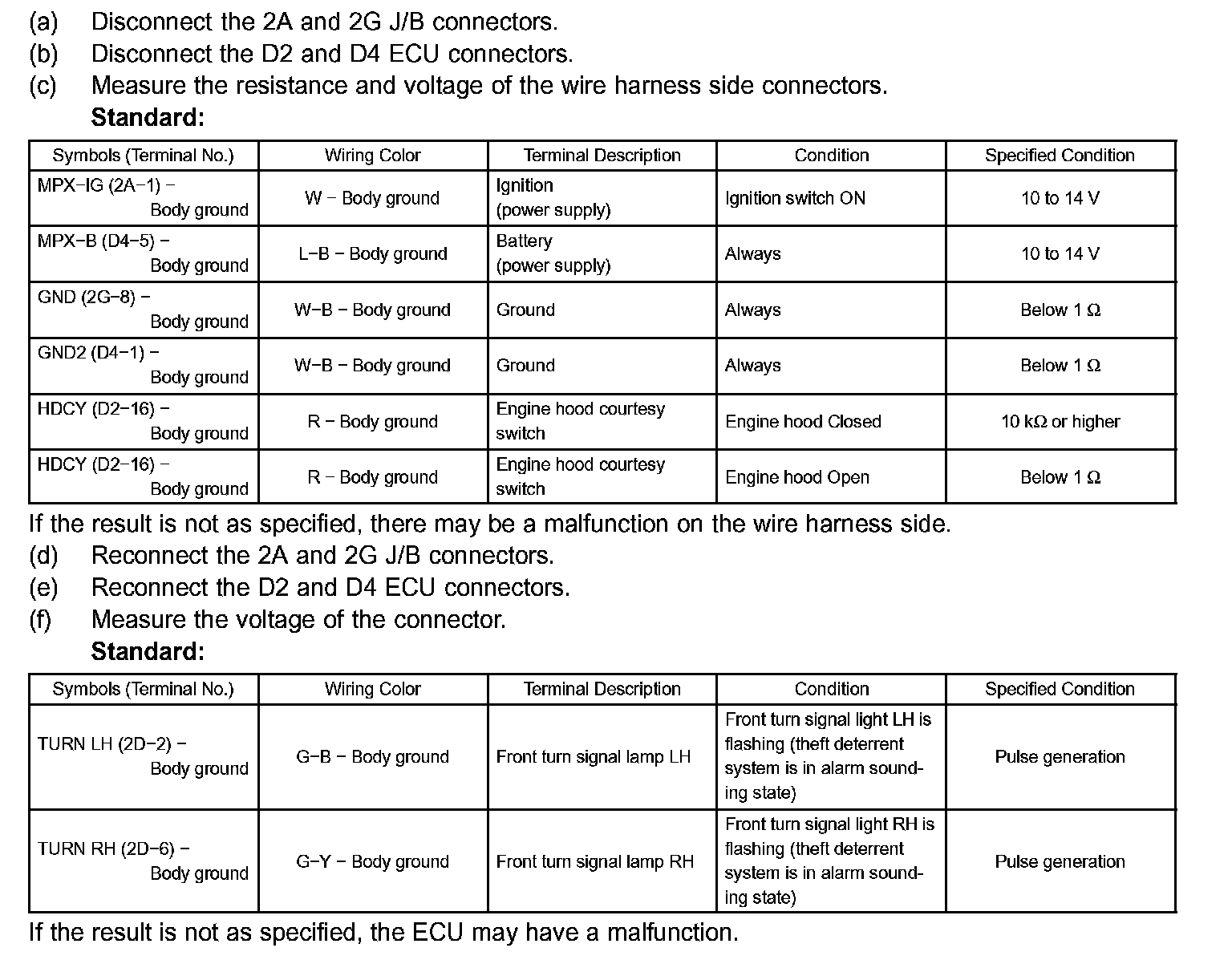

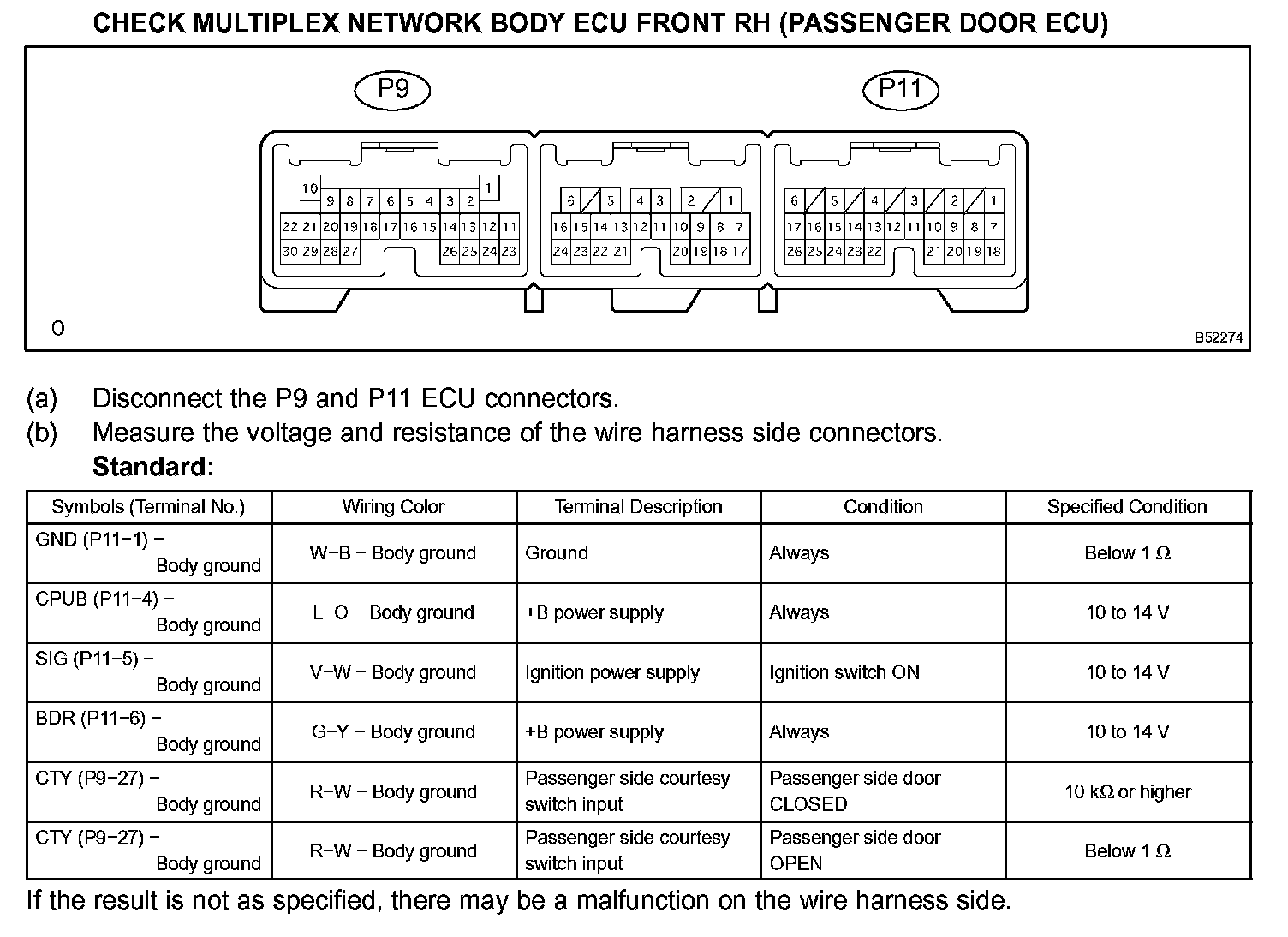

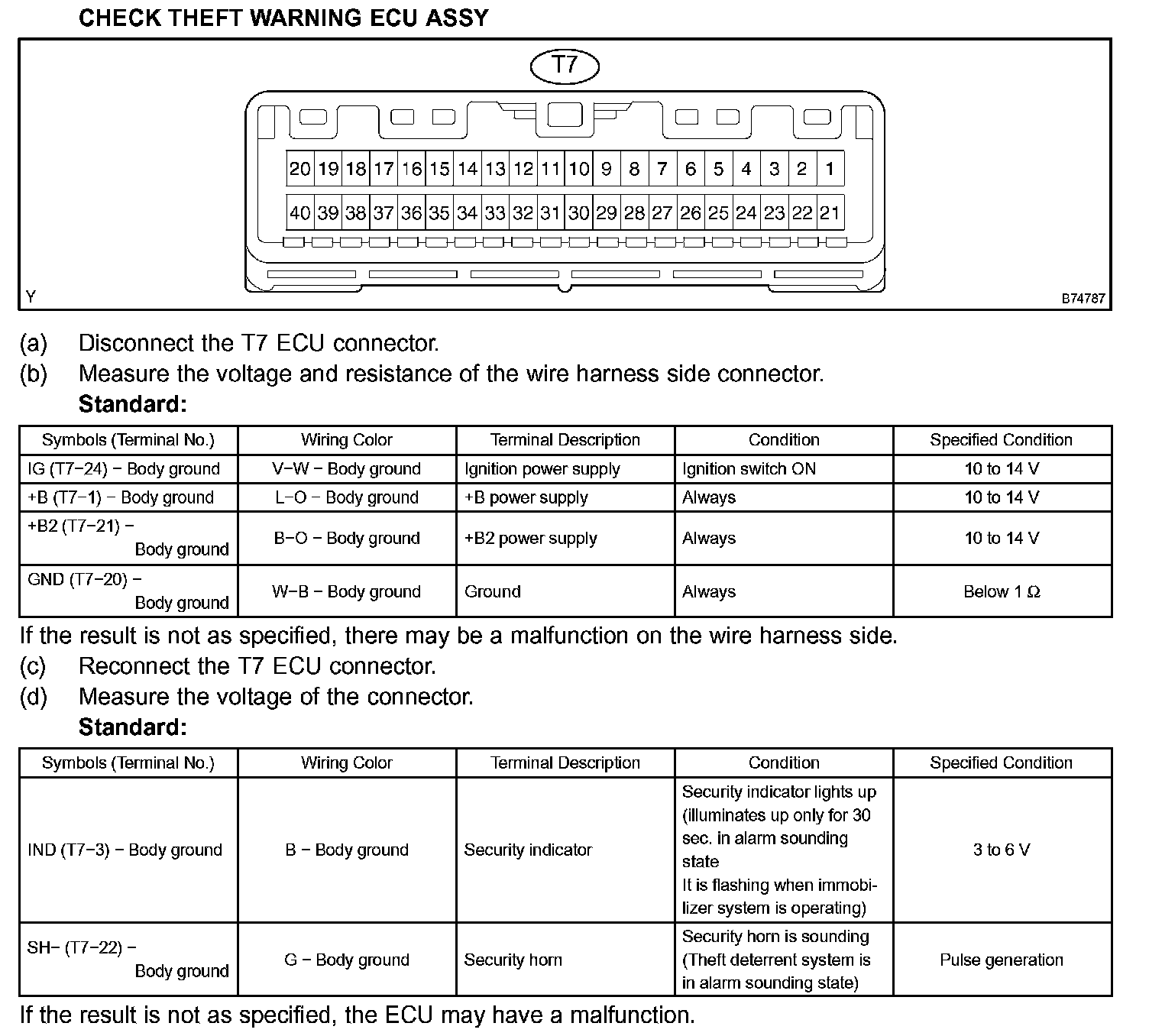

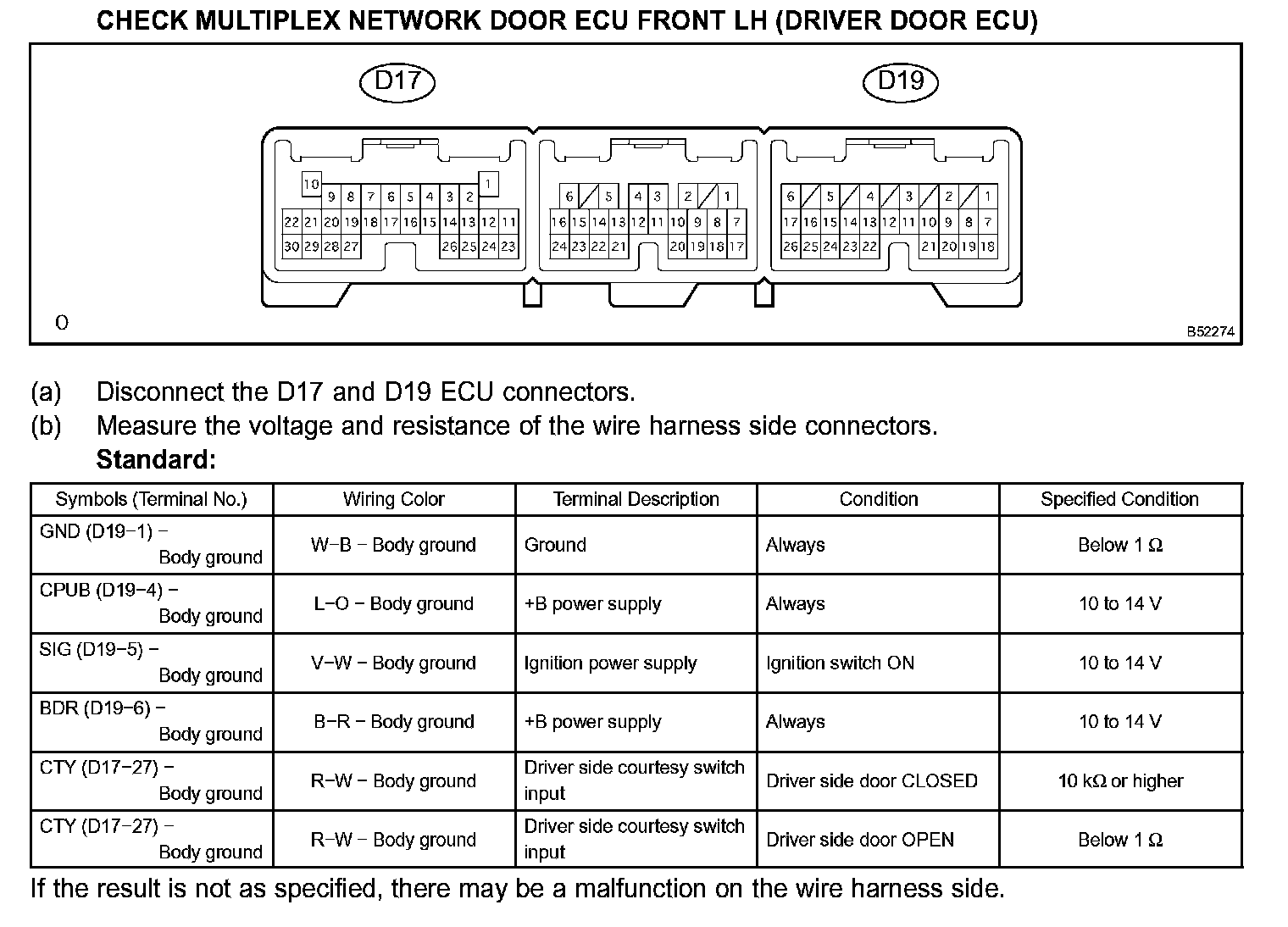

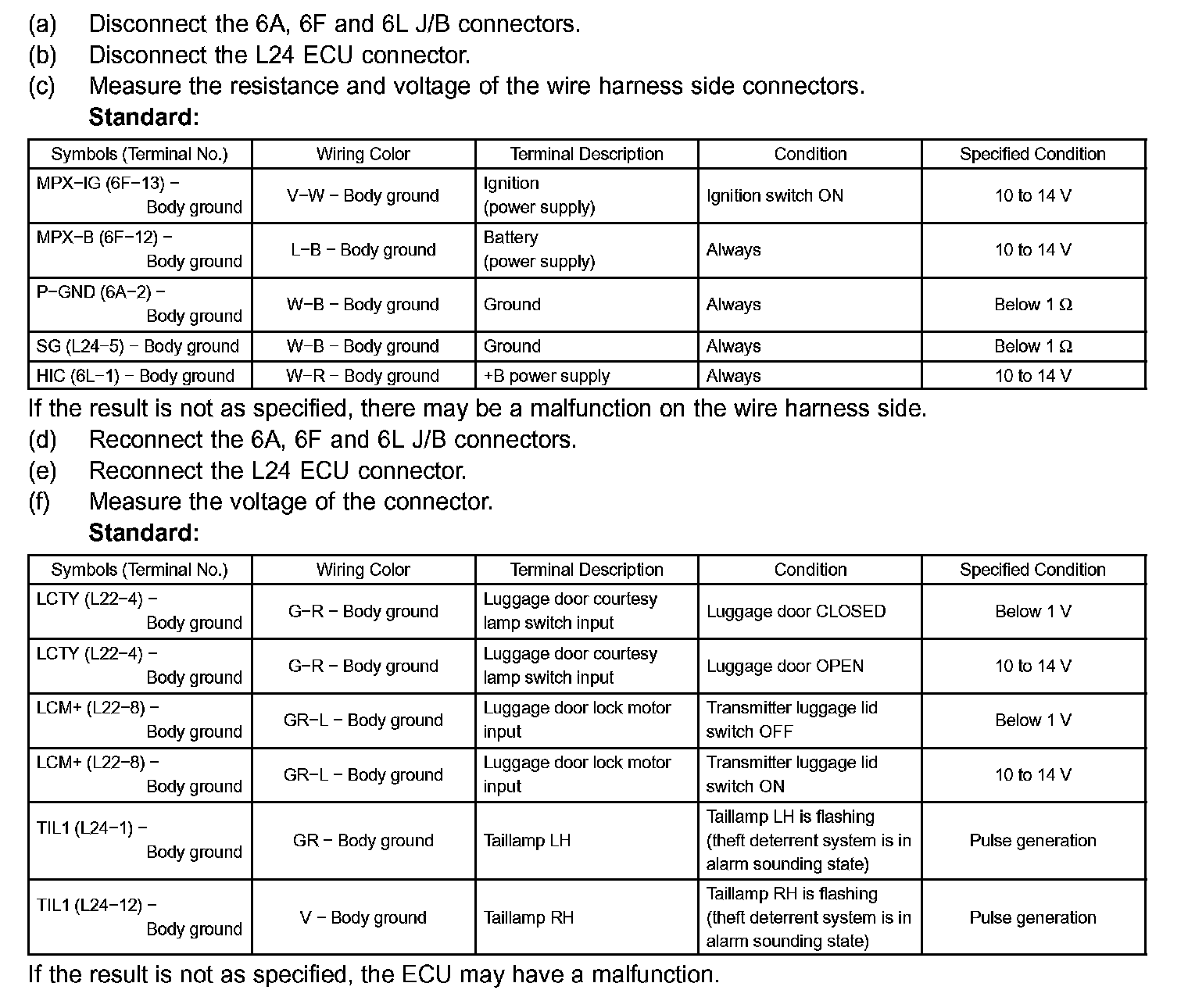

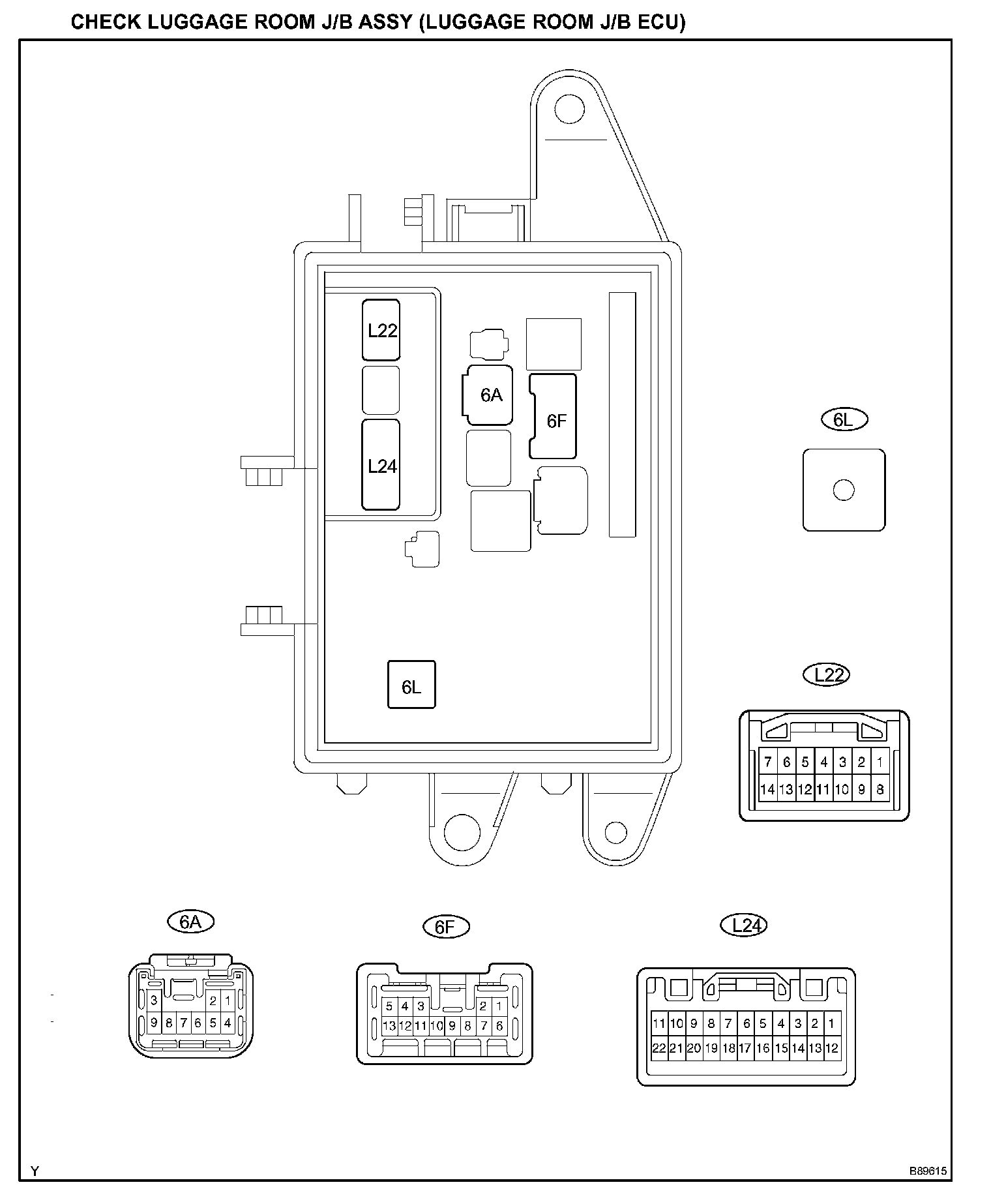

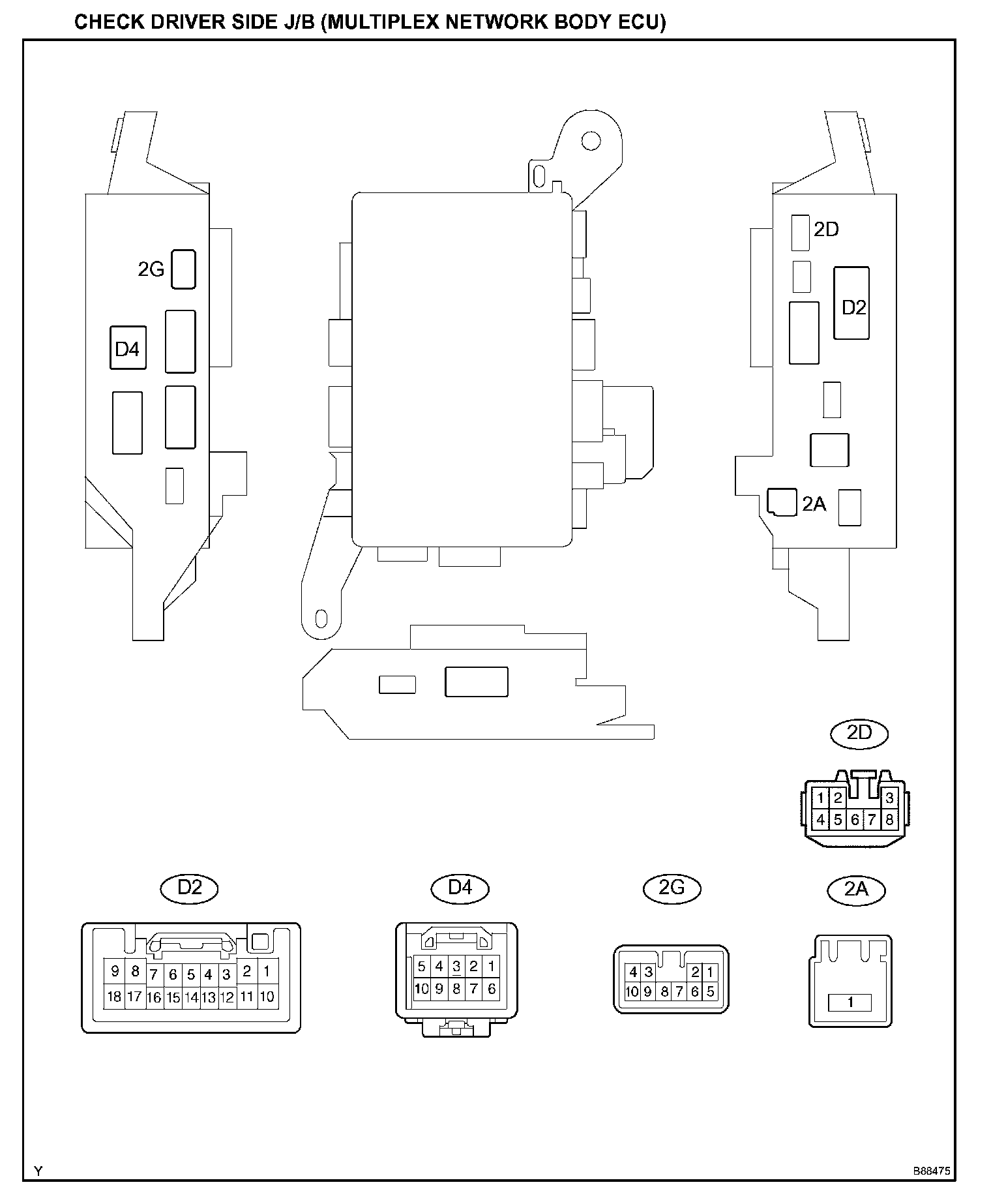

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:
