Reverse Signal Circuit

REVERSE SIGNAL CIRCUIT

CIRCUIT DESCRIPTION

The navigation ECU receives the reverse signal from the passenger side J/B ECU and information about the GPS antenna, and then adjusts the vehicle position.

Wiring Diagram:

Step 1:

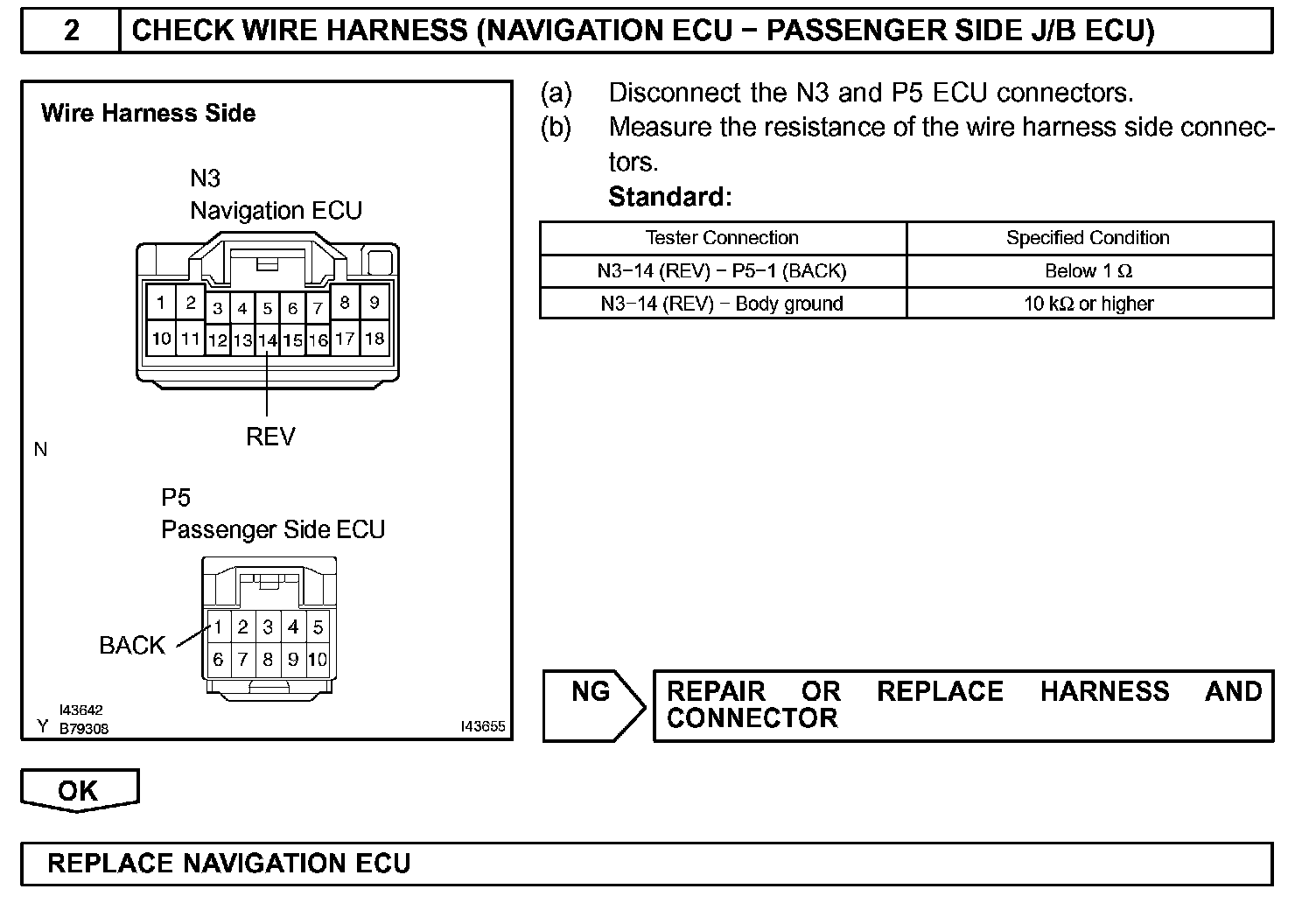

Step 2:

INSPECTION PROCEDURE
