Pinout Values and Diagnostic Parameters

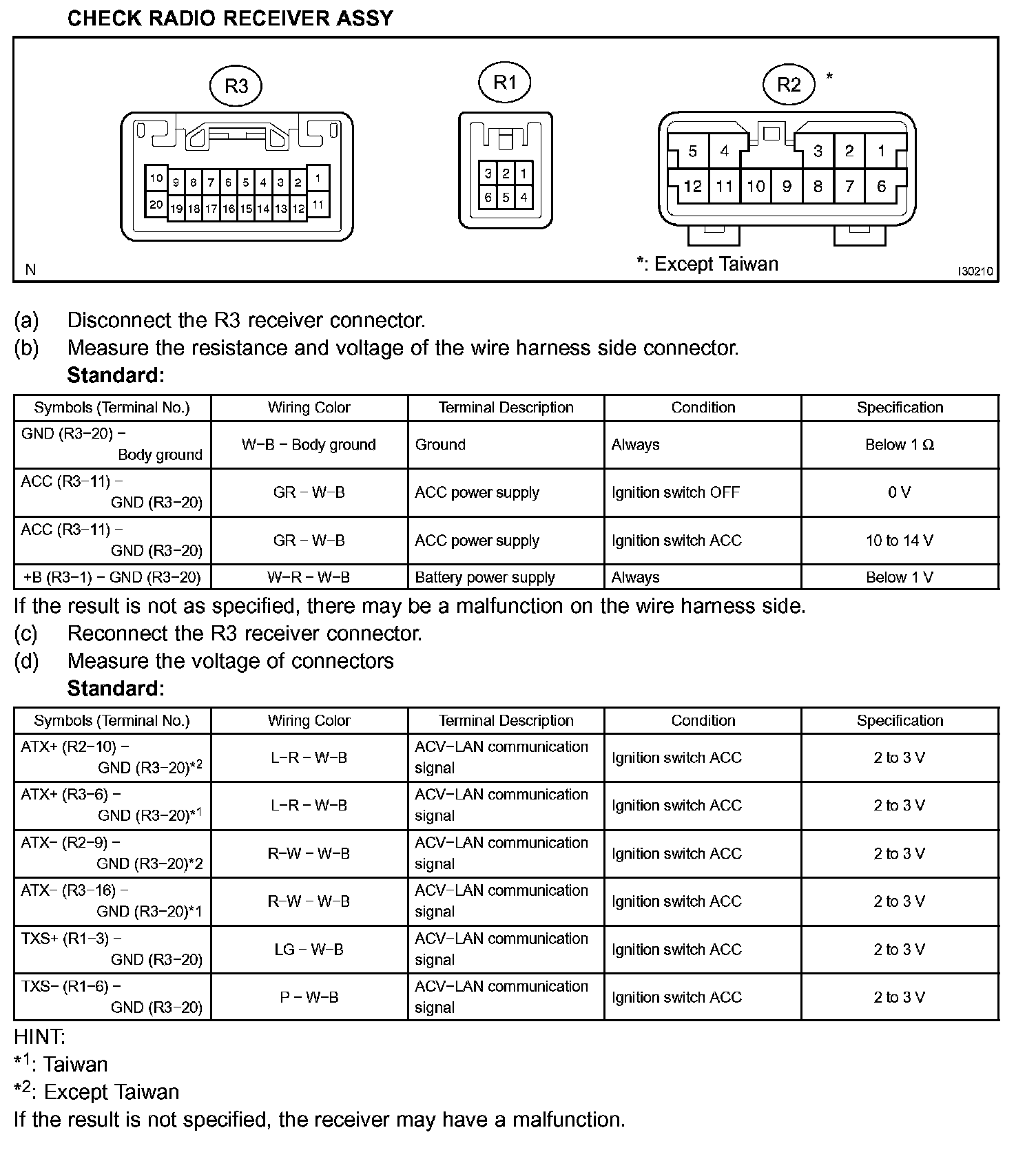

Terminals Of Control Module/Pinouts:

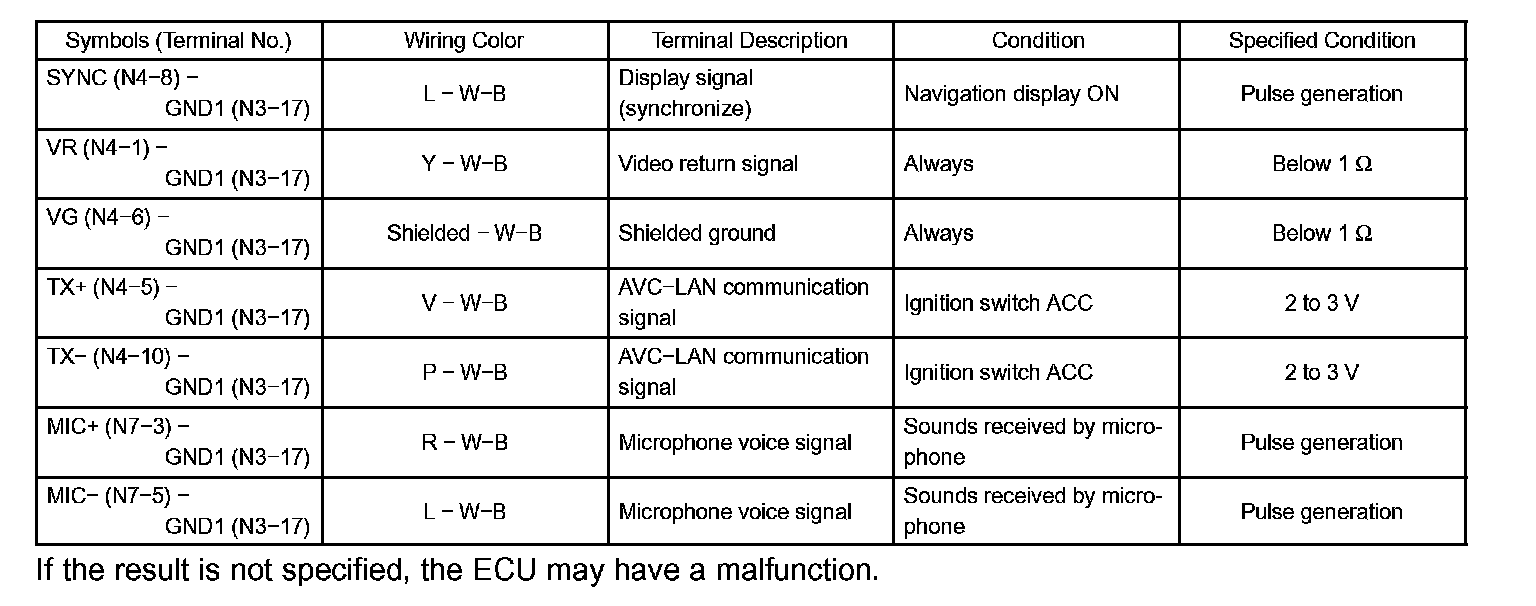

Terminals Of Control Module/Pinouts (Part 2):

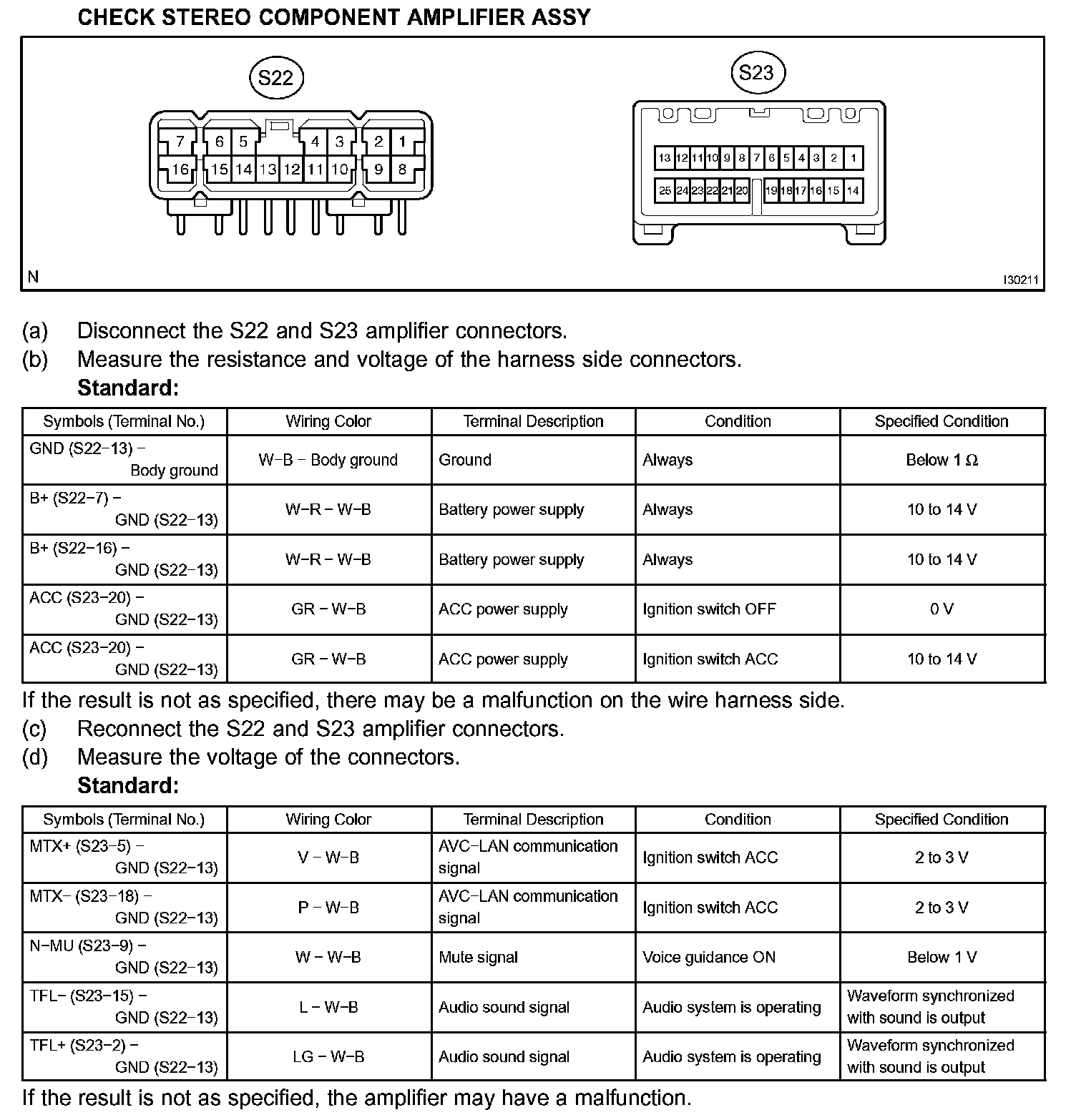

Terminals Of Control Module/Pinouts:

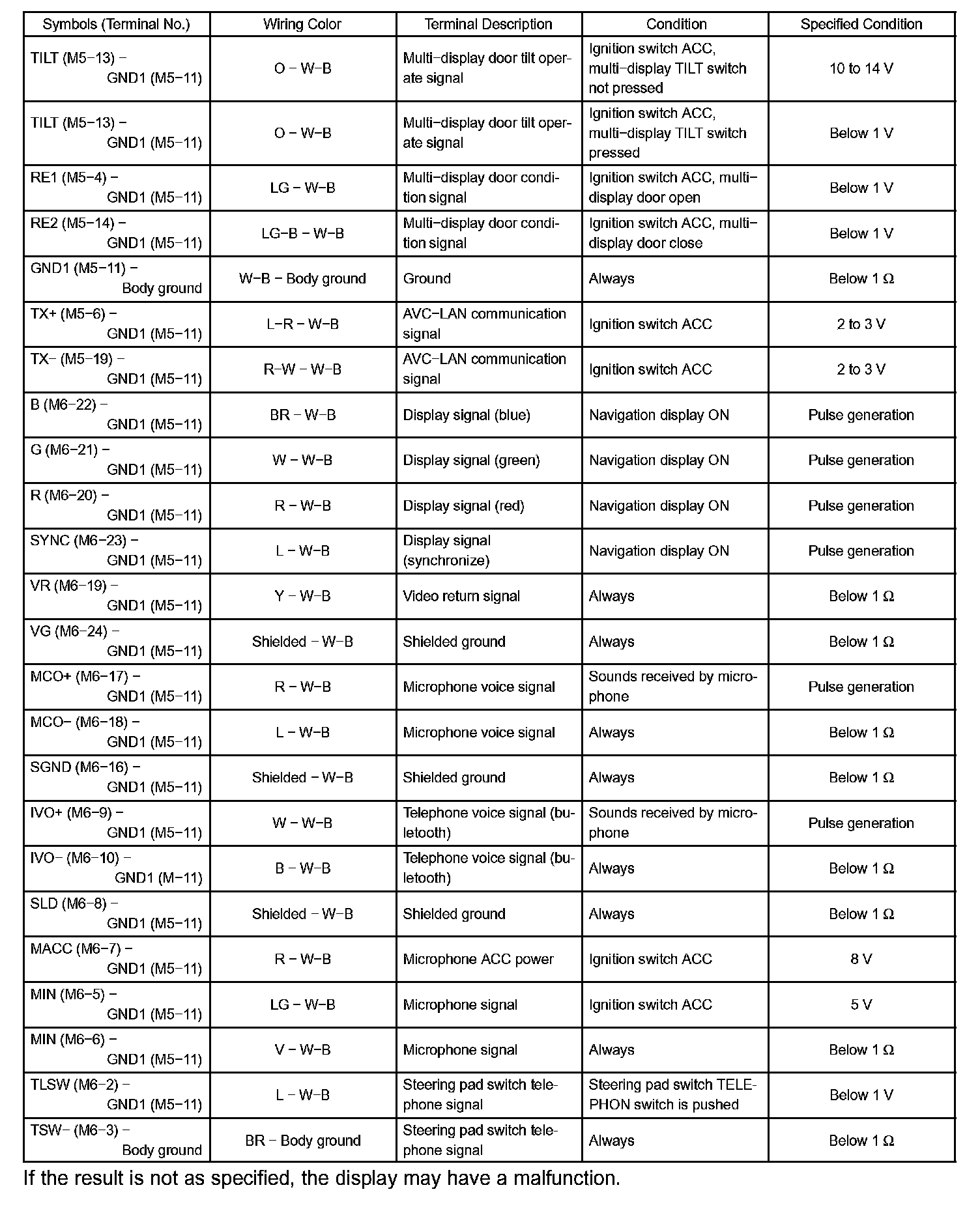

Terminals Of Control Module/Pinouts (Part 2):

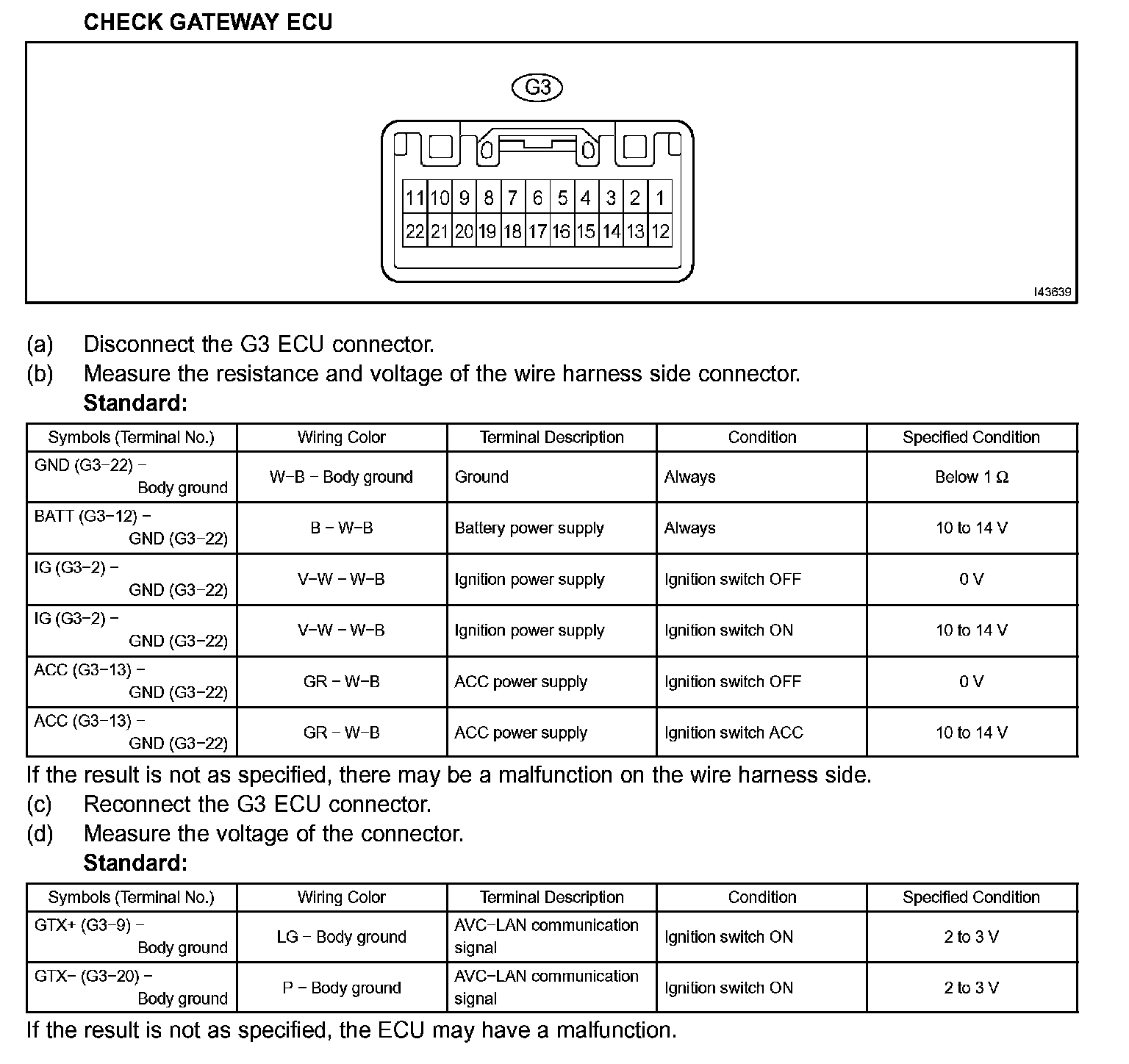

Terminals Of Control Module/Pinouts:

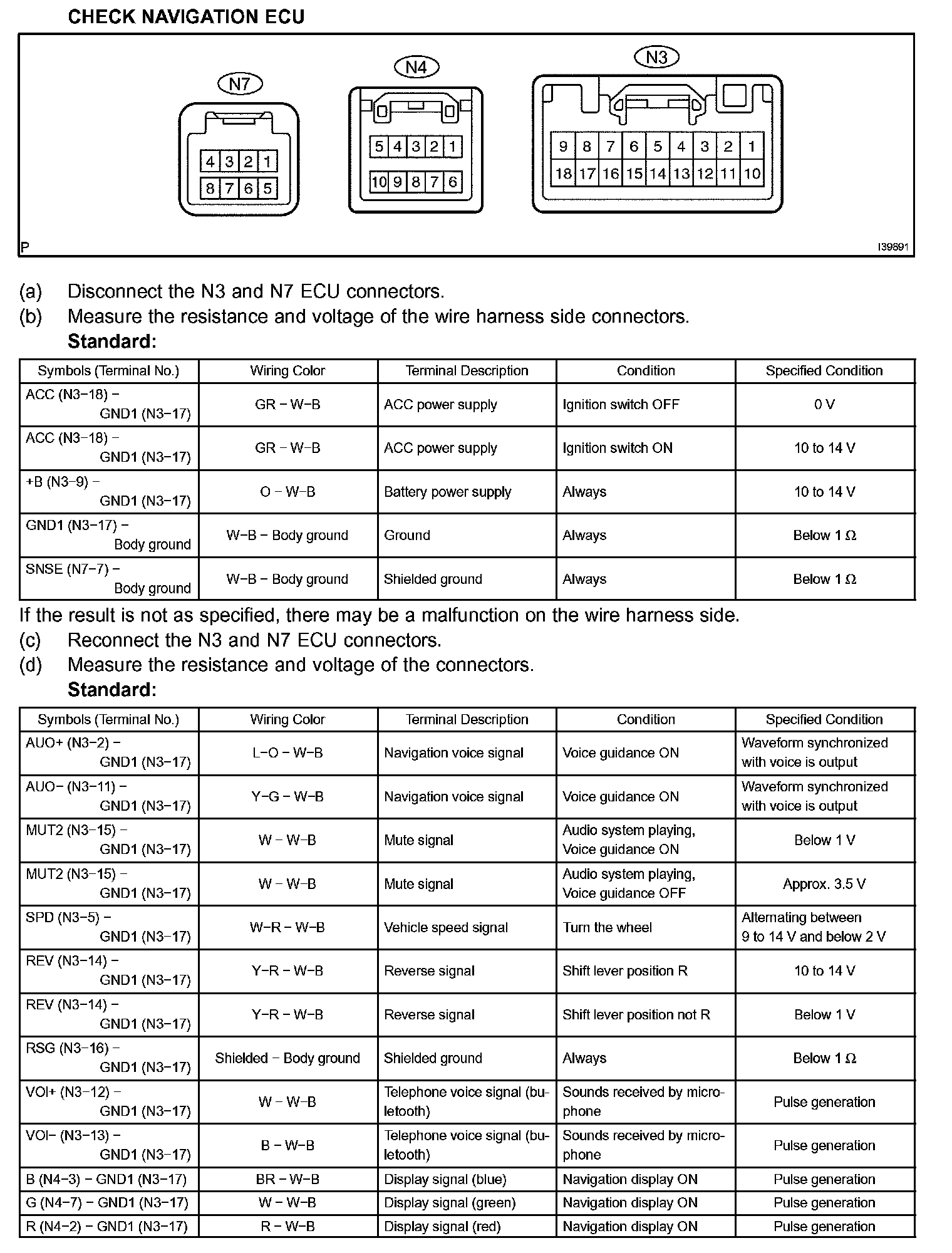

Terminals Of Control Module/Pinouts:

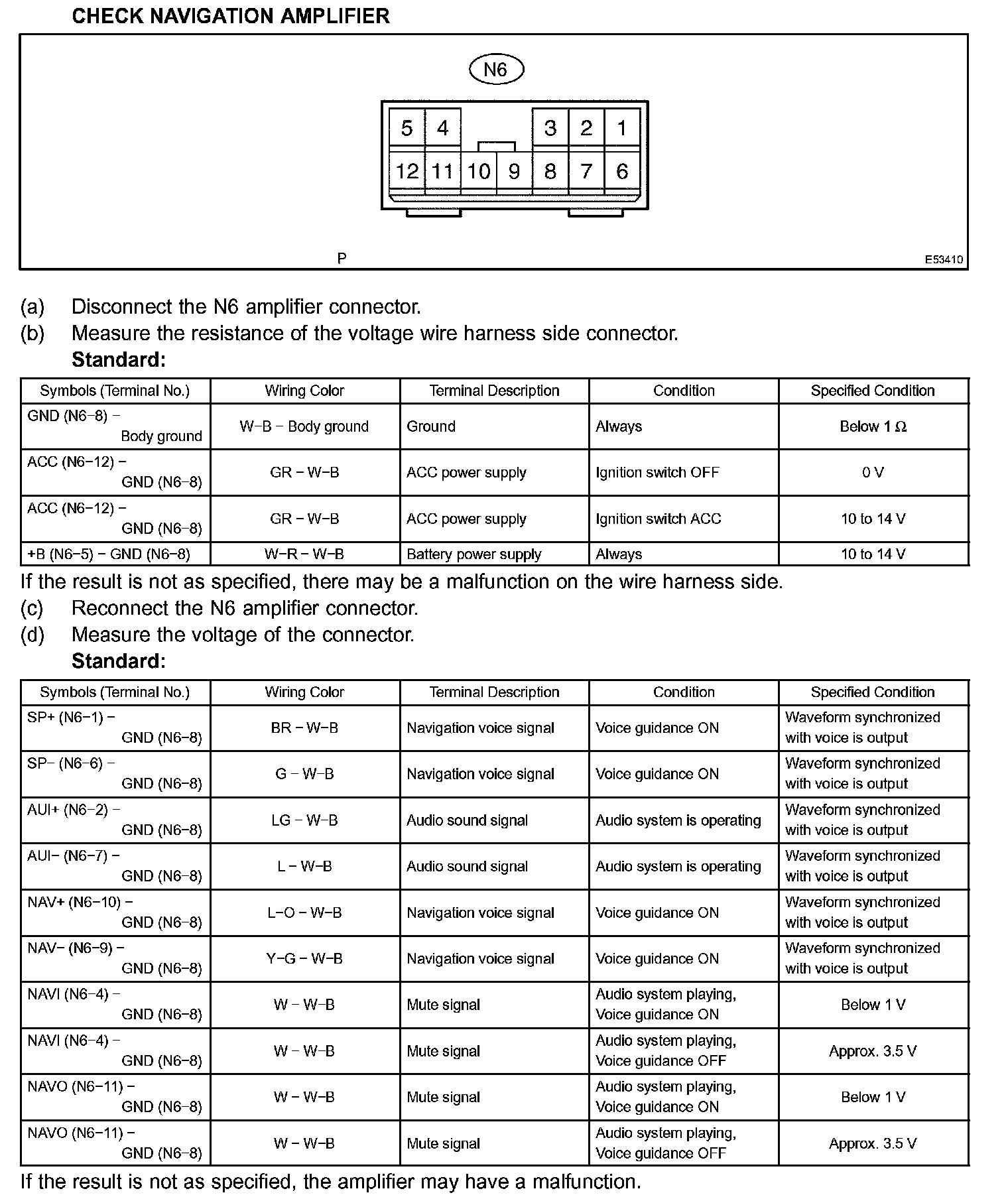

Terminals Of Control Module/Pinouts:

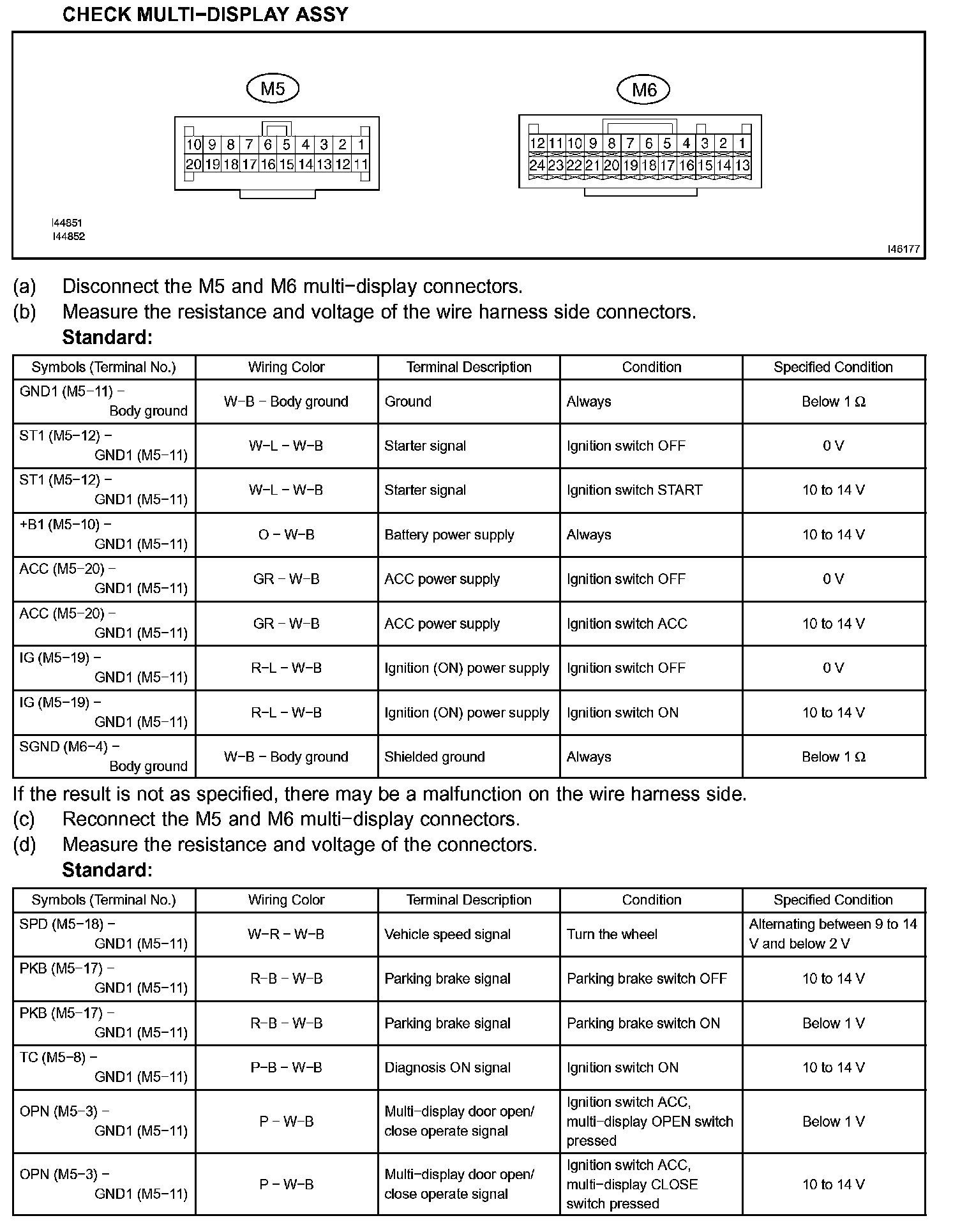

Terminals Of Control Module/Pinouts:
