Pinout Values and Diagnostic Parameters

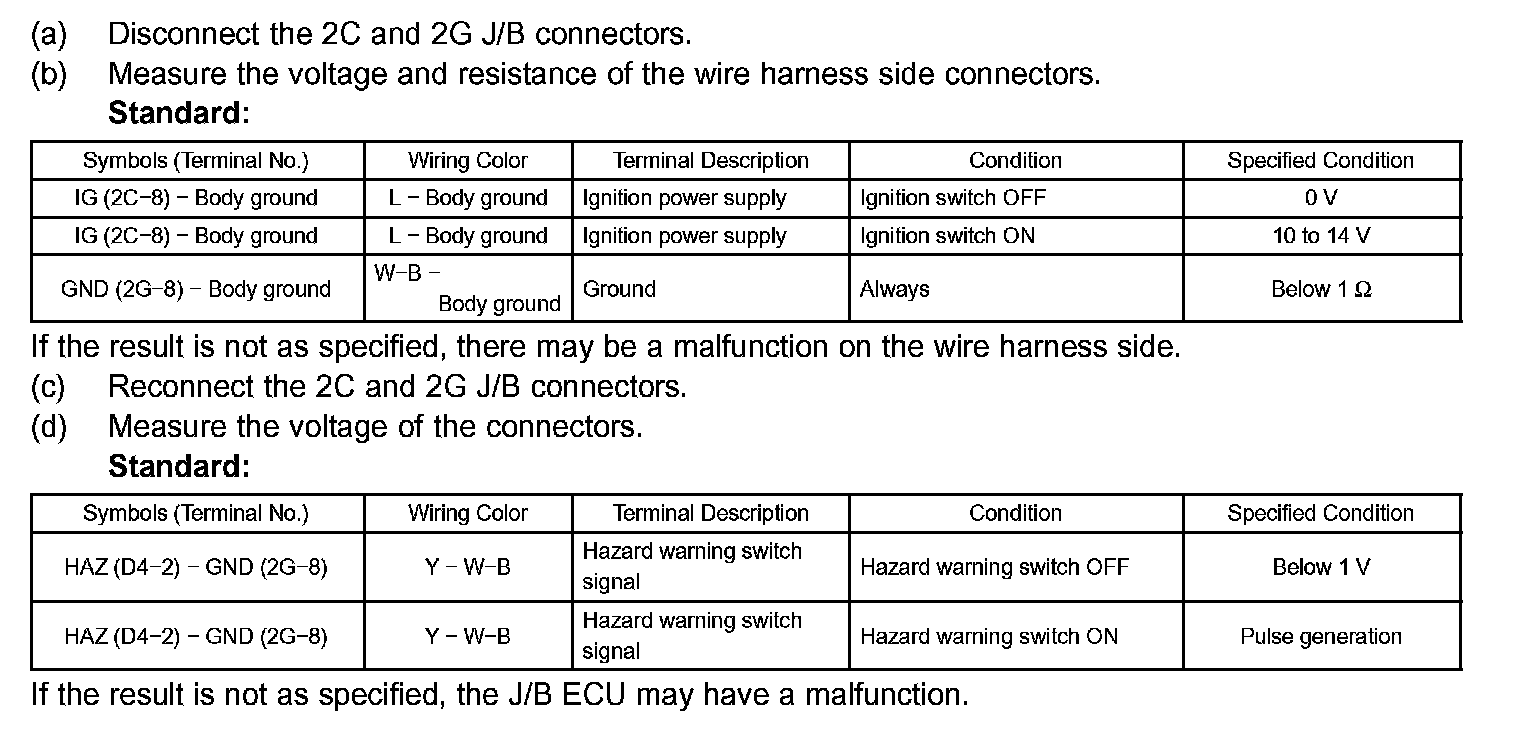

Terminals Of Control Module/Pinouts:

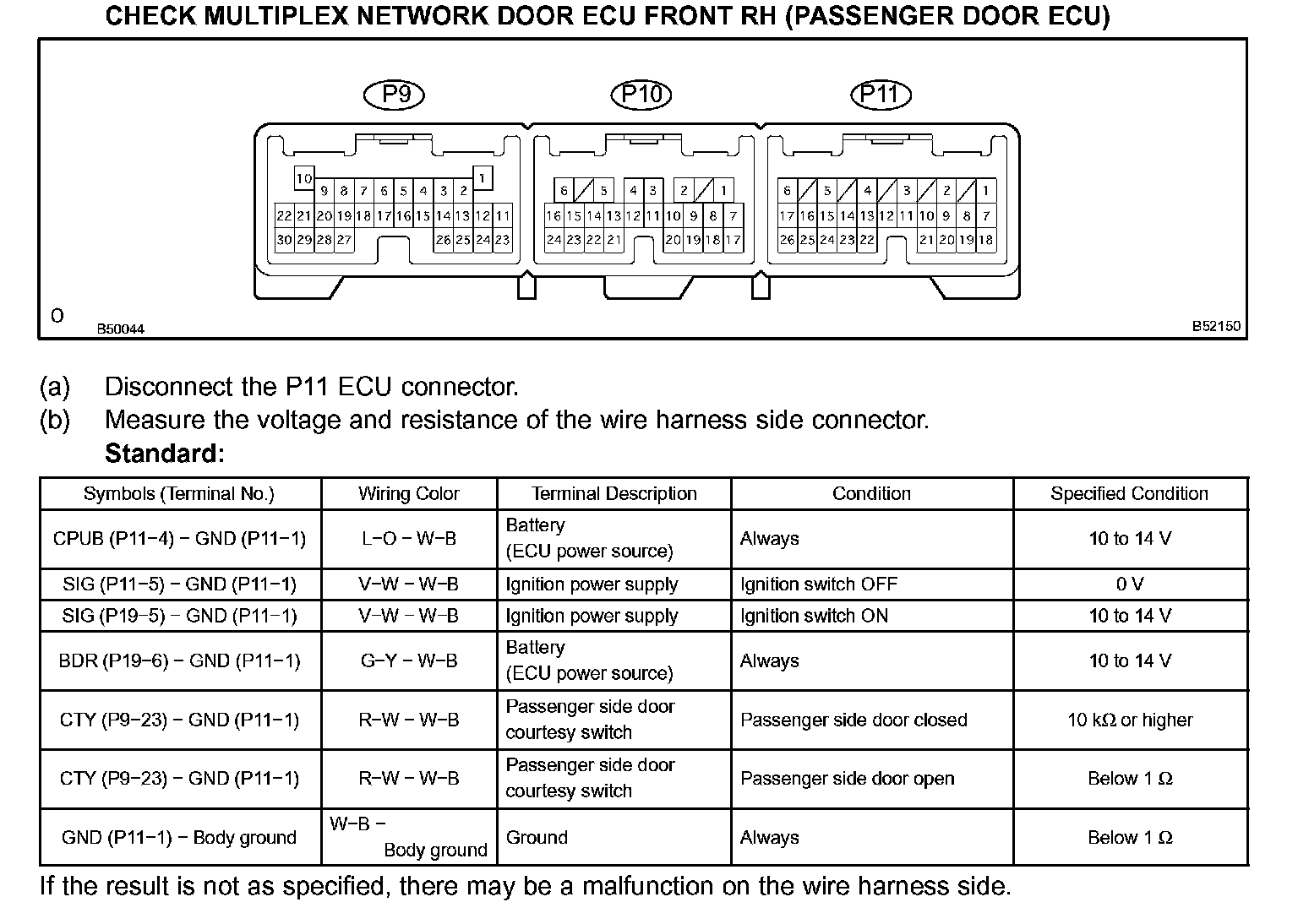

Terminals Of Control Module/Pinouts (Part 4):

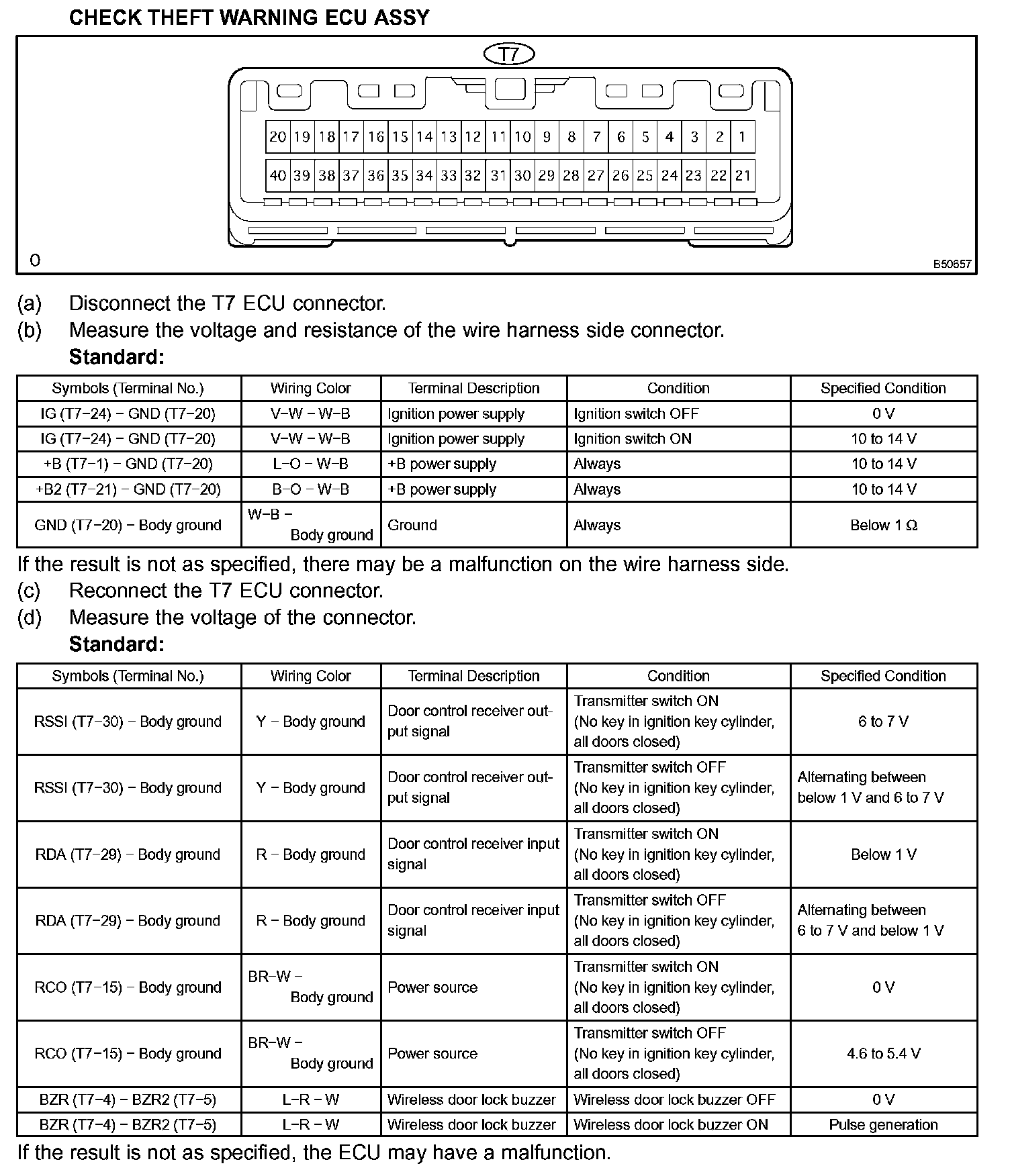

Terminals Of Control Module/Pinouts (Part 5):

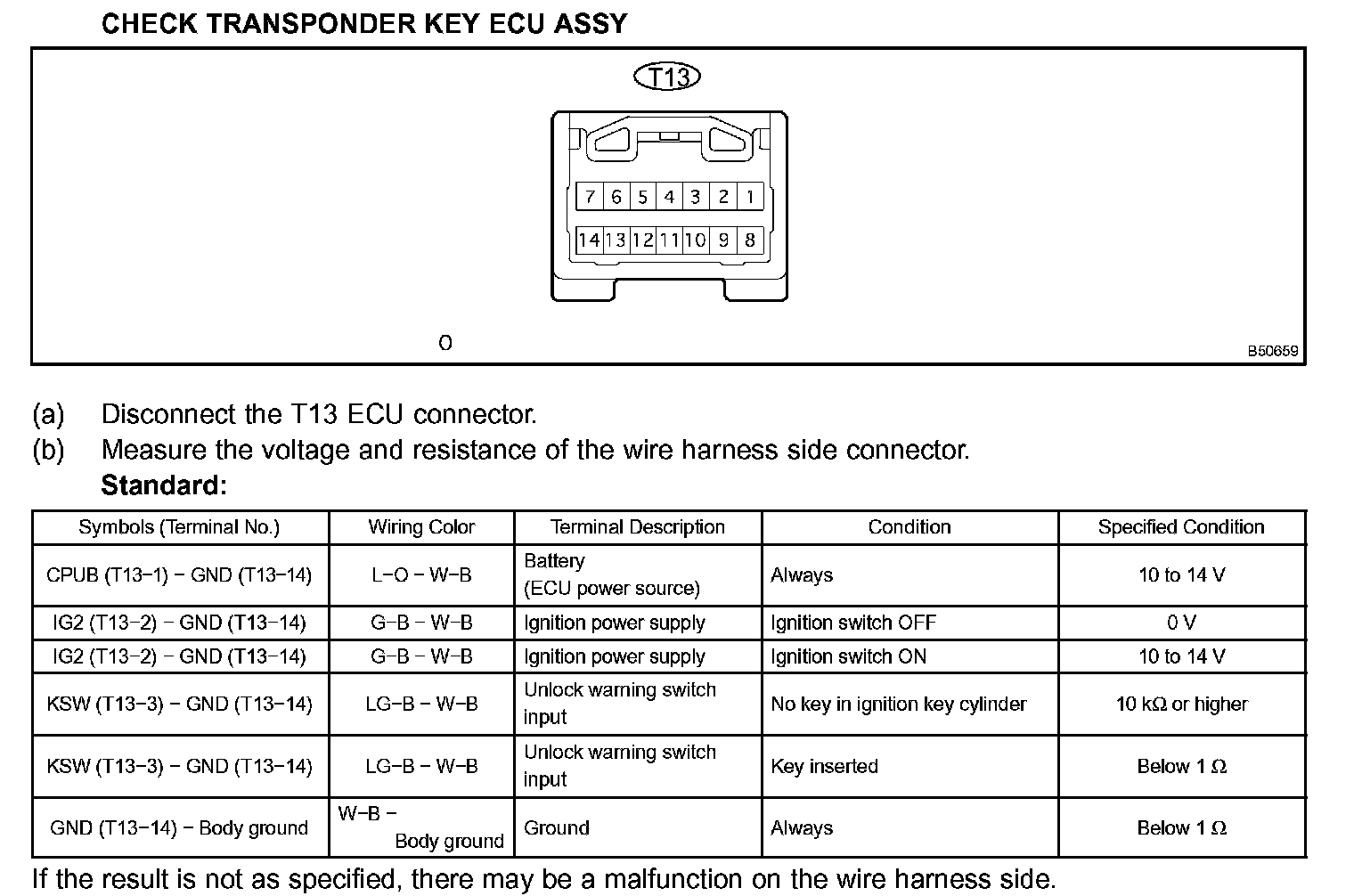

Terminals Of Control Module/Pinouts (Part 8):

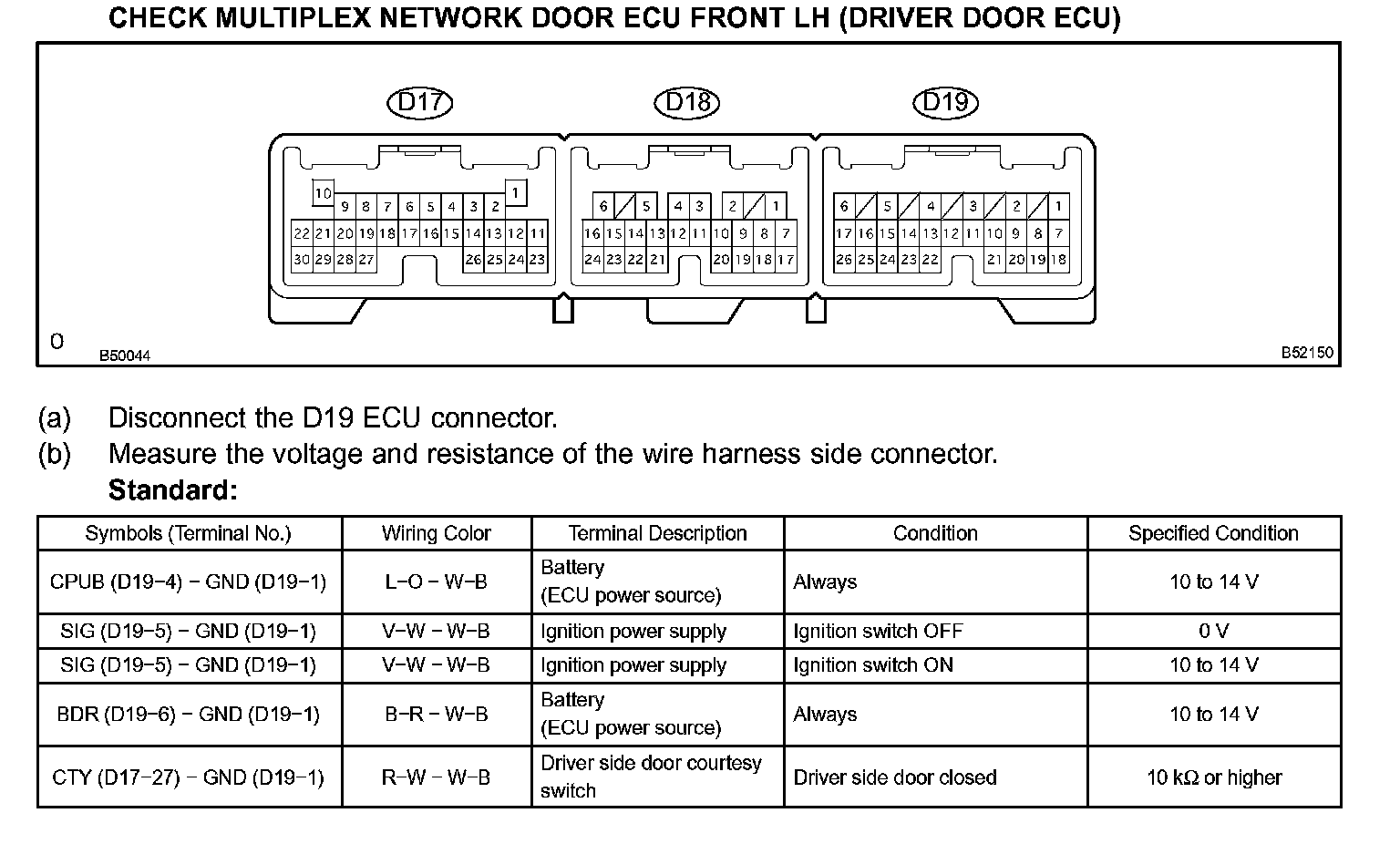

Terminals Of Control Module/Pinouts (Part 9):

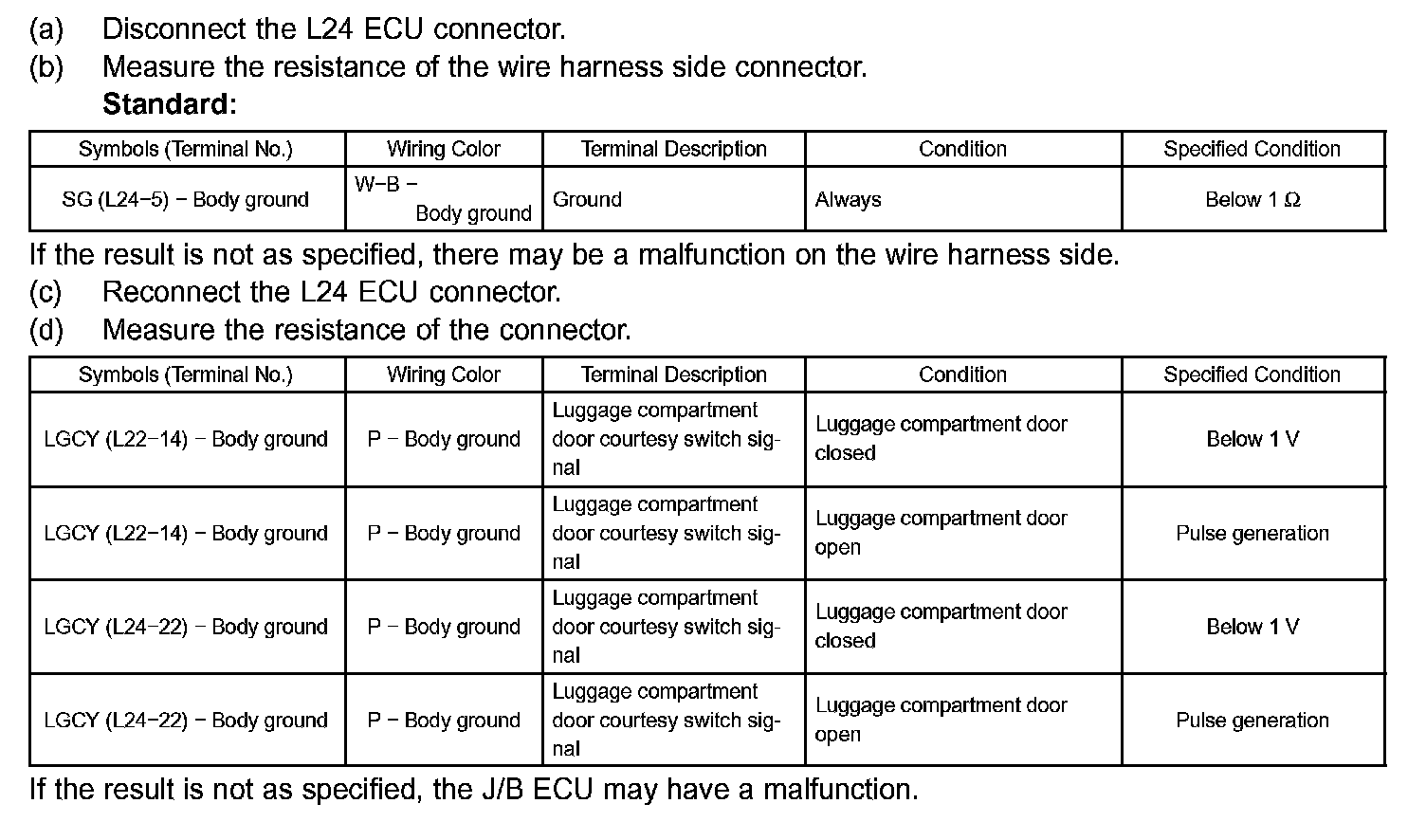

Terminals Of Control Module/Pinouts (Part 11):





Terminals Of Control Module/Pinouts (Part 14):



Terminals Of Control Module/Pinouts (Part 2):
