Mirror Retract Switch Circuit

MIRROR RETRACT SWITCH CIRCUIT

CIRCUIT DESCRIPTION

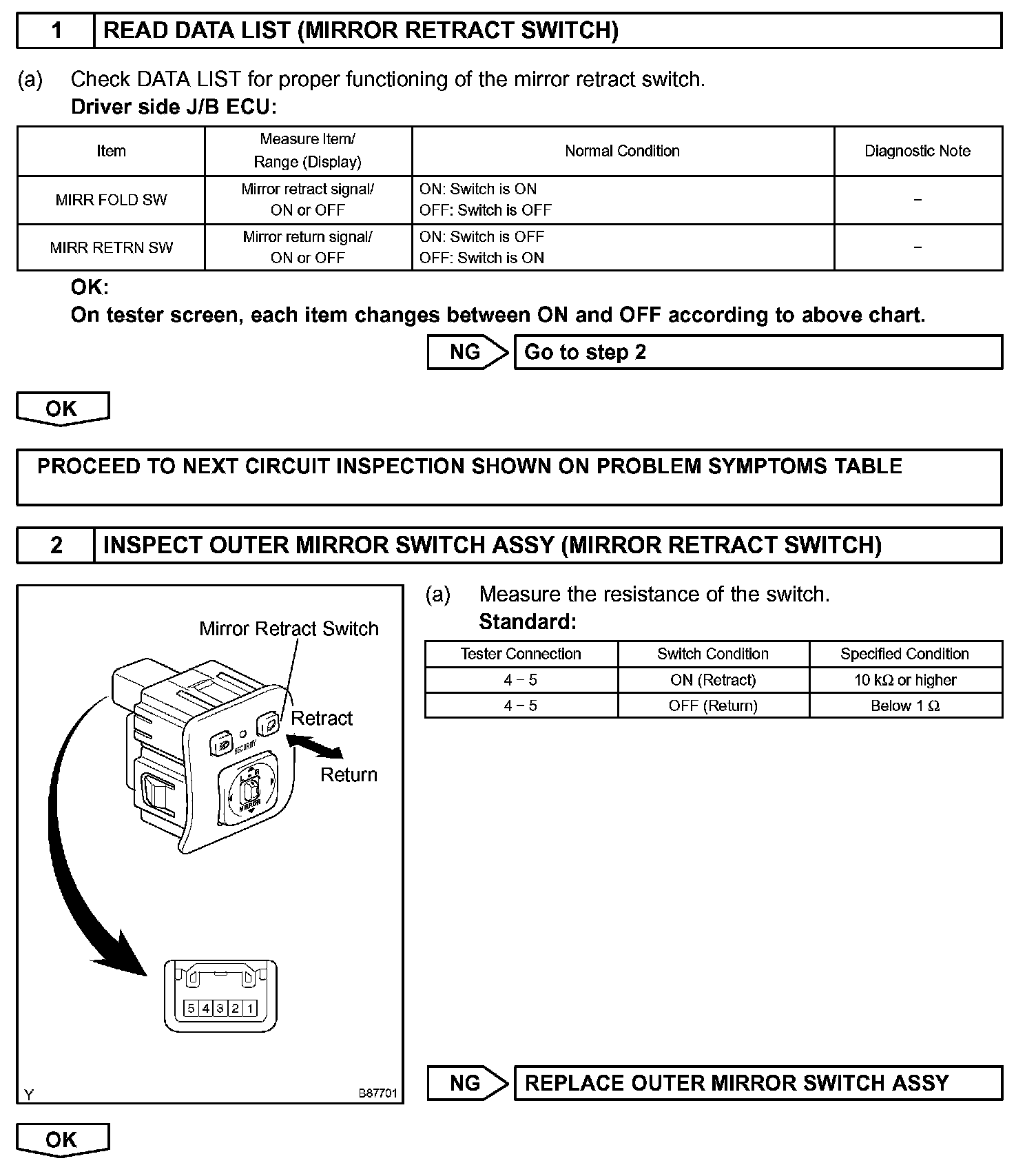

This circuit detects the conditions of the mirror retract switch.
The operating condition of the mirror retract switch is input by the driver side J/B ECU and the input signals are sent to the multiplex network door ECU front LH or RH (driver or passenger door ECU).
