Brake Warning Indicator: Testing and Inspection

BRAKE WARNING LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The brake warning light illuminates when the brake fluid is insufficient, the parking brake is applied or the EBD is defective.

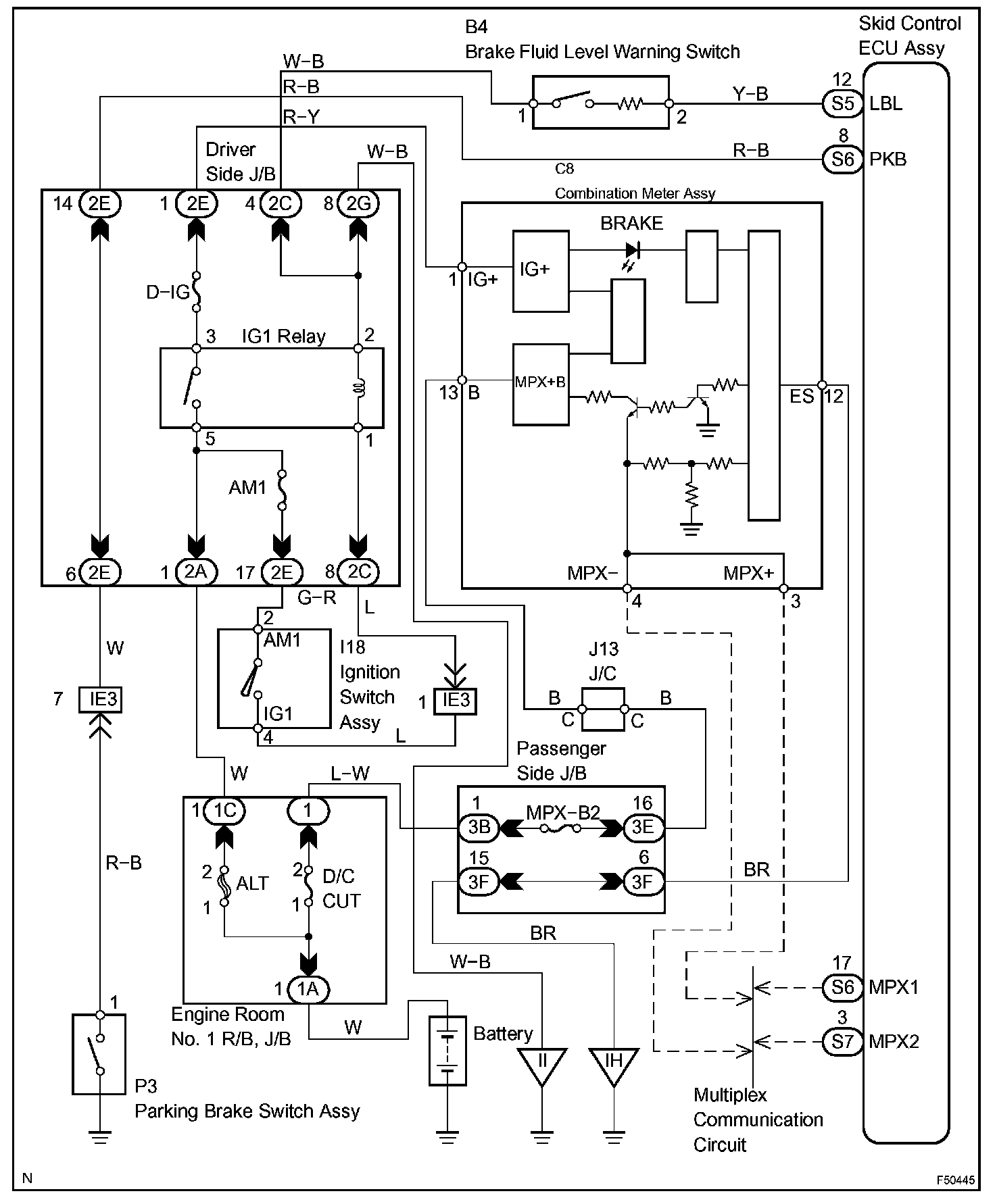

Wiring Diagram:

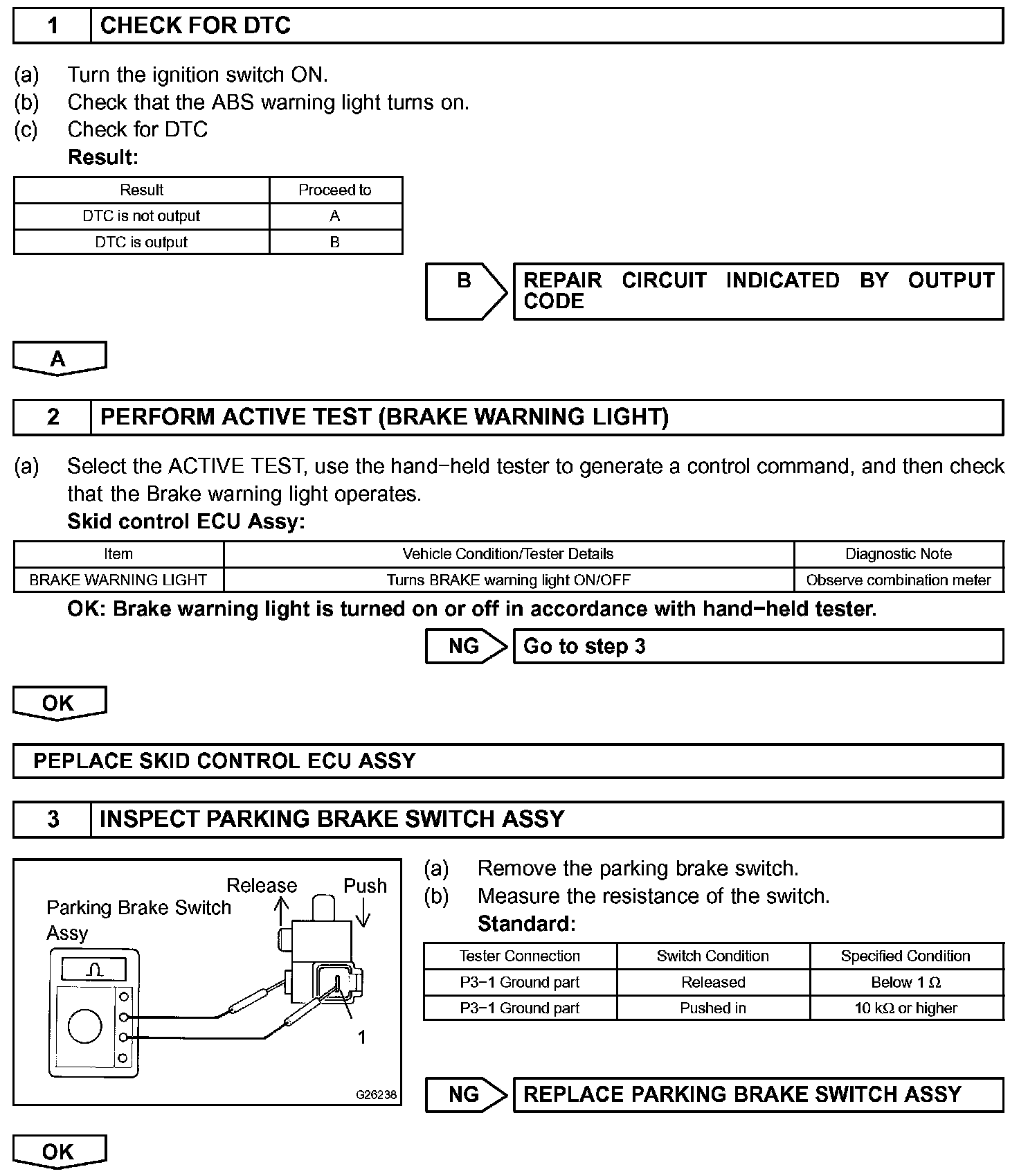

Step 1-3:

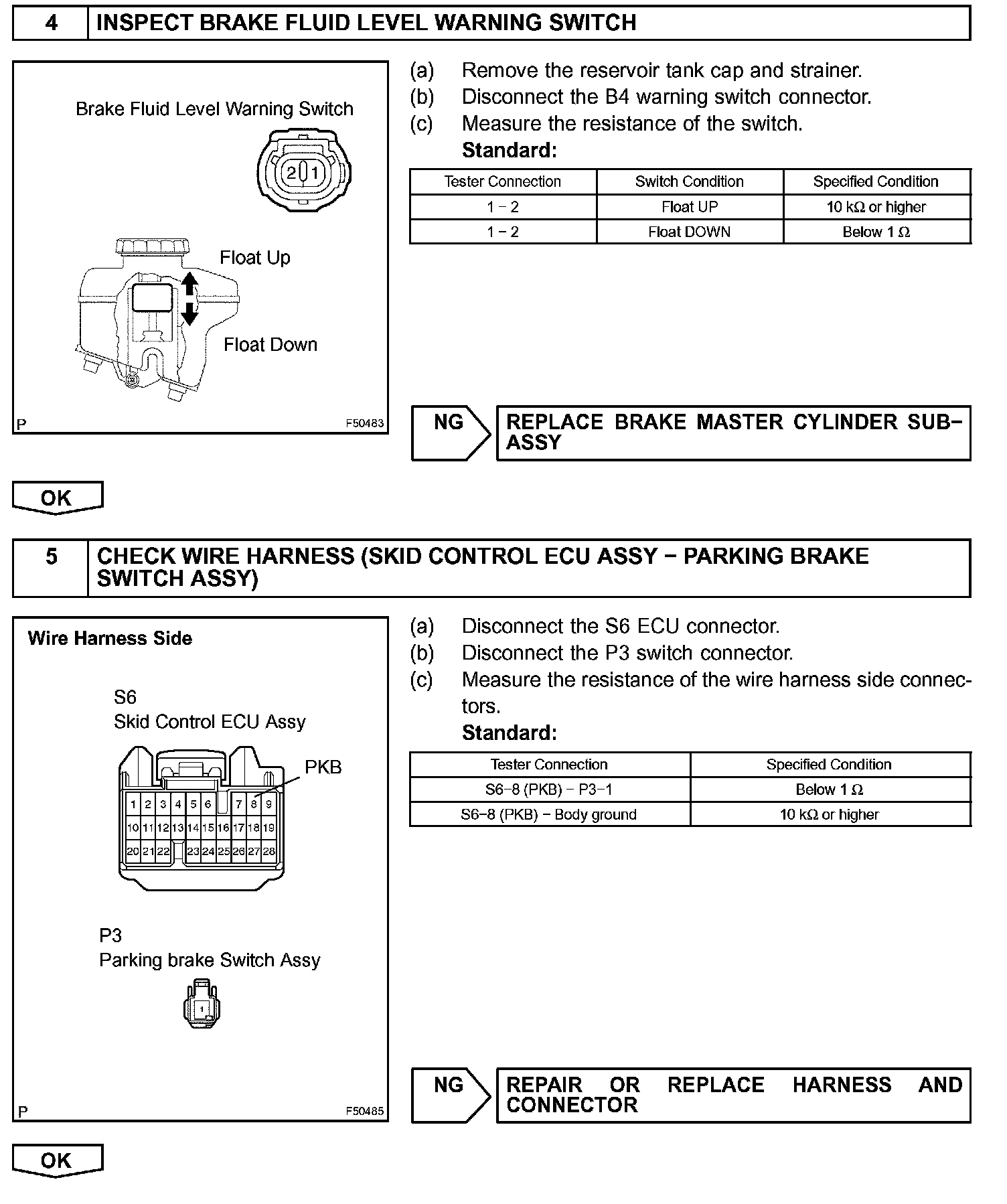

Step 4-5:

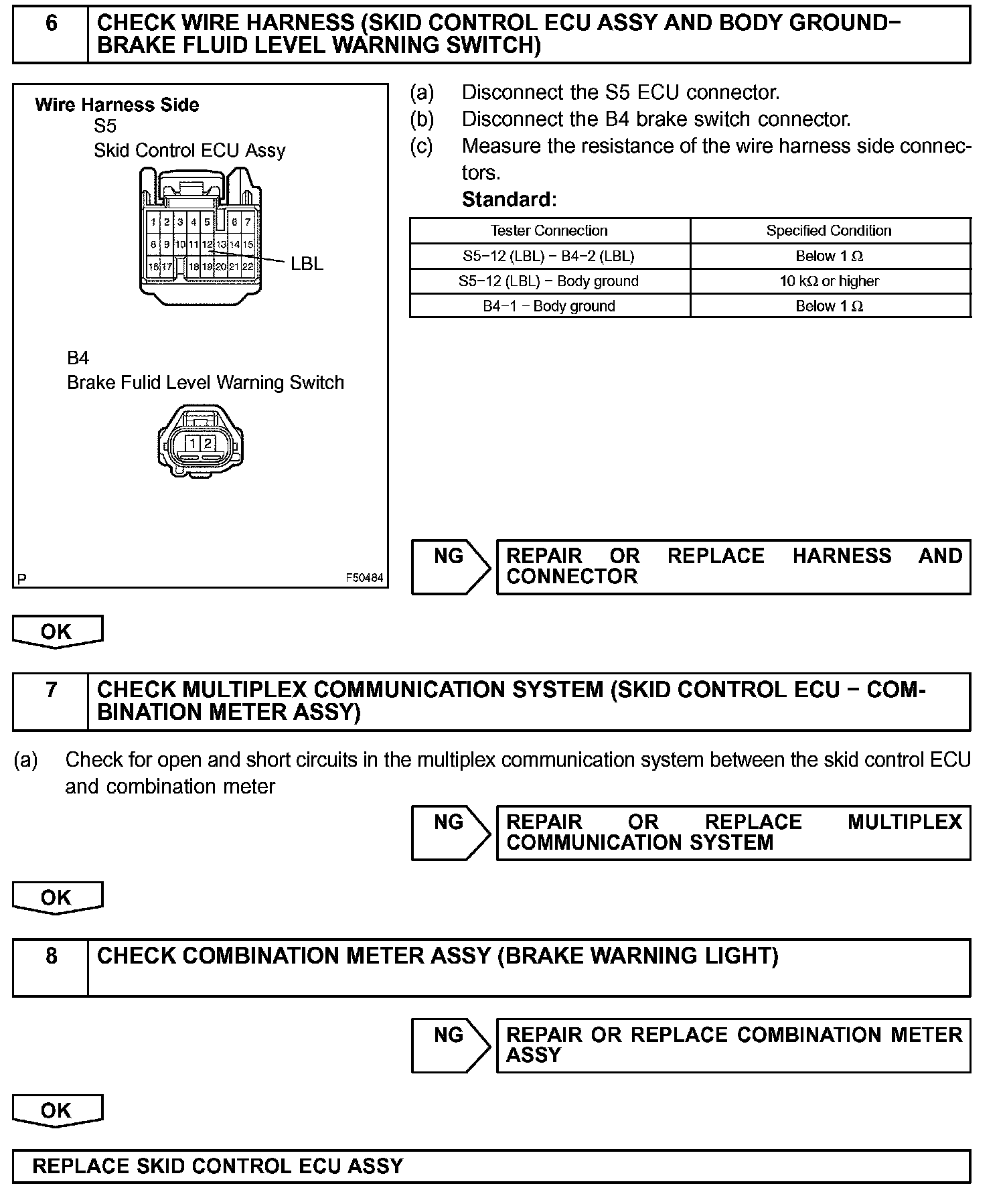

Step 6-8:

INSPECTION PROCEDURE
