Convertible Top

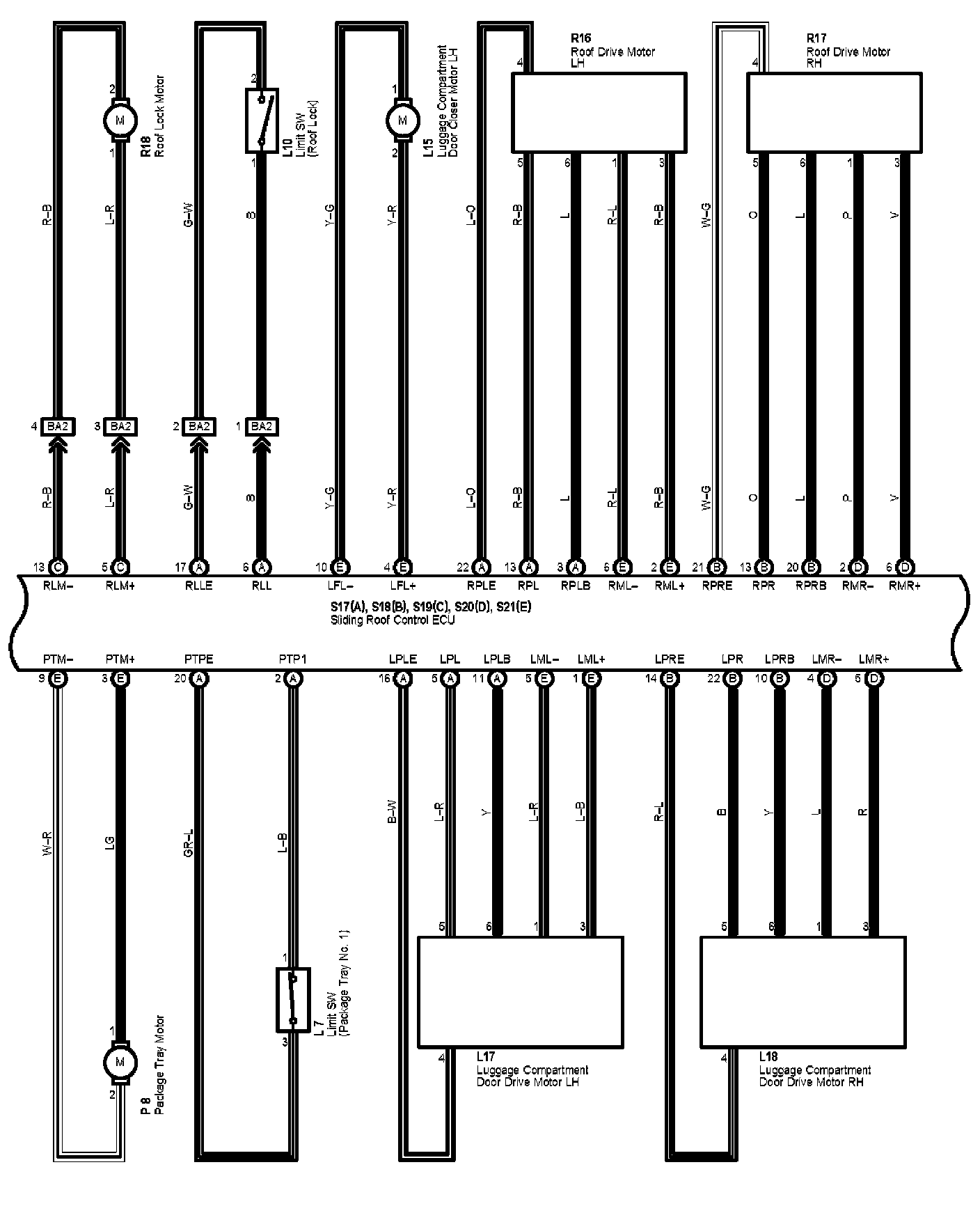

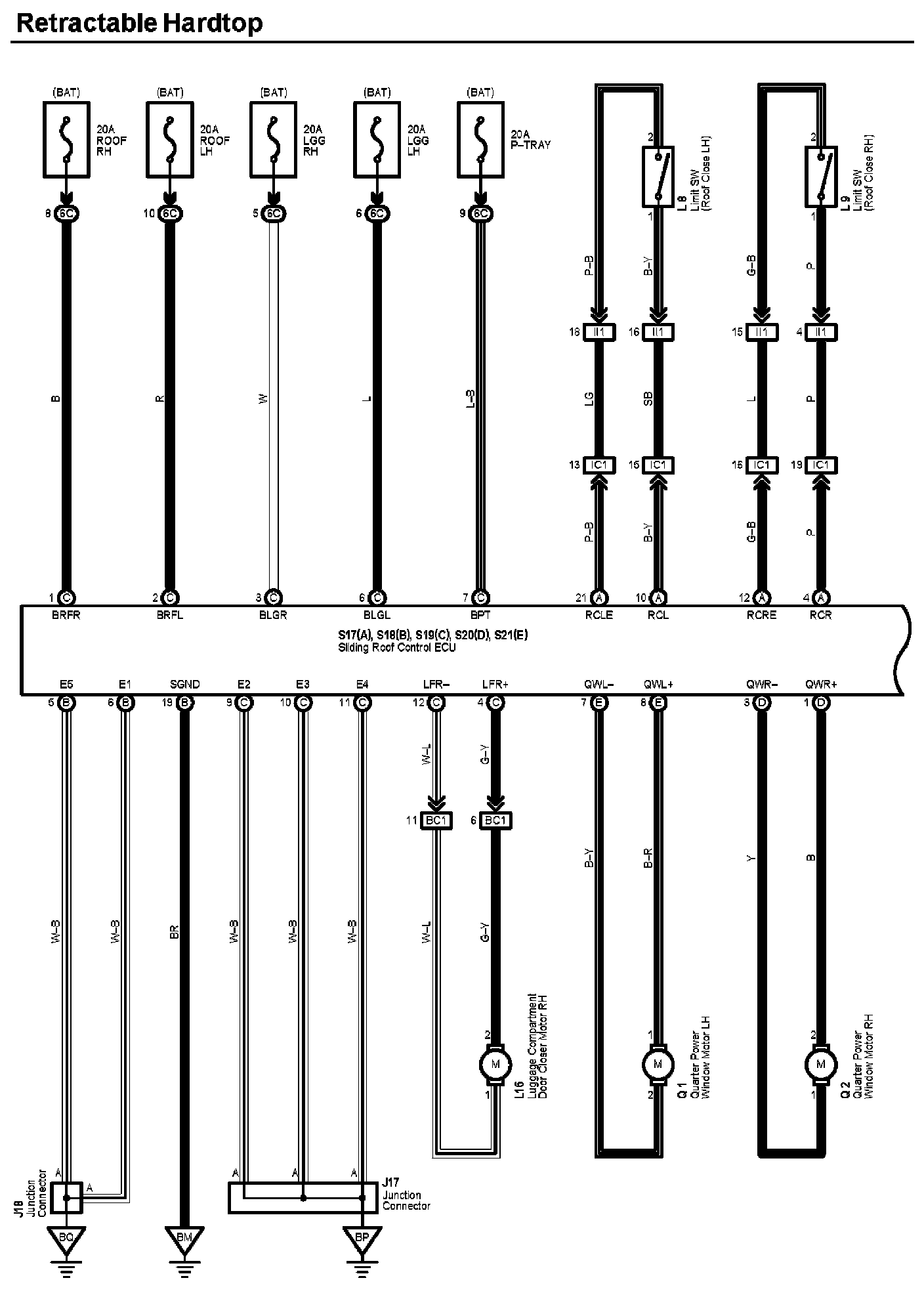

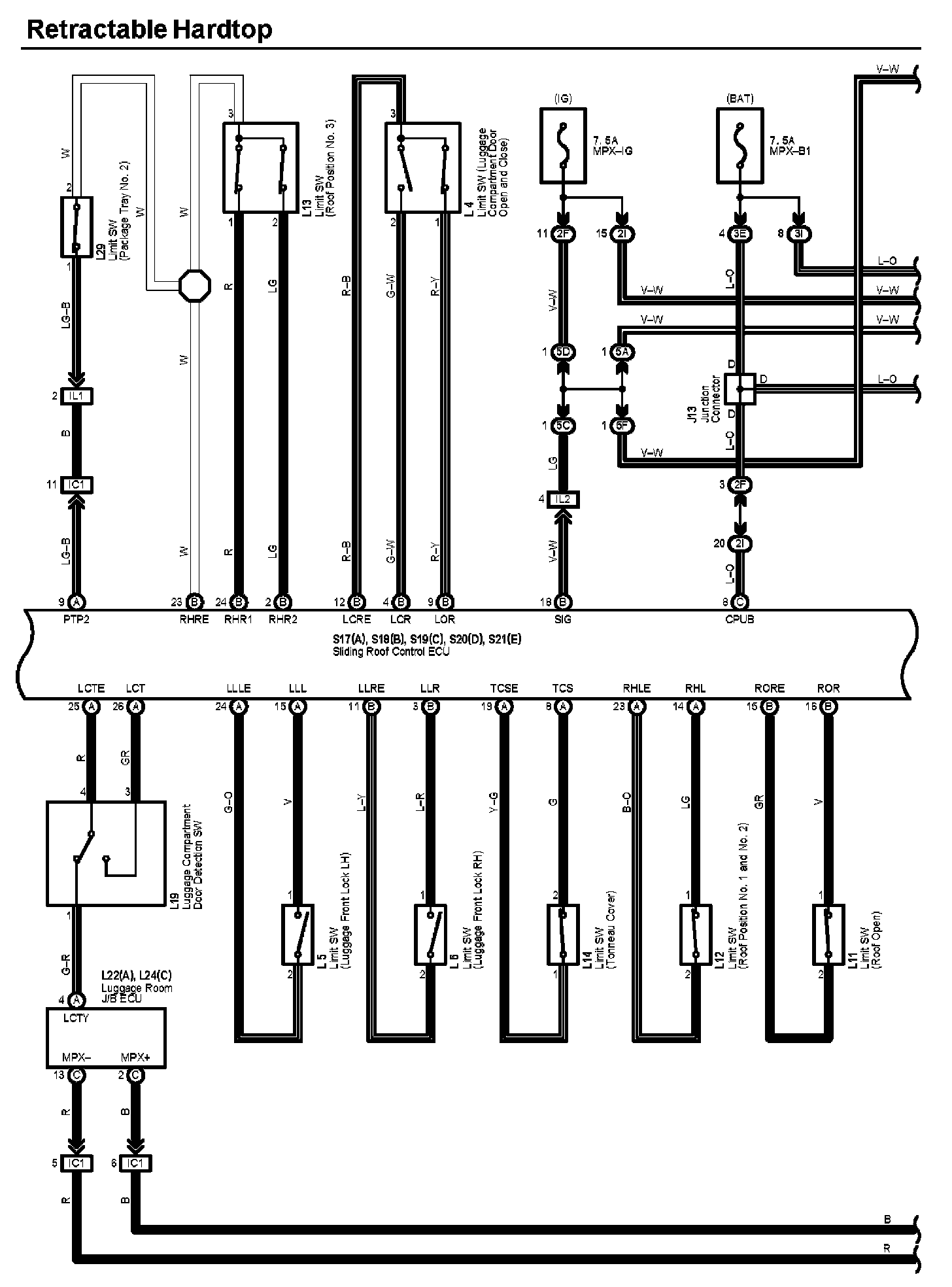

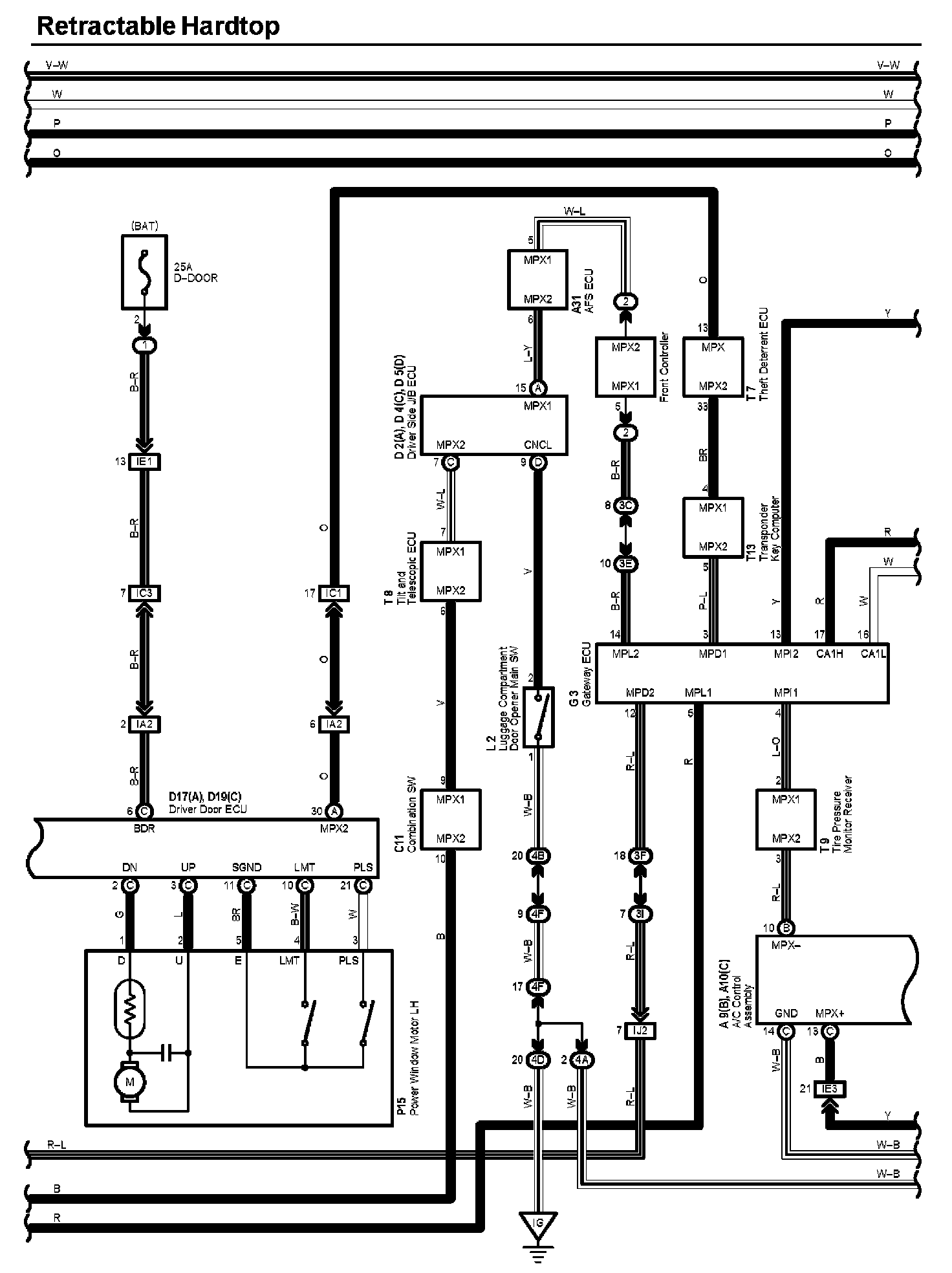

Retractable Hardtop (Part 1):

Retractable Hardtop (Part 2):

Retractable Hardtop (Part 3):

Retractable Hardtop (Part 4):

Retractable Hardtop (Part 5):

Retractable Hardtop (Part 6):

Retractable Hardtop (Part 7):

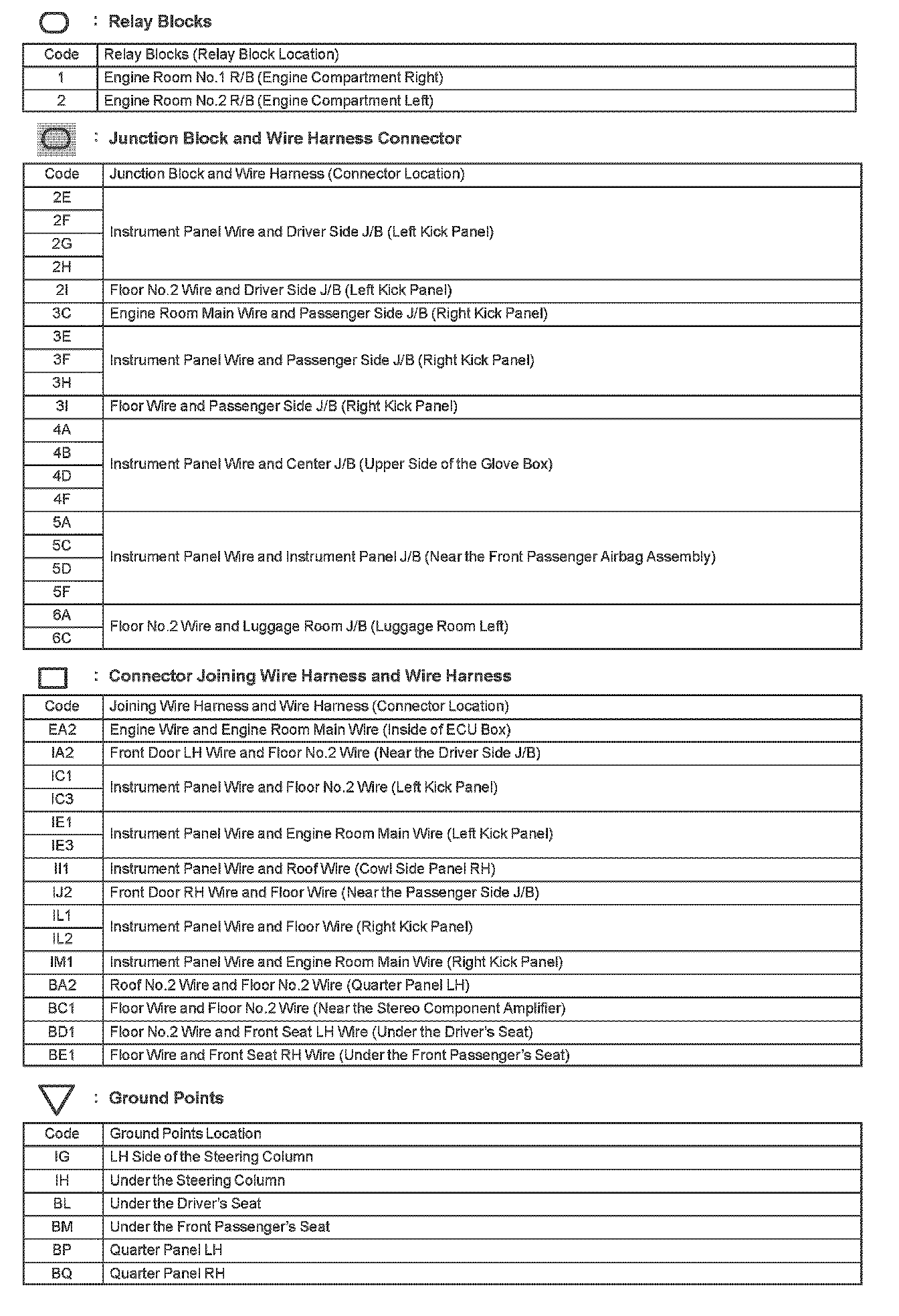

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
