Compressor Magnetic Clutch Circuit

COMPRESSOR CIRCUIT

CIRCUIT DESCRIPTION

The A/C amplifier outputs the magnet clutch ON signal to the ECM by way of MPX line. The ECM receives this signal, and it sends a signal from terminal ACMG to the magnet clutch relay, turning the magnet clutch ON.

Wiring Diagram:

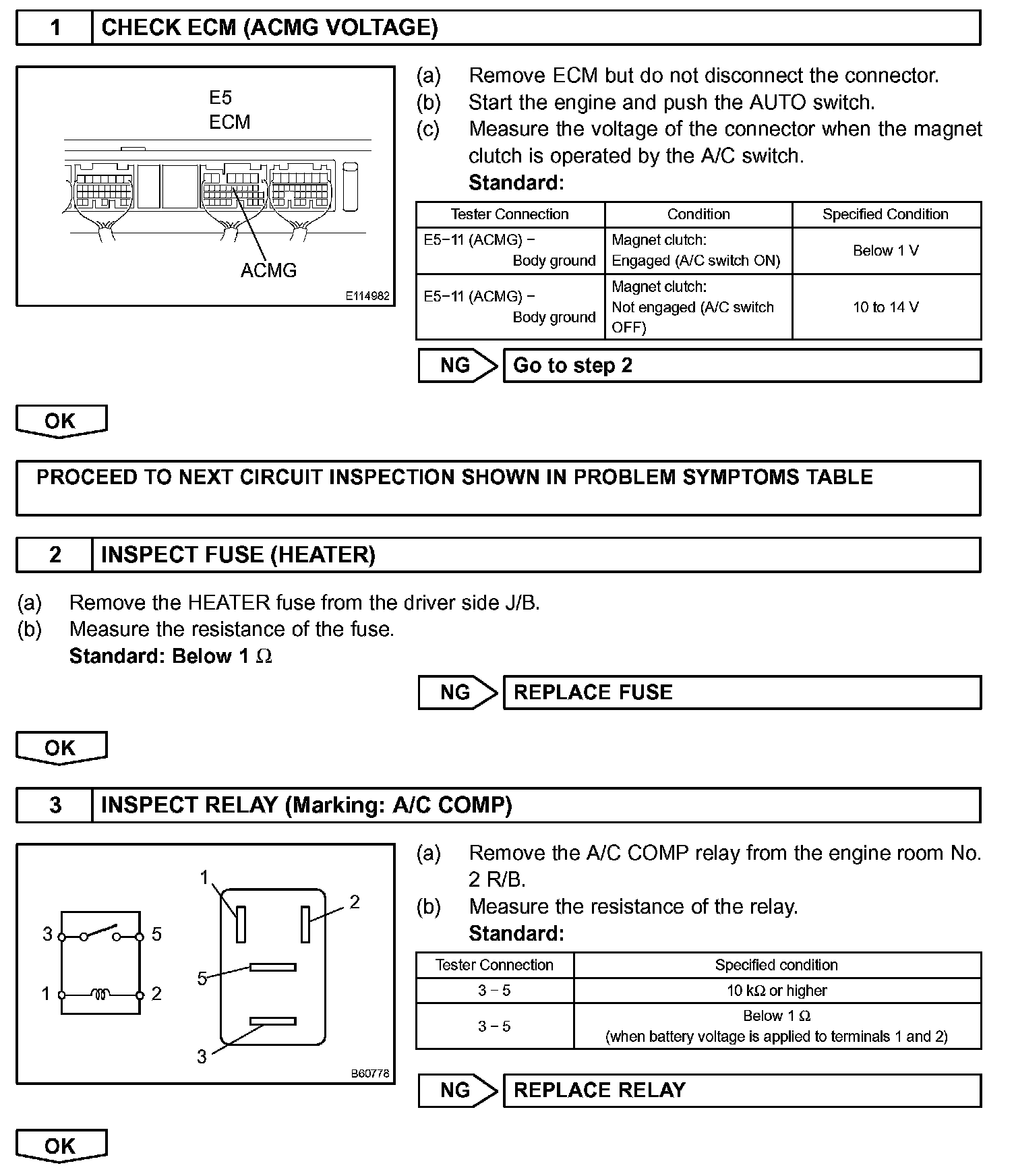

Step 1-3:




Step 4:

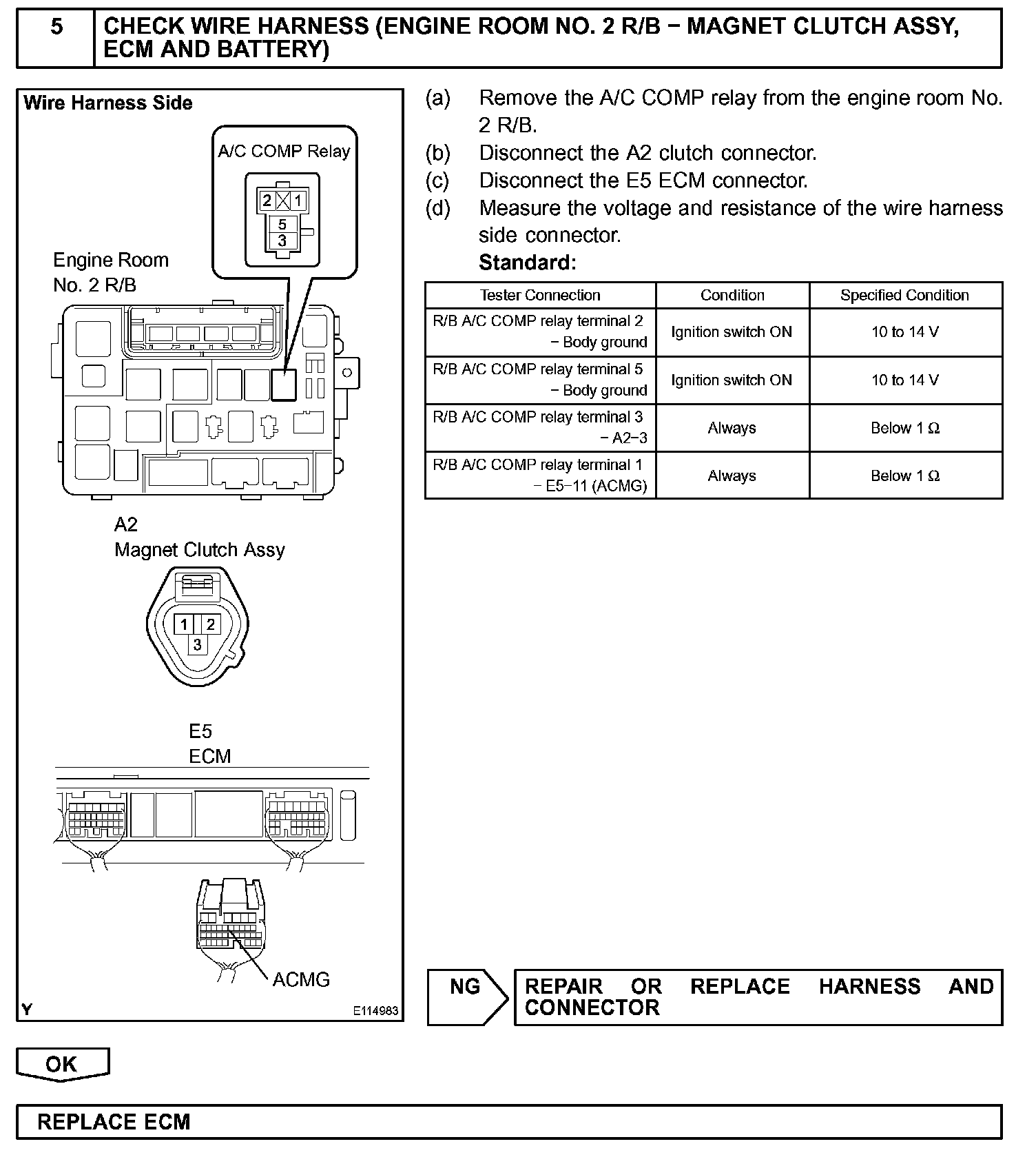

Step 5:




INSPECTION PROCEDURE
