Buckle Illumination Circuit
BUCKLE ILLUMINATION CIRCUITCIRCUIT DESCRIPTION
When the courtesy signal is received from the door ECU, the driver side J/B illuminates the buckle lamp on the opened door side.
Wiring Diagram:

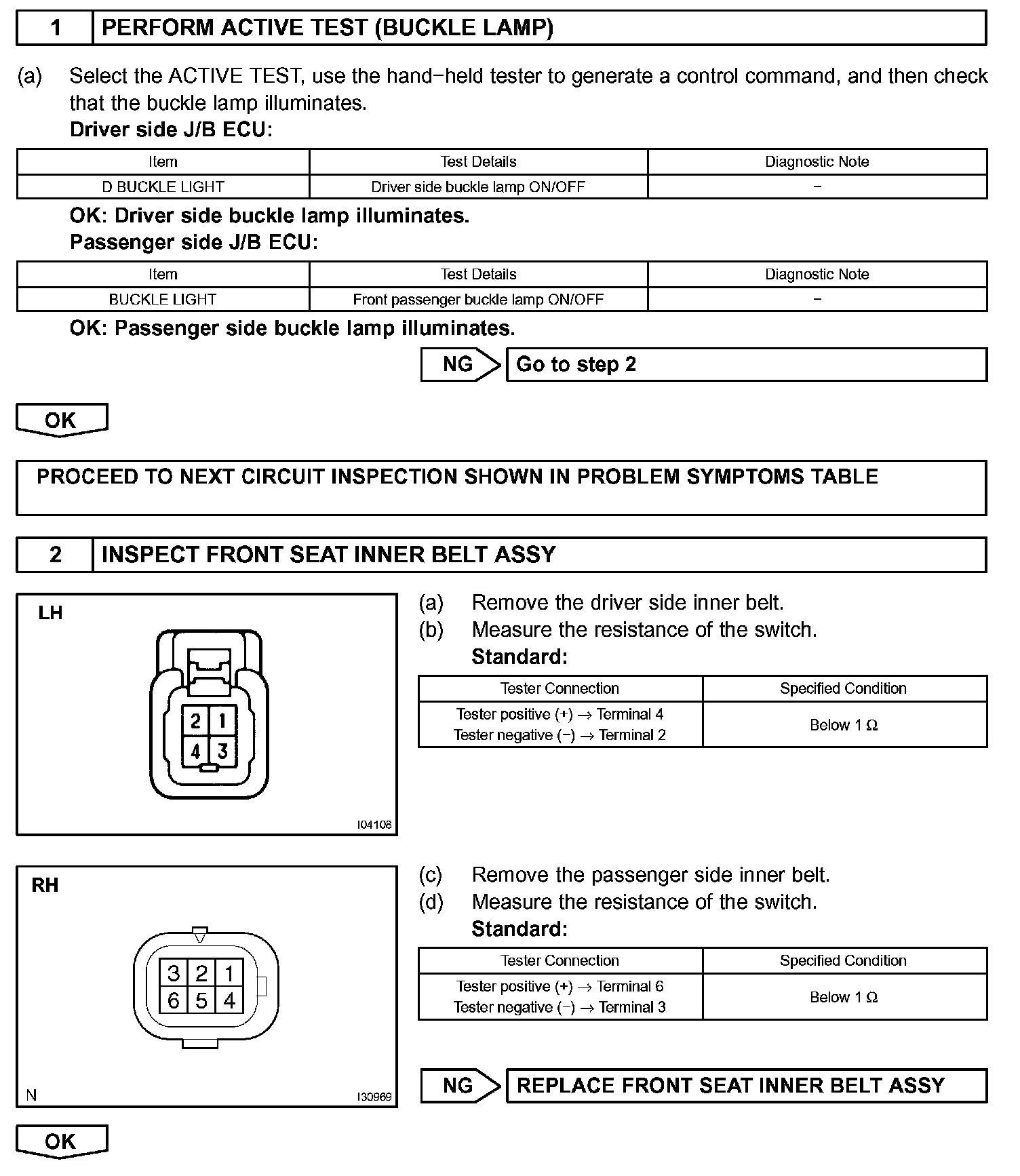

Step 1-2:

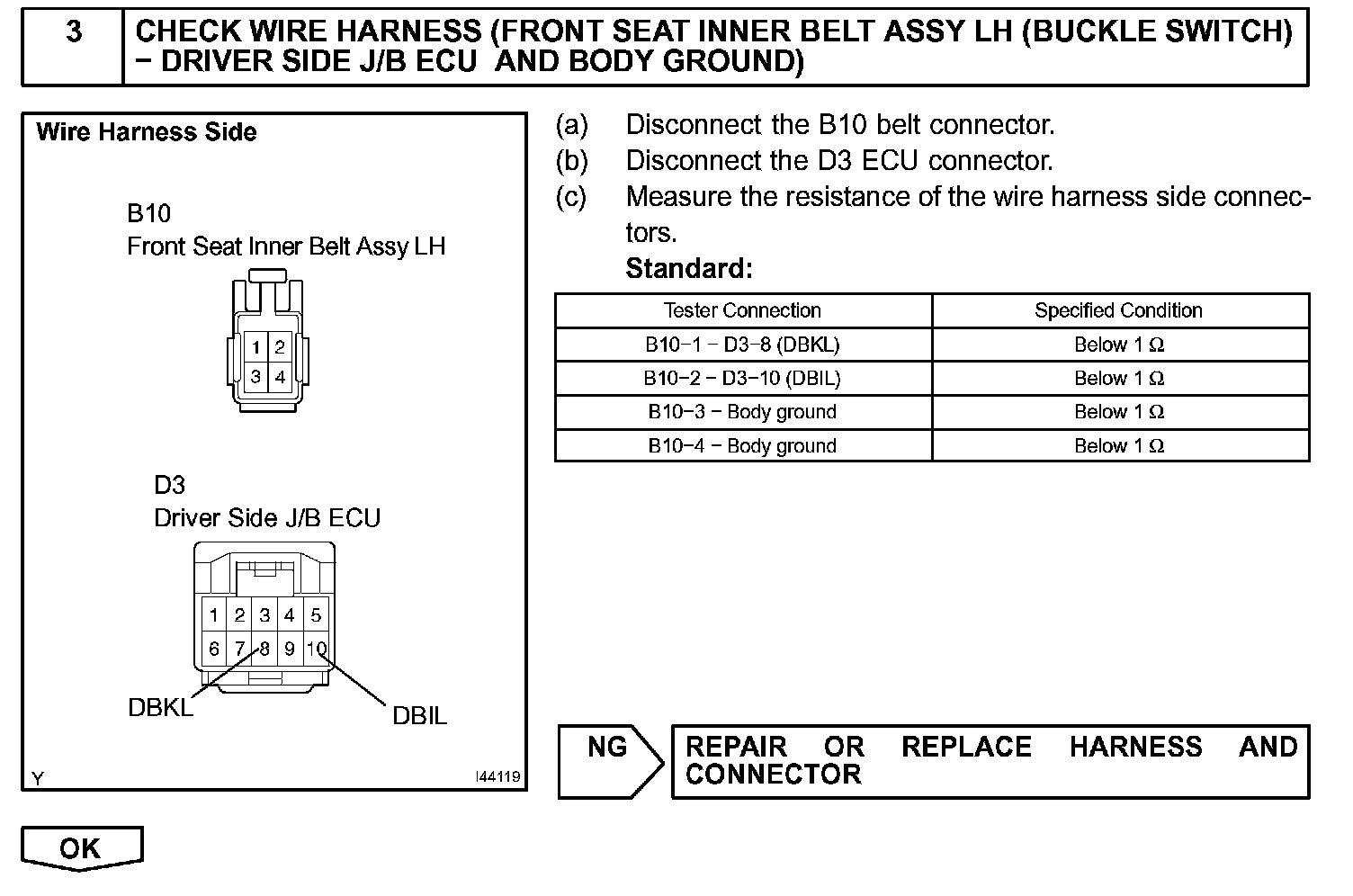

Step 3:

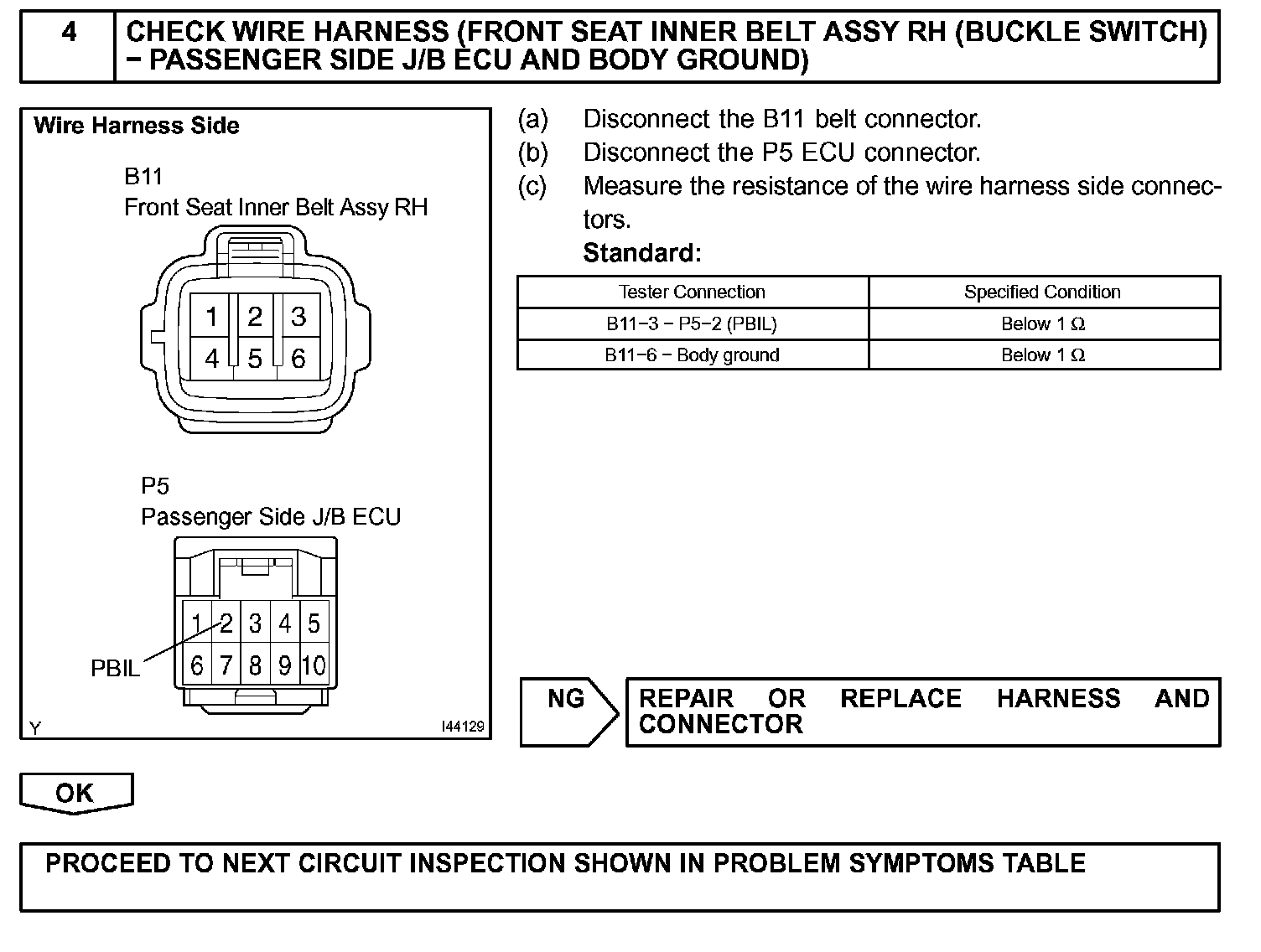

Step 4:
INSPECTION PROCEDURE
