Front Side Marker Lamp Circuit
FRONT SIDE MARKER LAMP CIRCUITCIRCUIT DESCRIPTION
The front lamp ECU receives the taillamp switch information from the combination switch, and illuminates the side marker lamp.

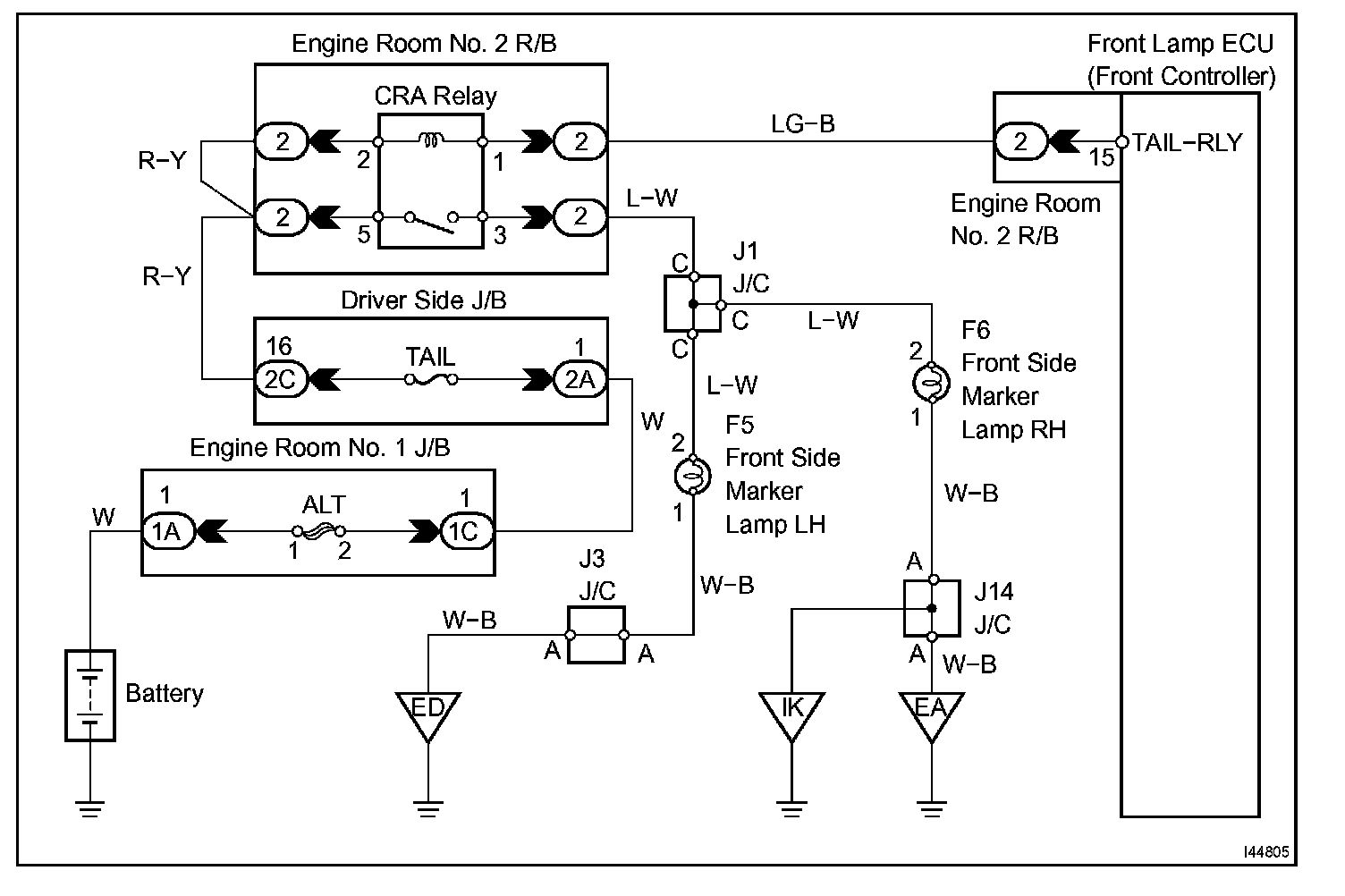

Wiring Diagram:

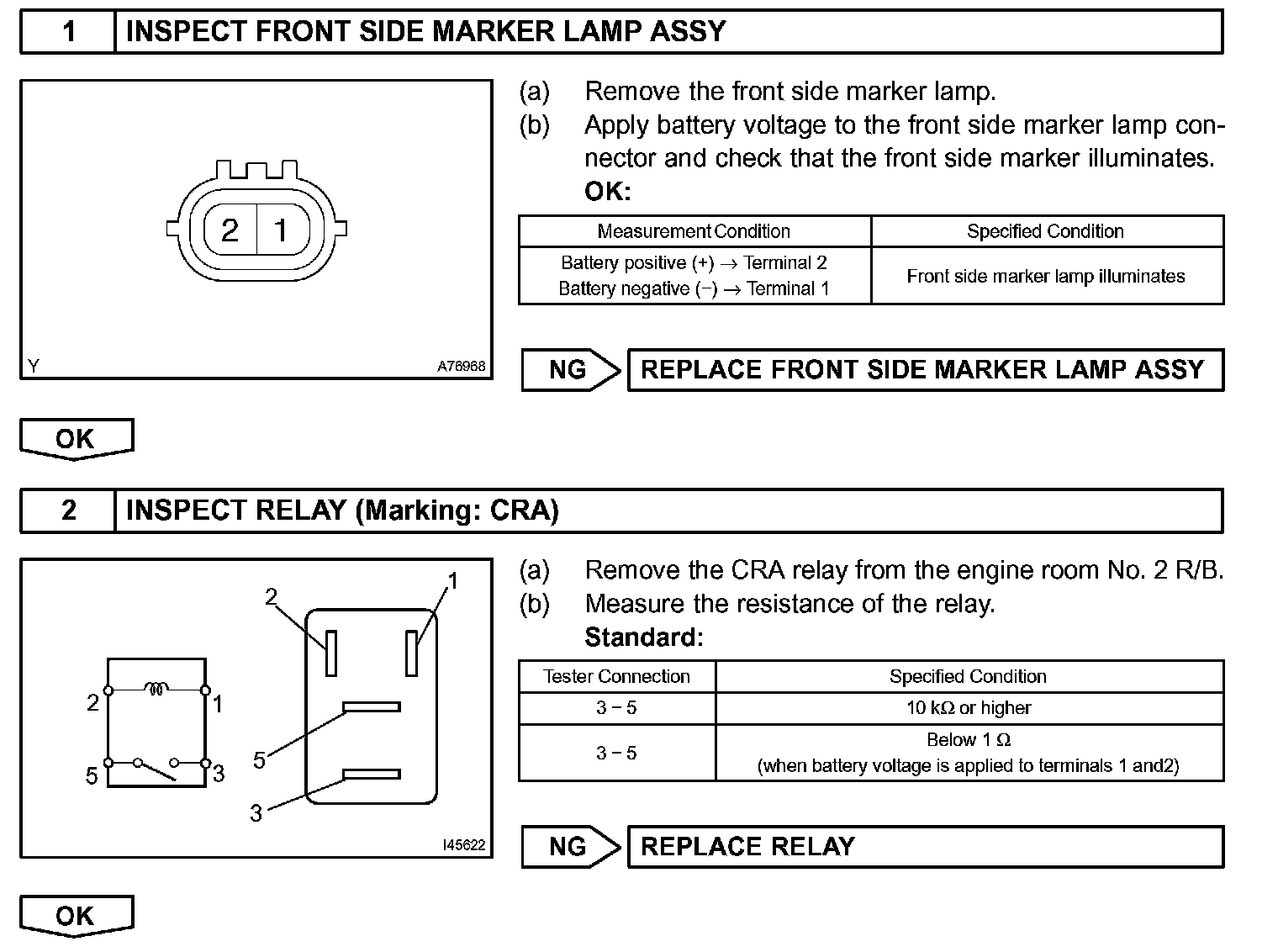

Step 1-2:

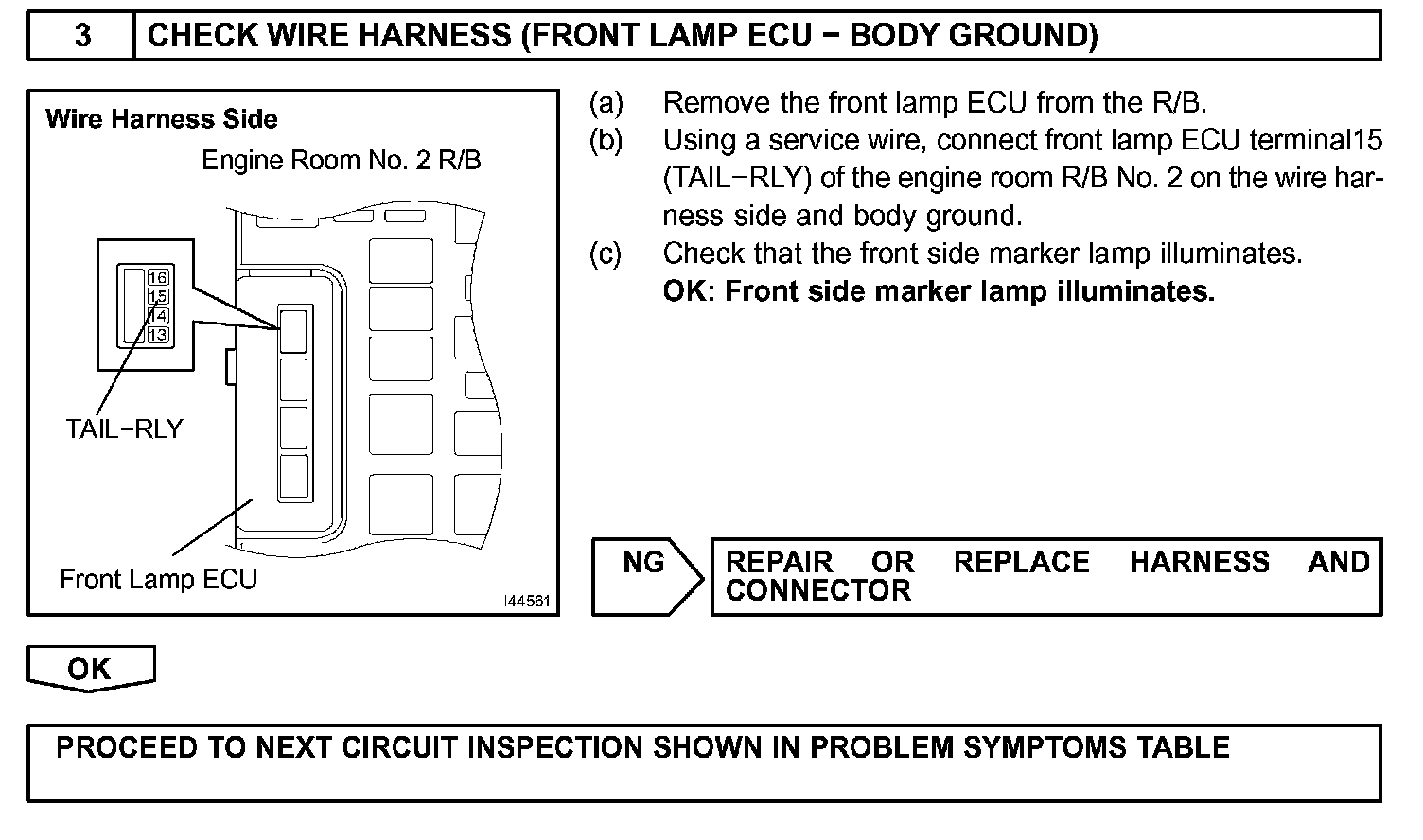

Step 3:
INSPECTION PROCEDURE
