Illumination Circuit

ILLUMINATION CIRCUIT

CIRCUIT DESCRIPTION

When the combination lamp switch signal is received from the front lamp ECU, the driver side J/B ECU turns on switch illumination and combination meter illumination.

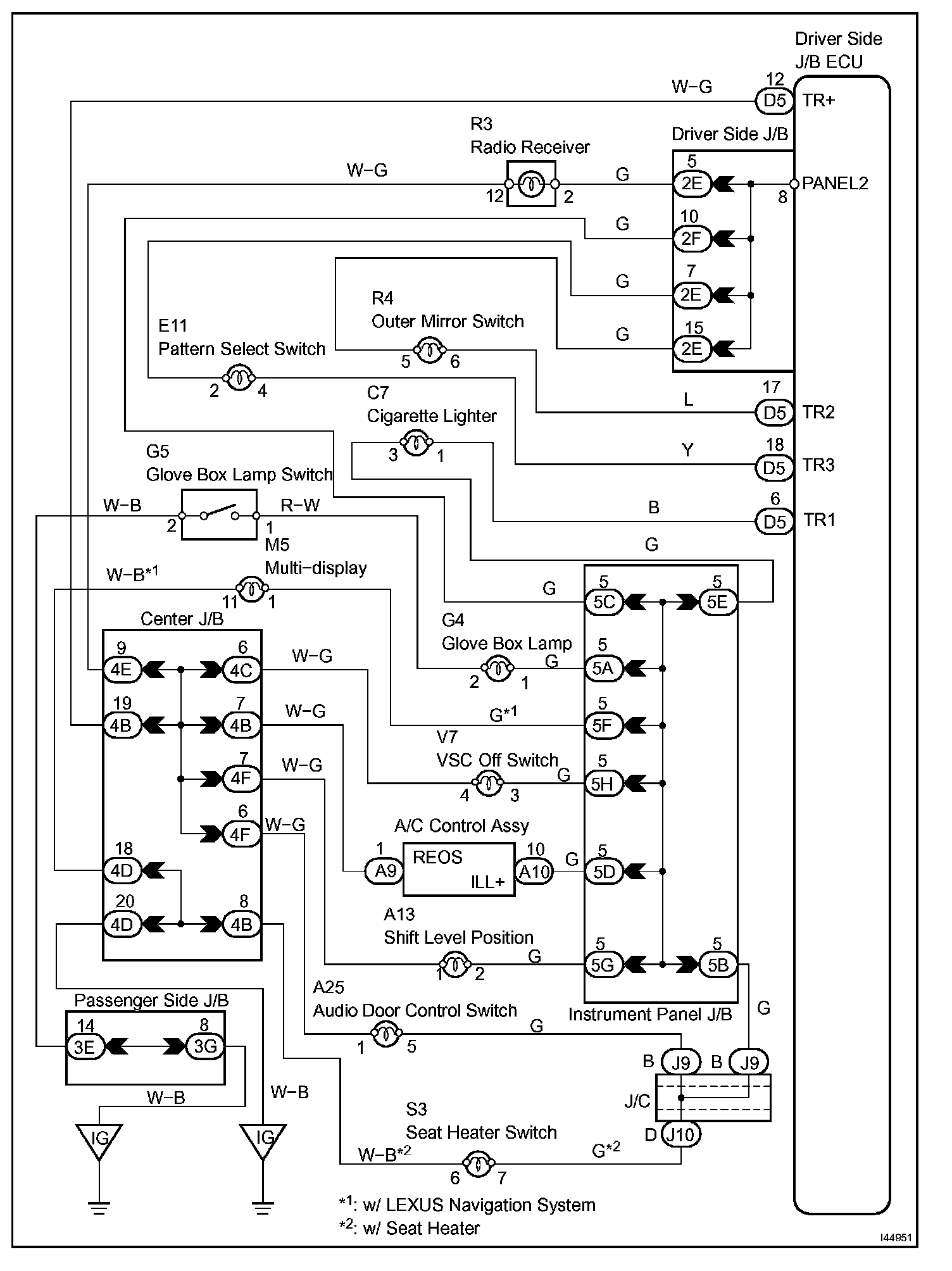

Wiring Diagram:

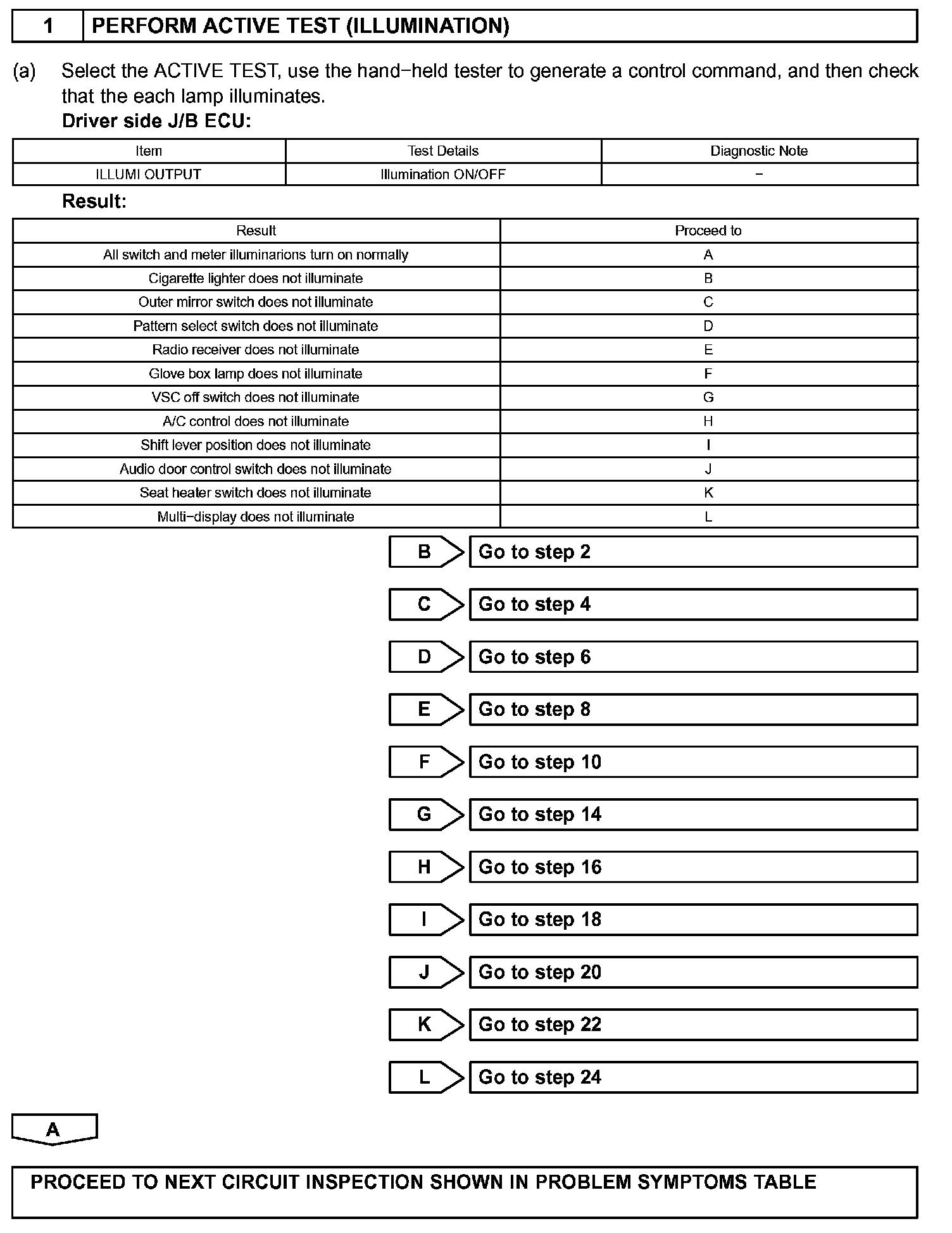

Step 1:

Step 2:

Step 3:

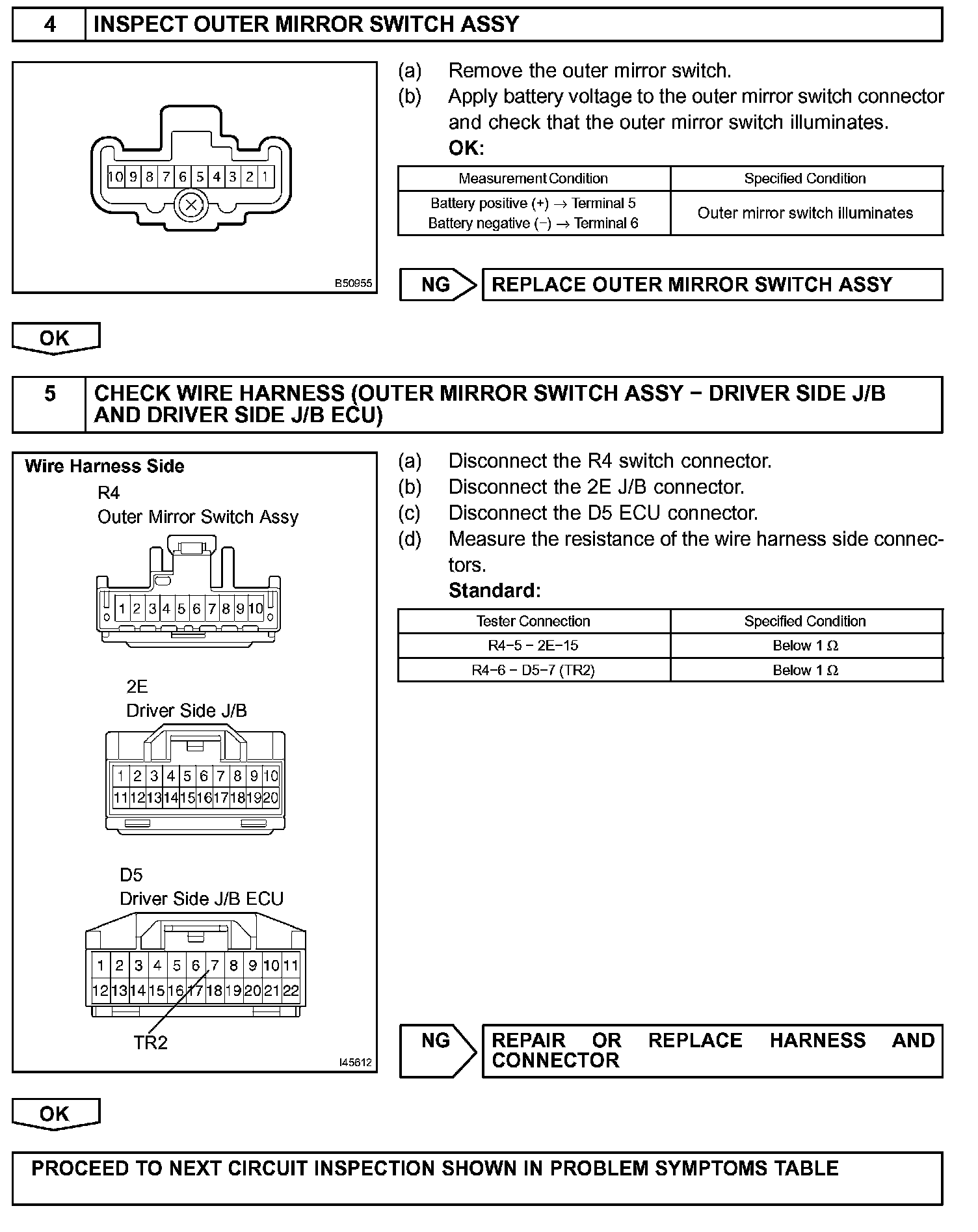

Step 4-5:

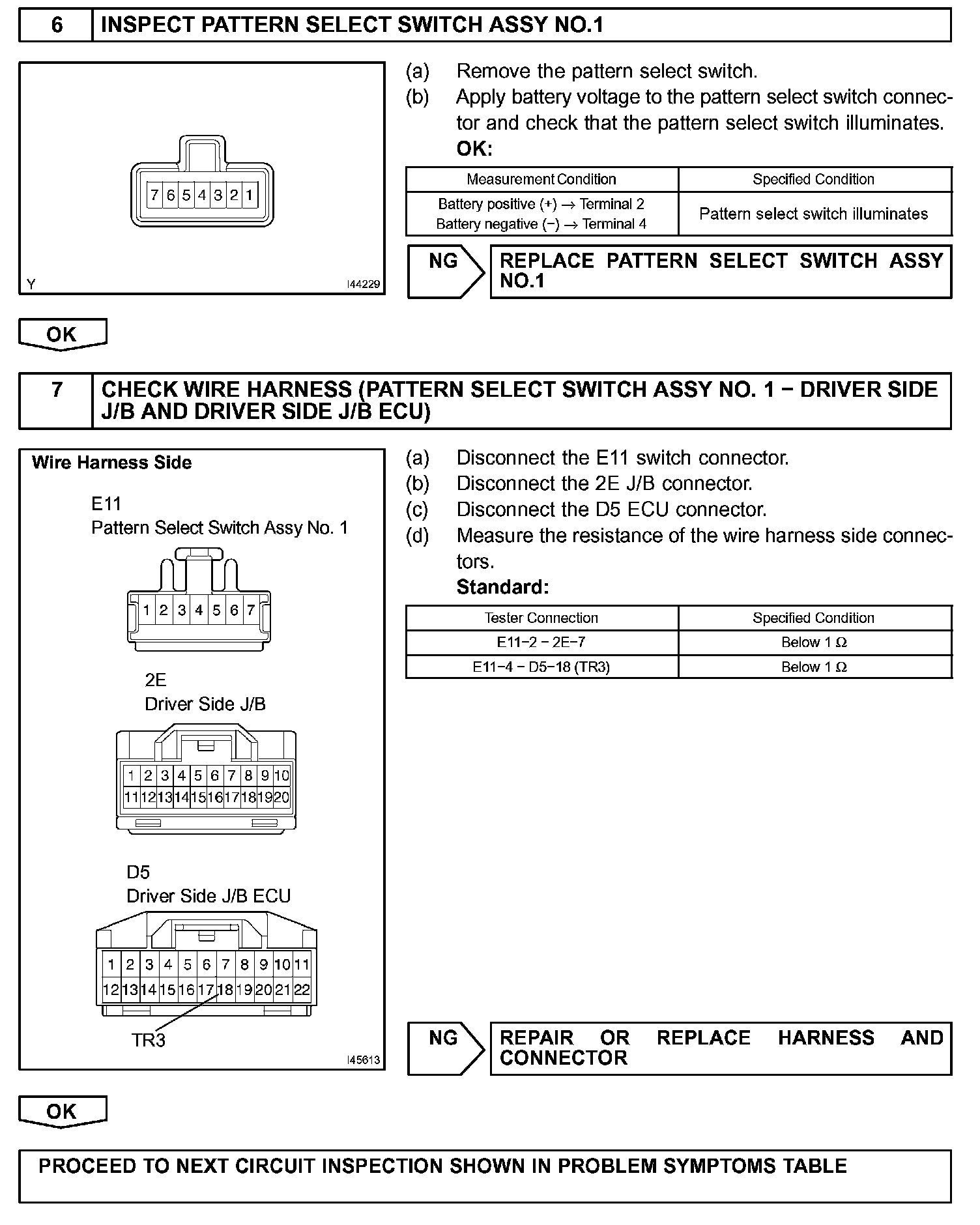

Step 6-7:

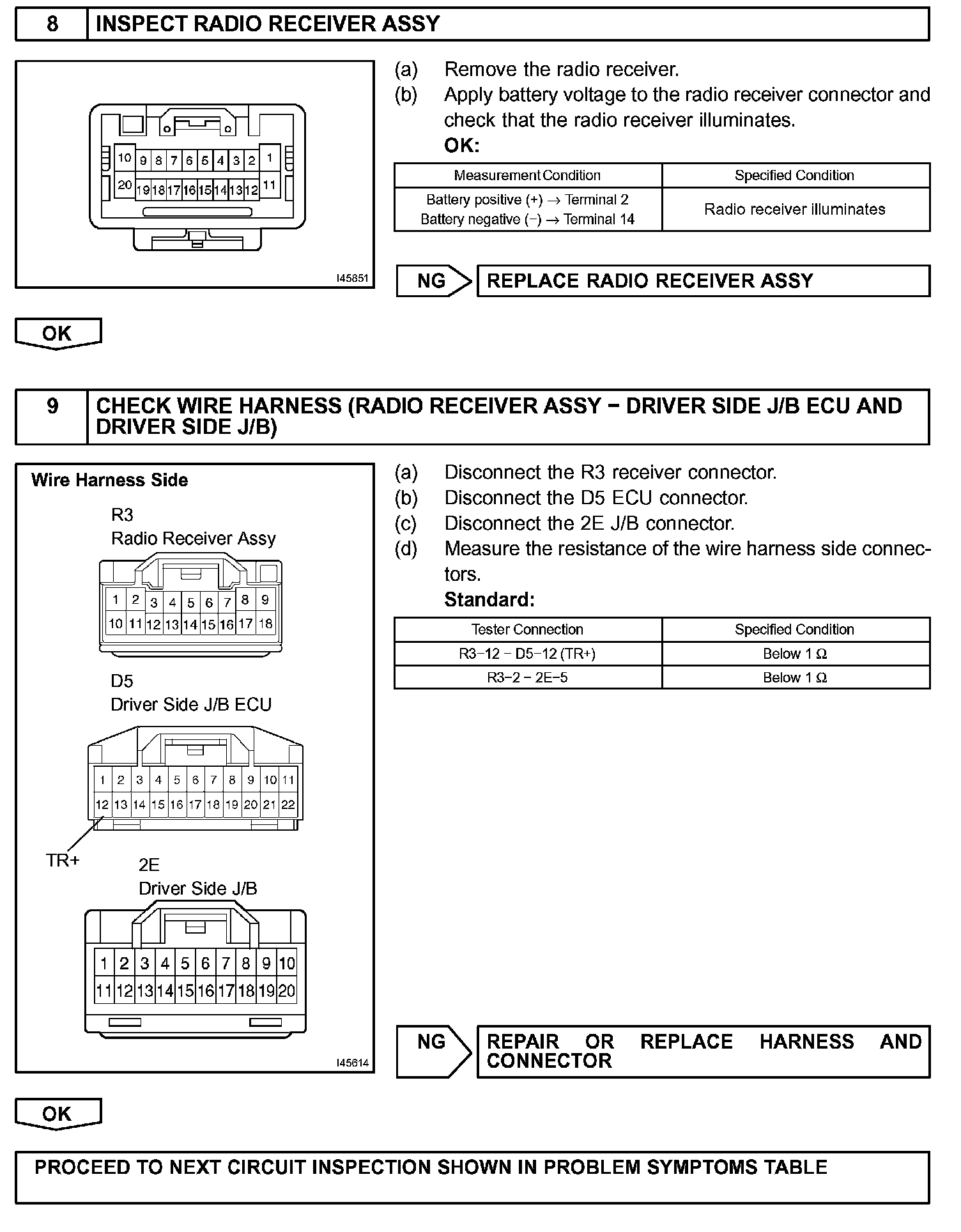

Step 8-9:

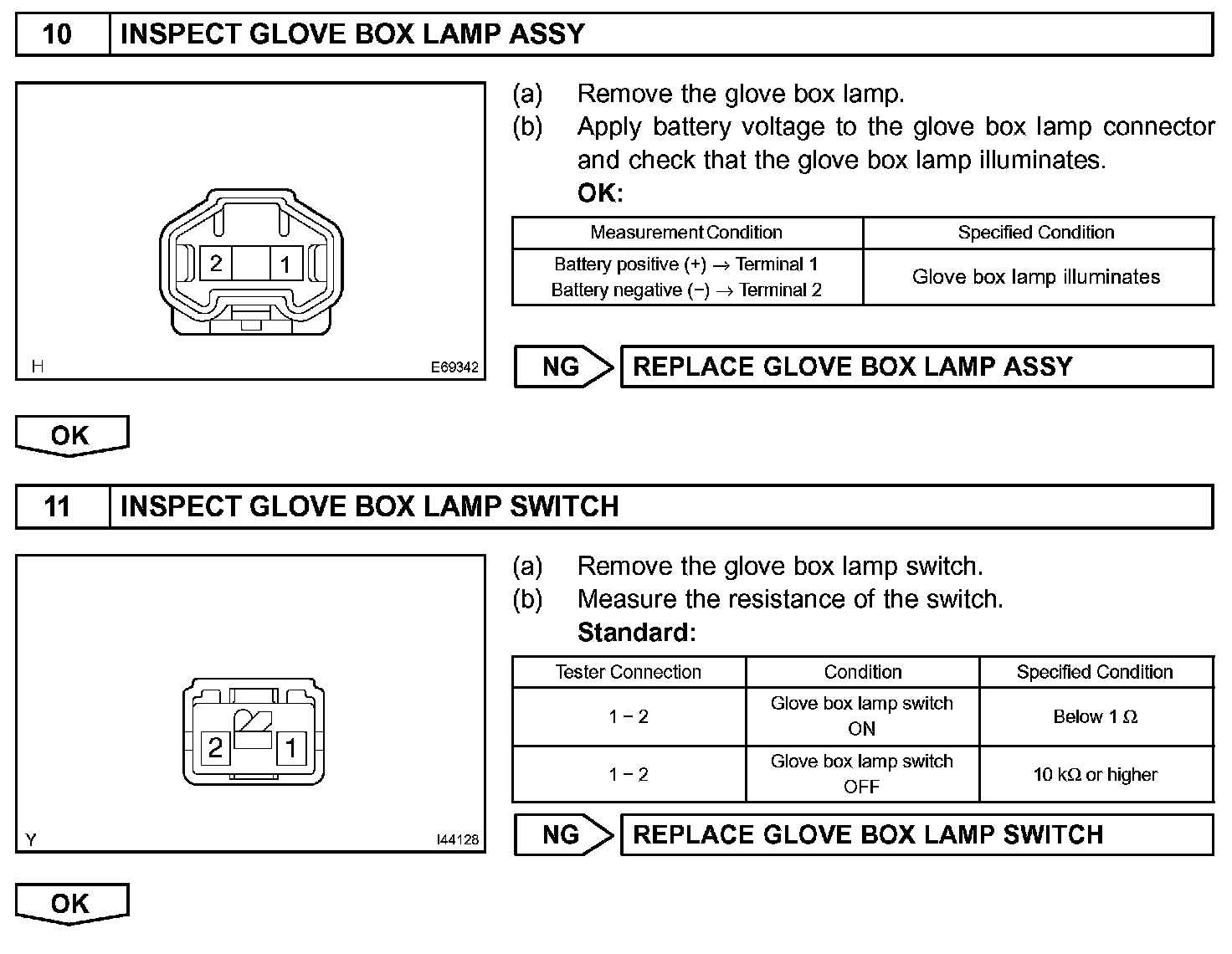

Step 10-11:

Step 12:

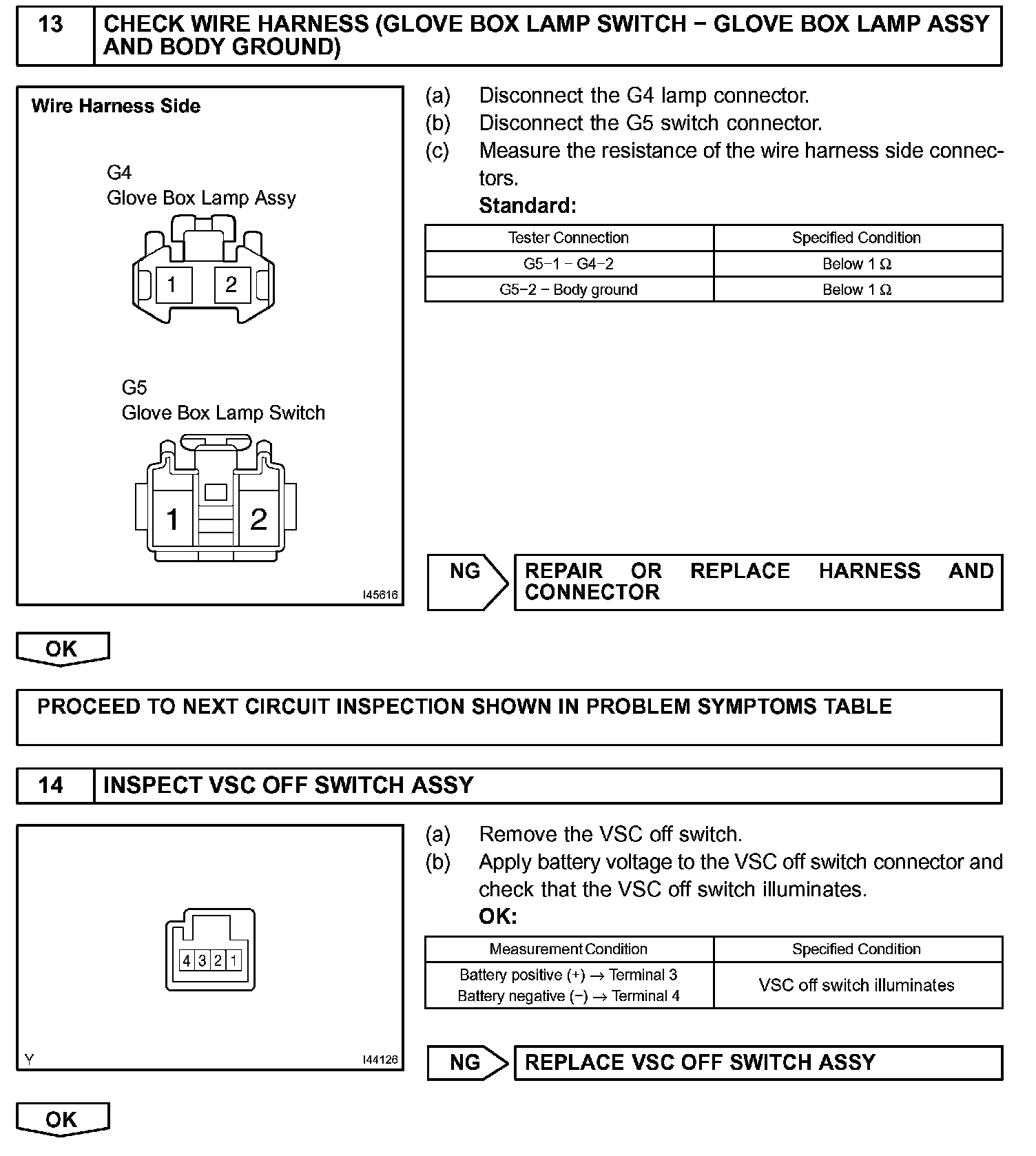

Step 13-14:

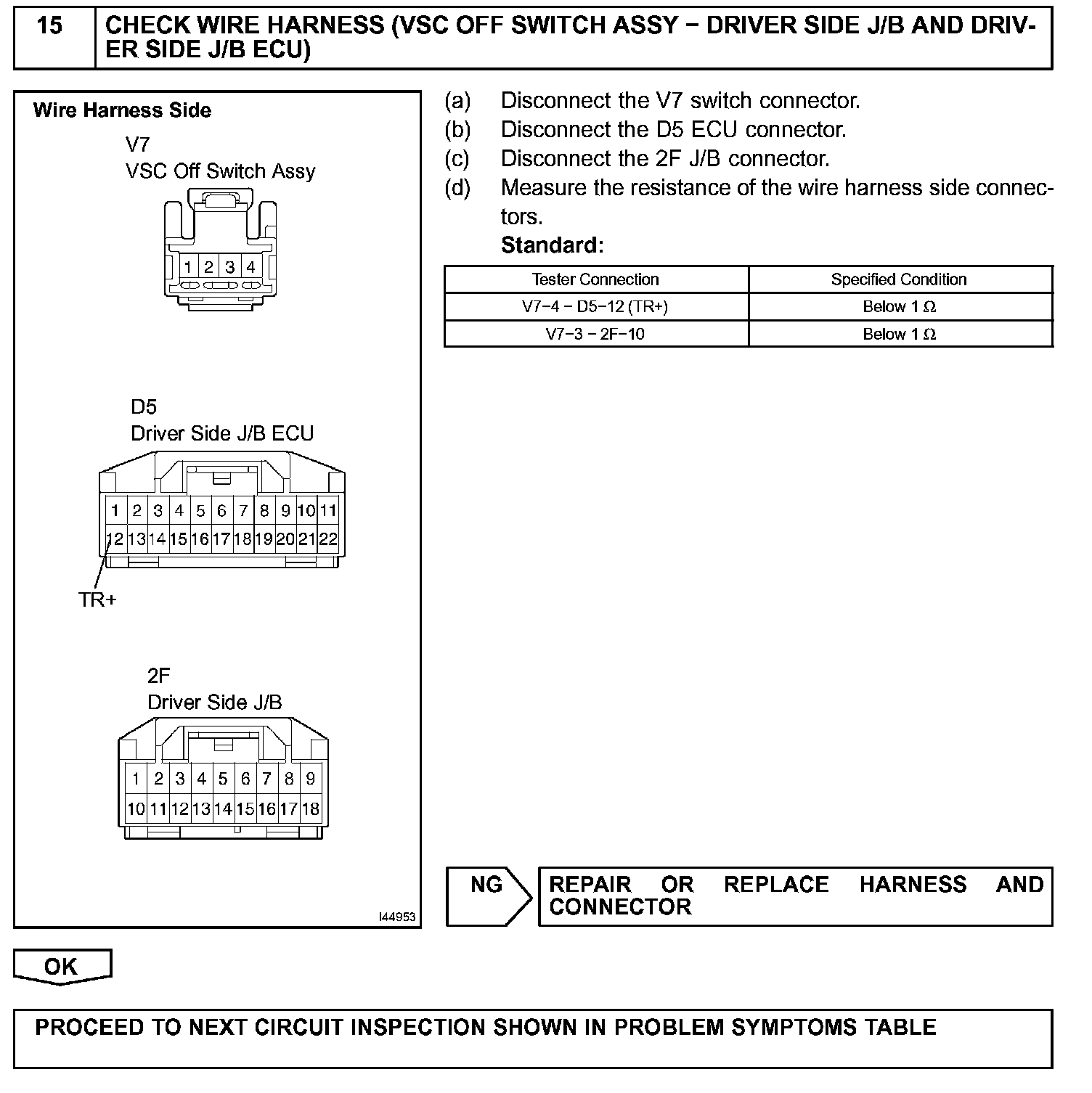

Step 15:

Step 16:

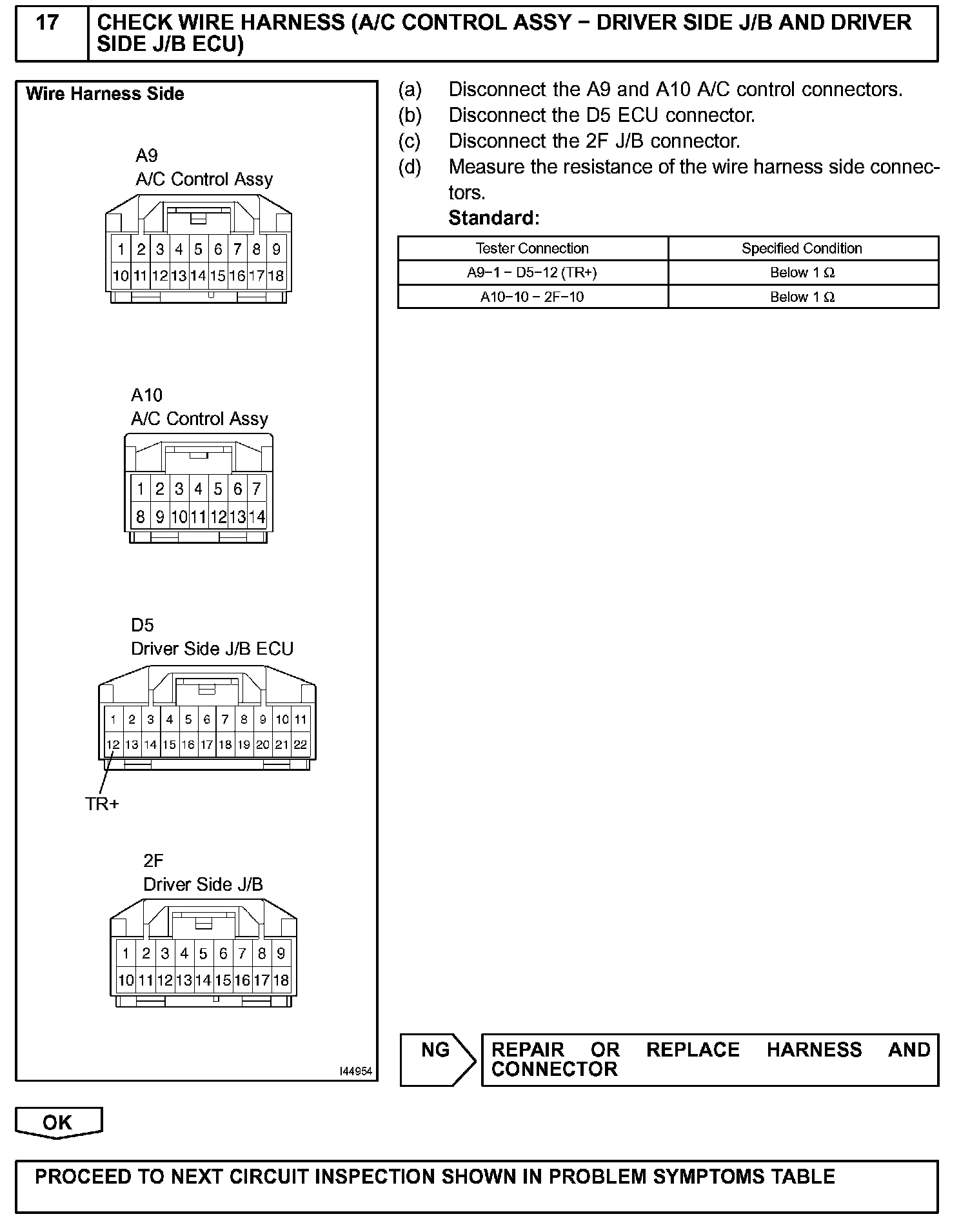

Step 17:

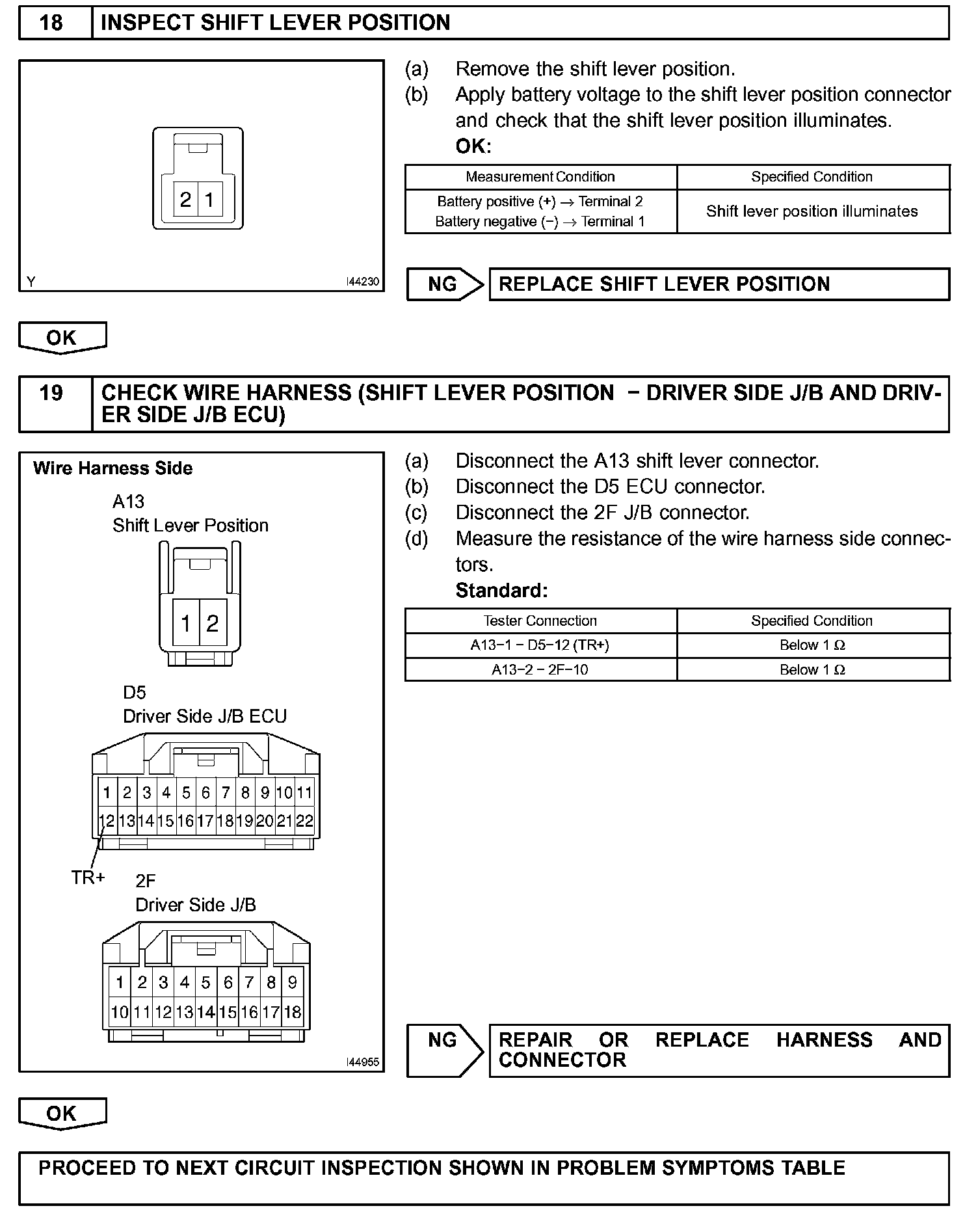

Step 18-19:

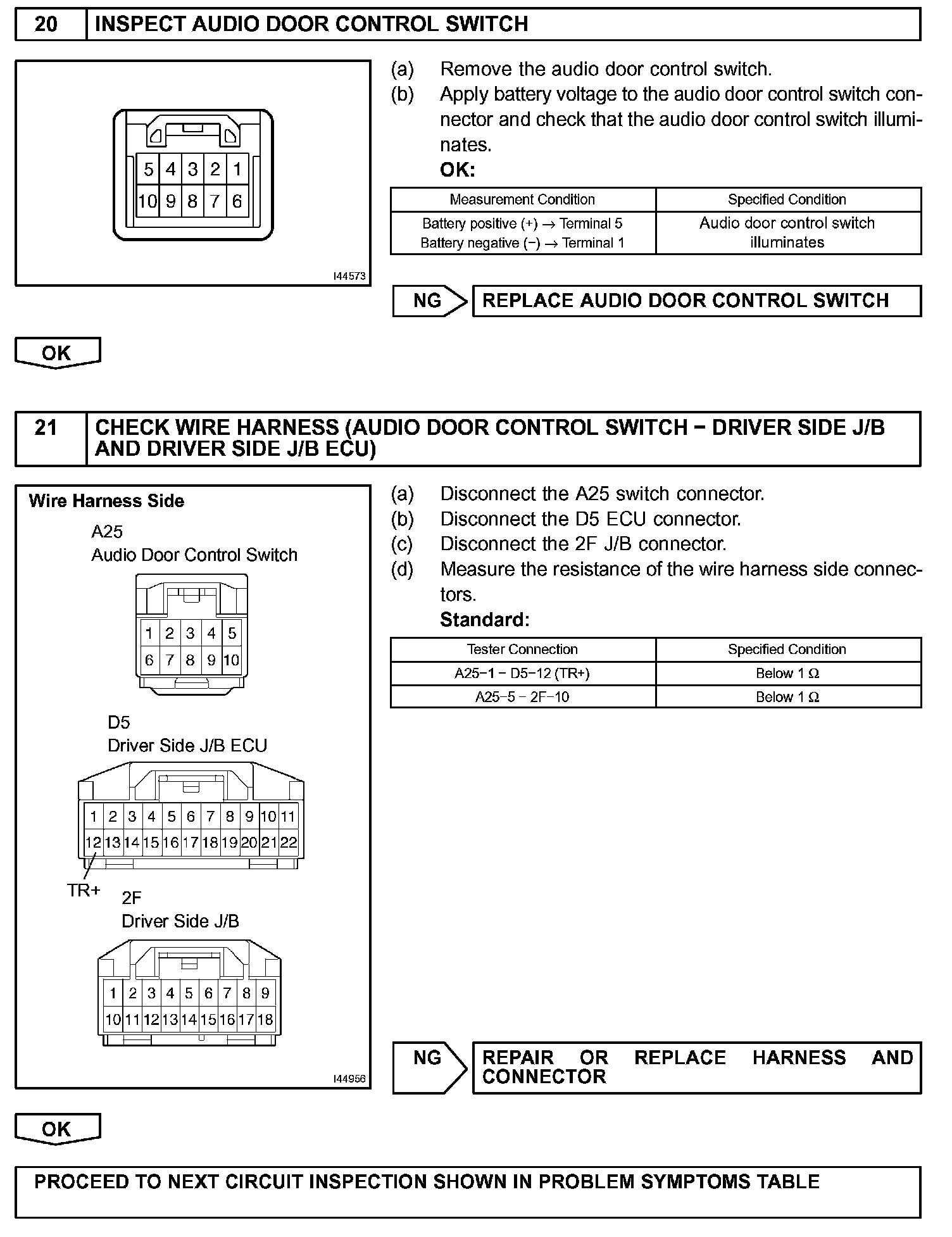

Step 20-21:

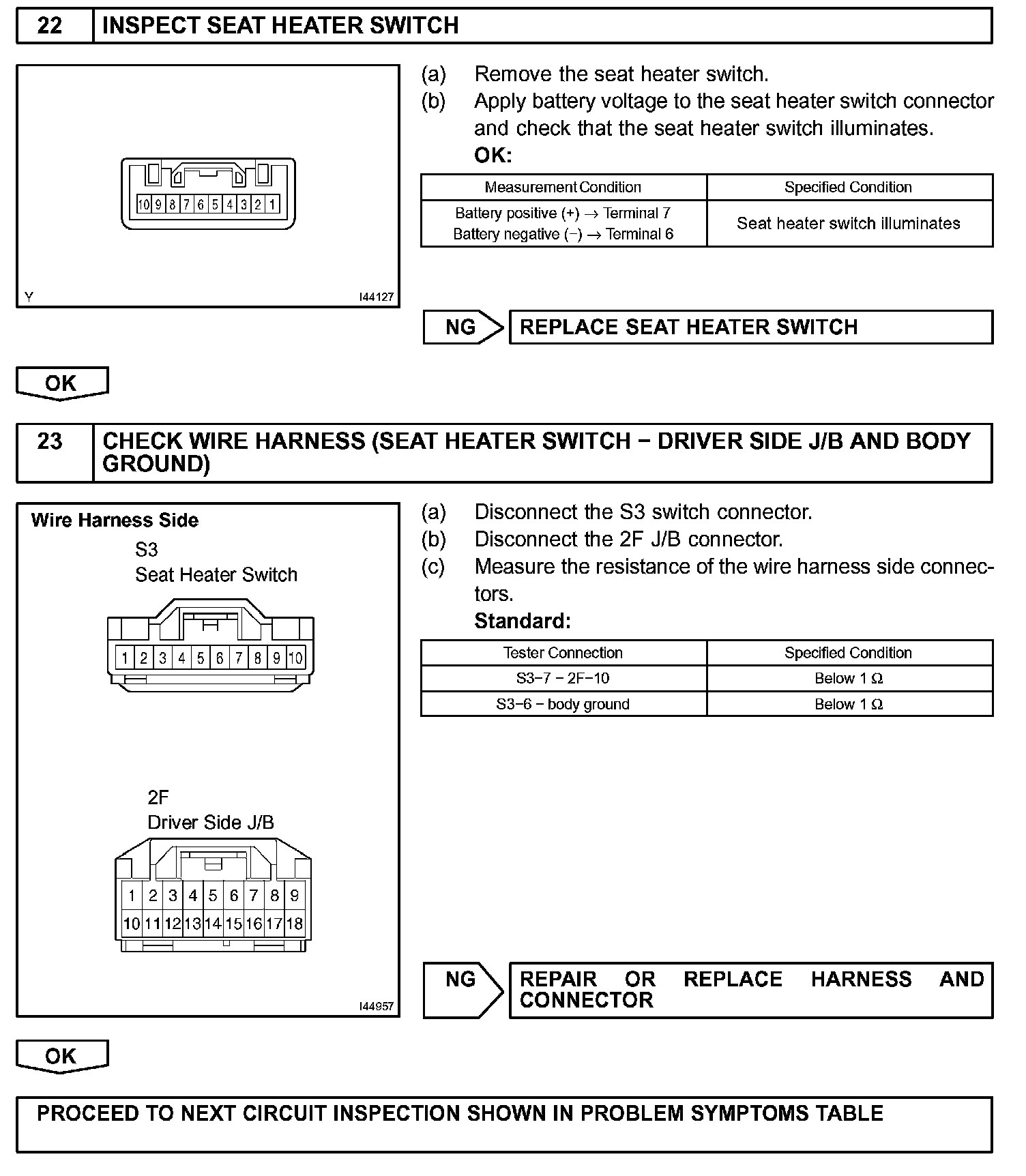

Step 22-23:

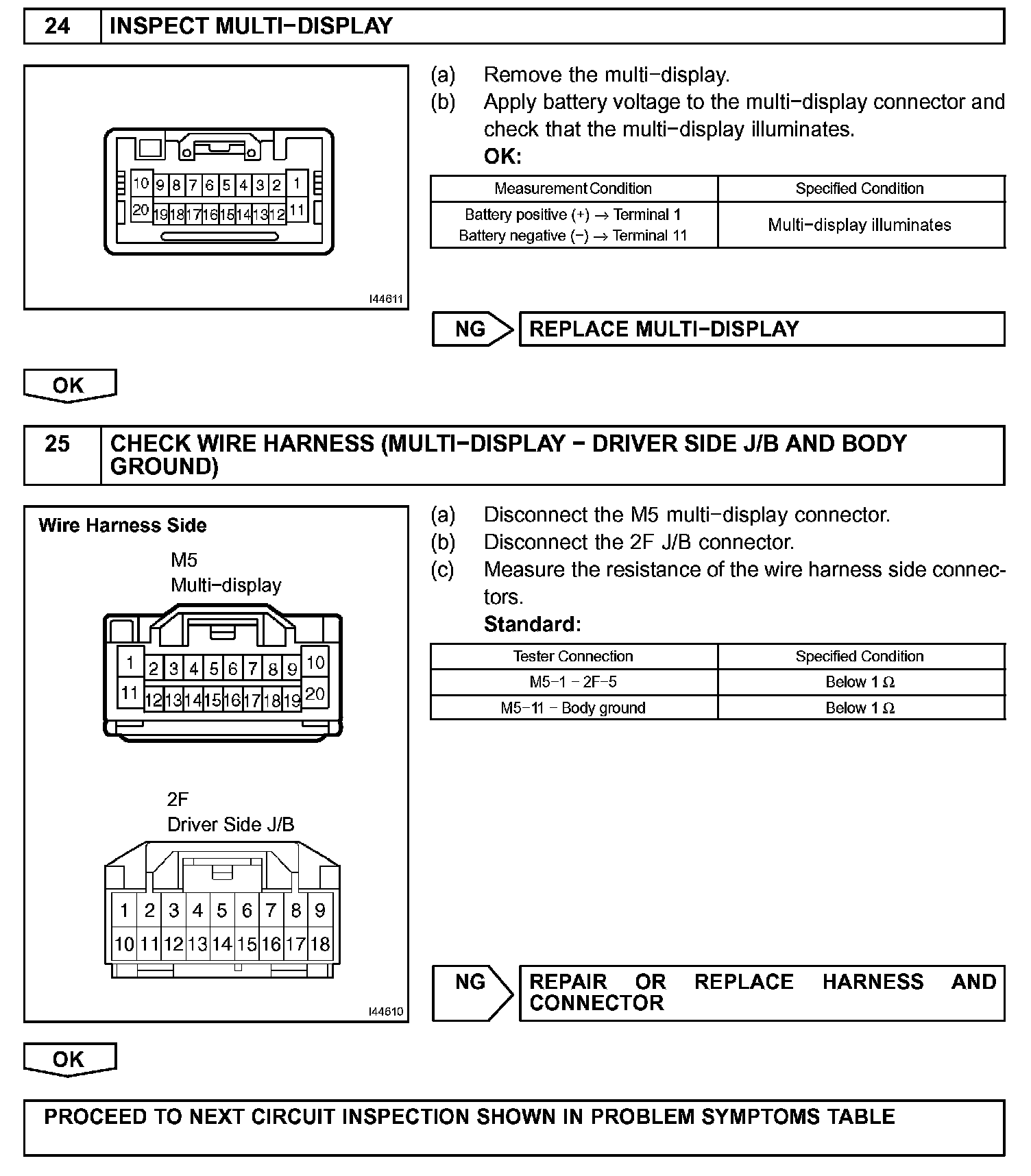

Step 24-25:

INSPECTION PROCEDURE
