Rear Side Marker Lamp Circuit
REAR SIDE MARKER LAMP CIRCUITCIRCUIT DESCRIPTION
The luggage room J/B ECU receives taillamp switch information from the combination switch, and illuminates the rear side marker lamp.
Wiring Diagram:

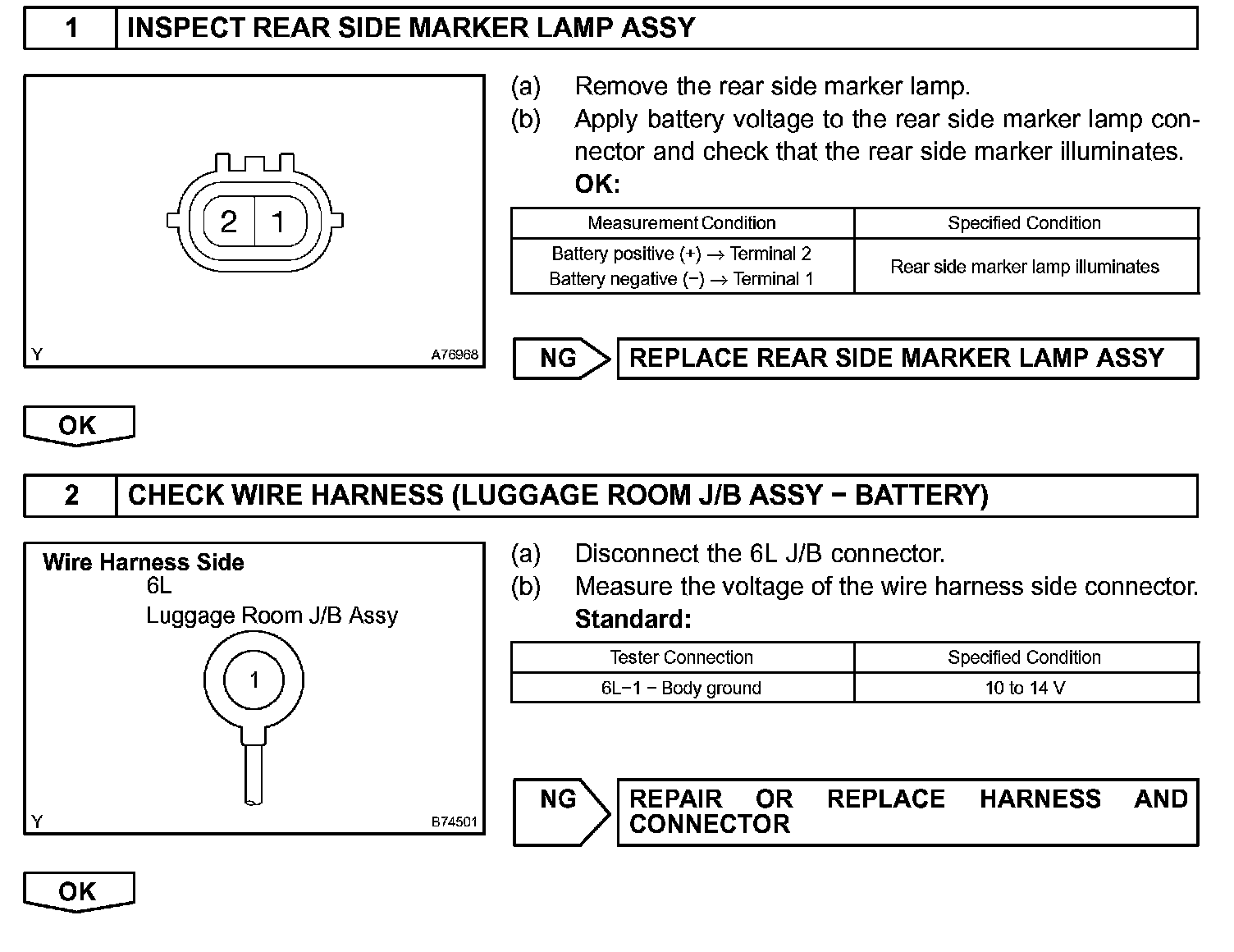

Step 1-2:

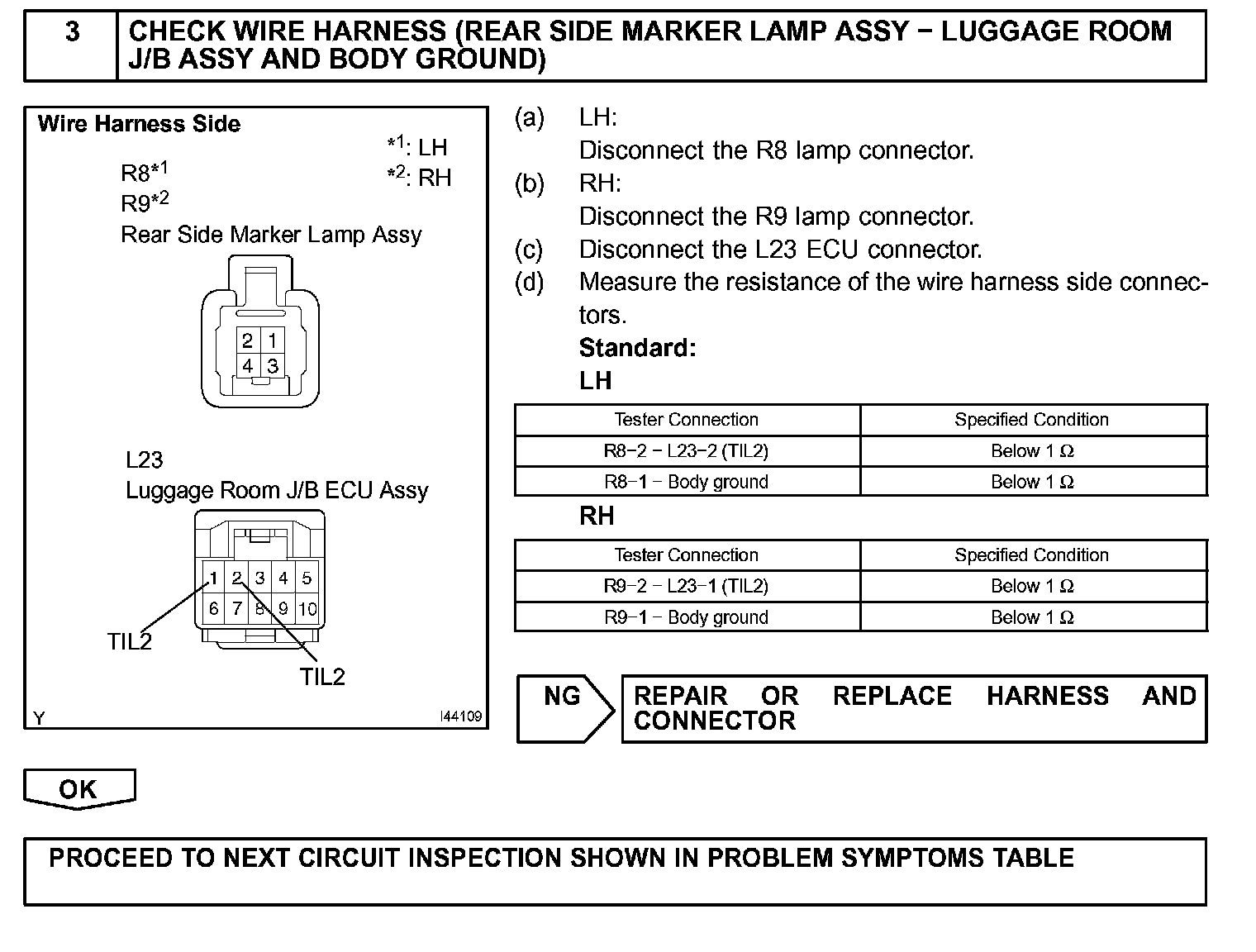

Step 3:
INSPECTION PROCEDURE
