Short in CAN Bus Lines

SHORT IN CAN BUS LINES

CIRCUIT DESCRIPTION




There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

Wiring Diagram:

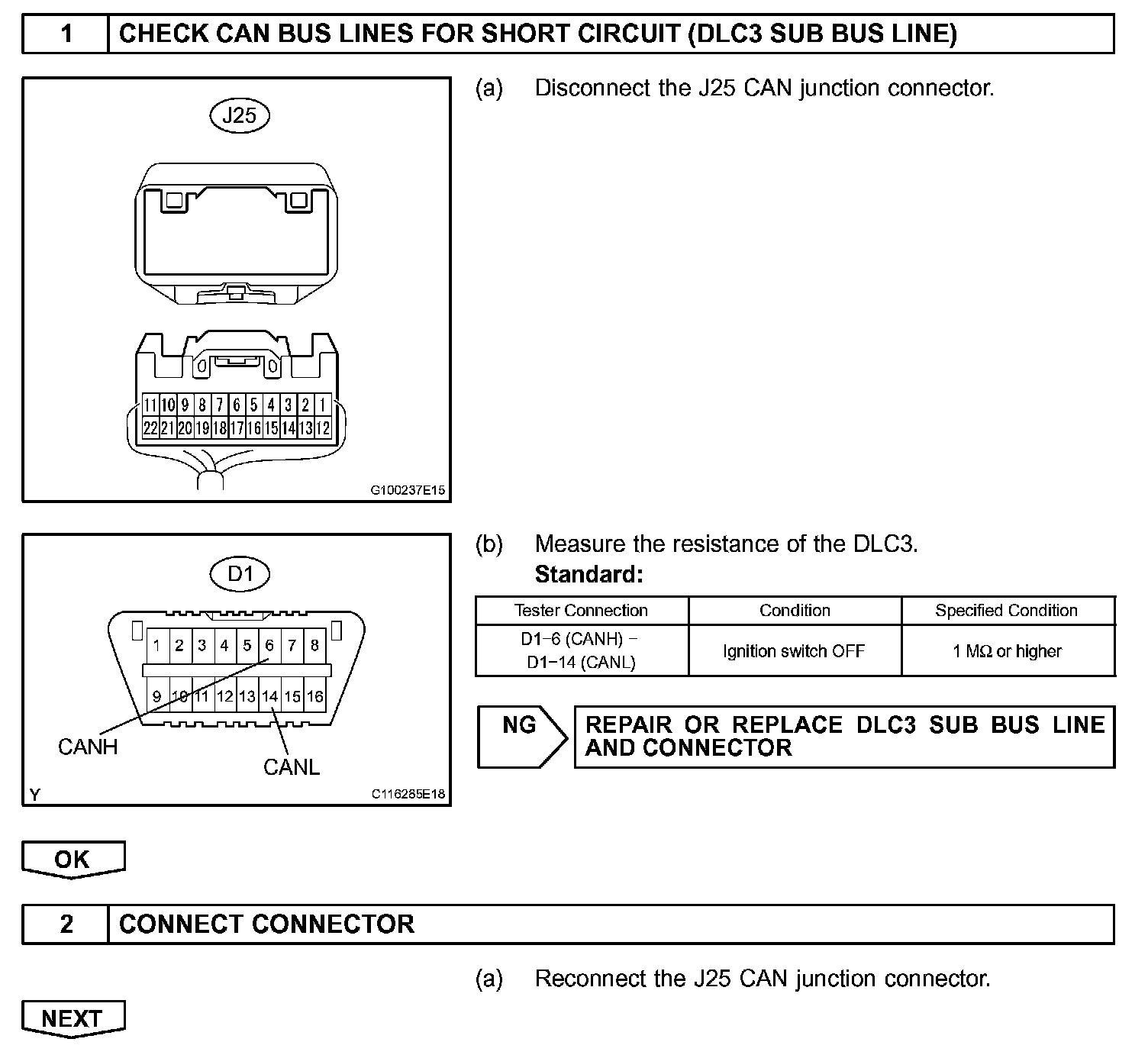

Step 1-2:

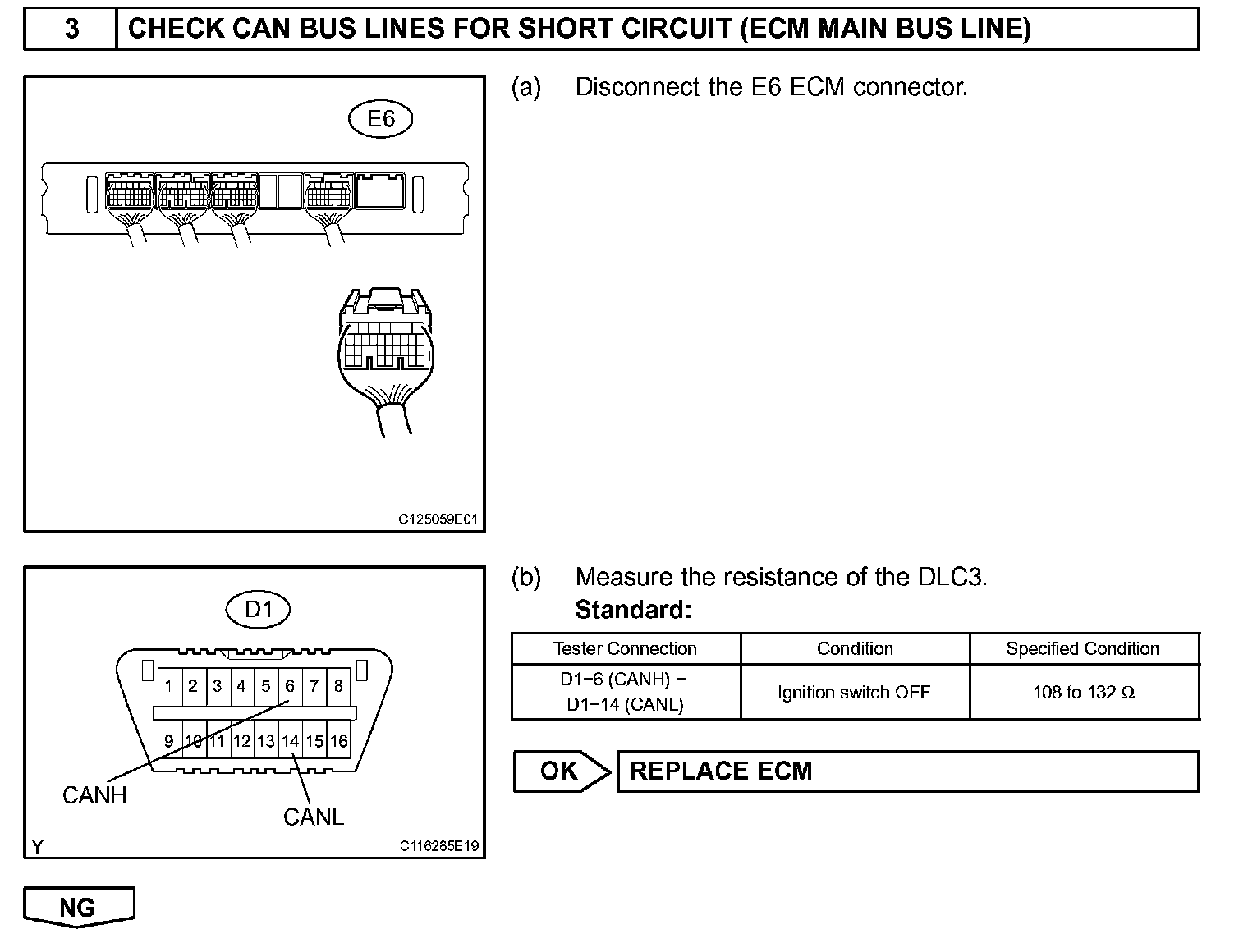

Step 3:

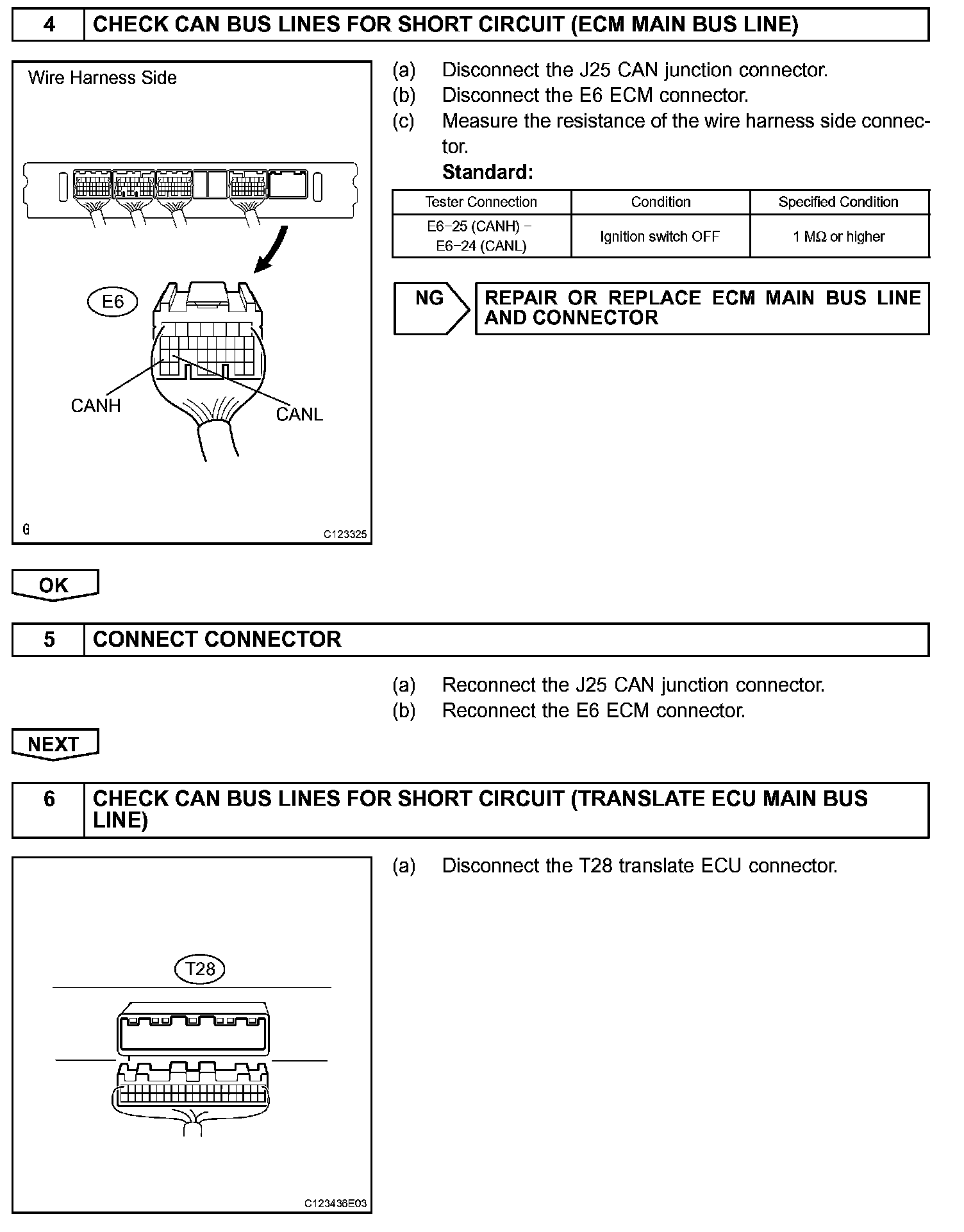

Step 4-6:

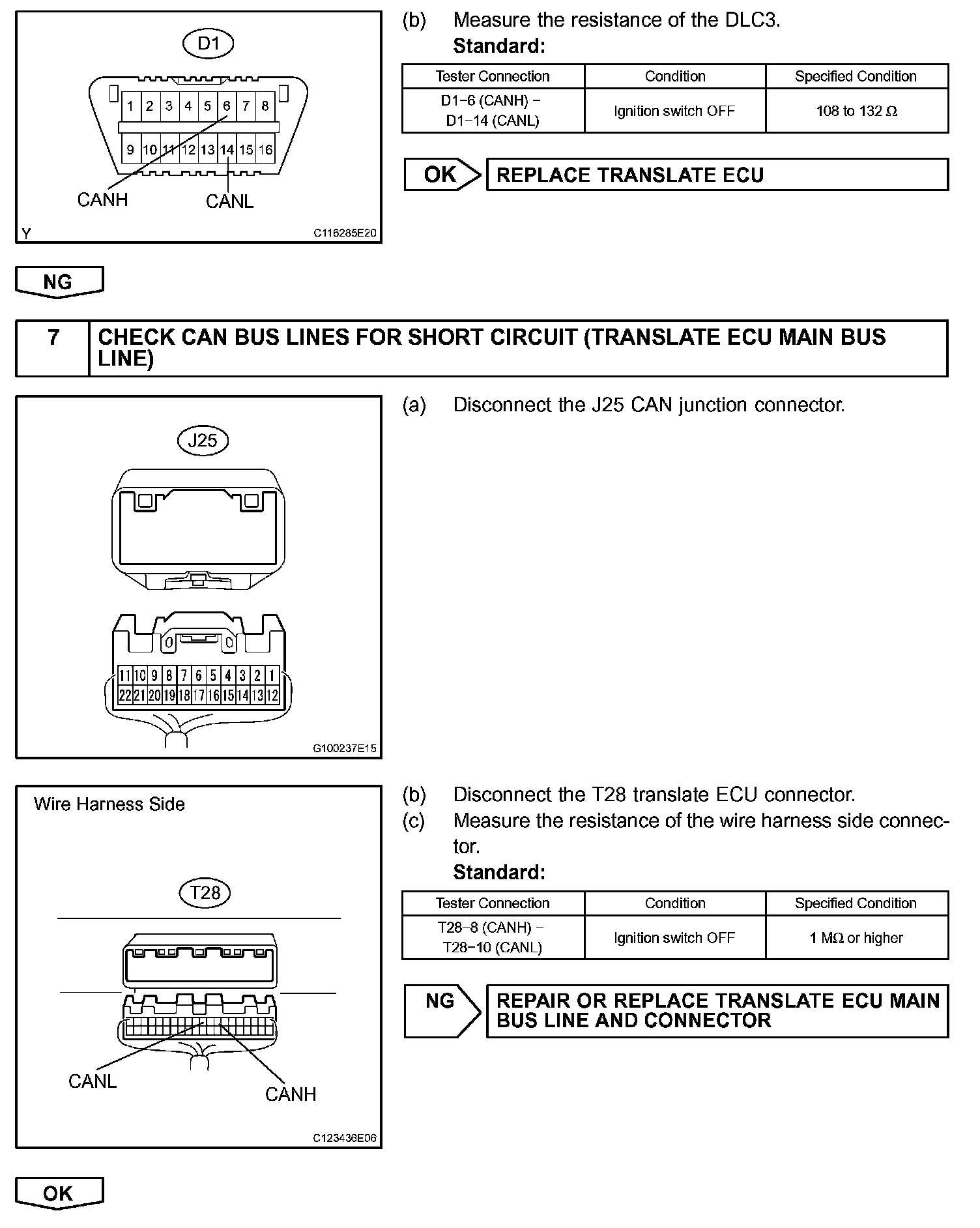

Step 6(Continued)-7:

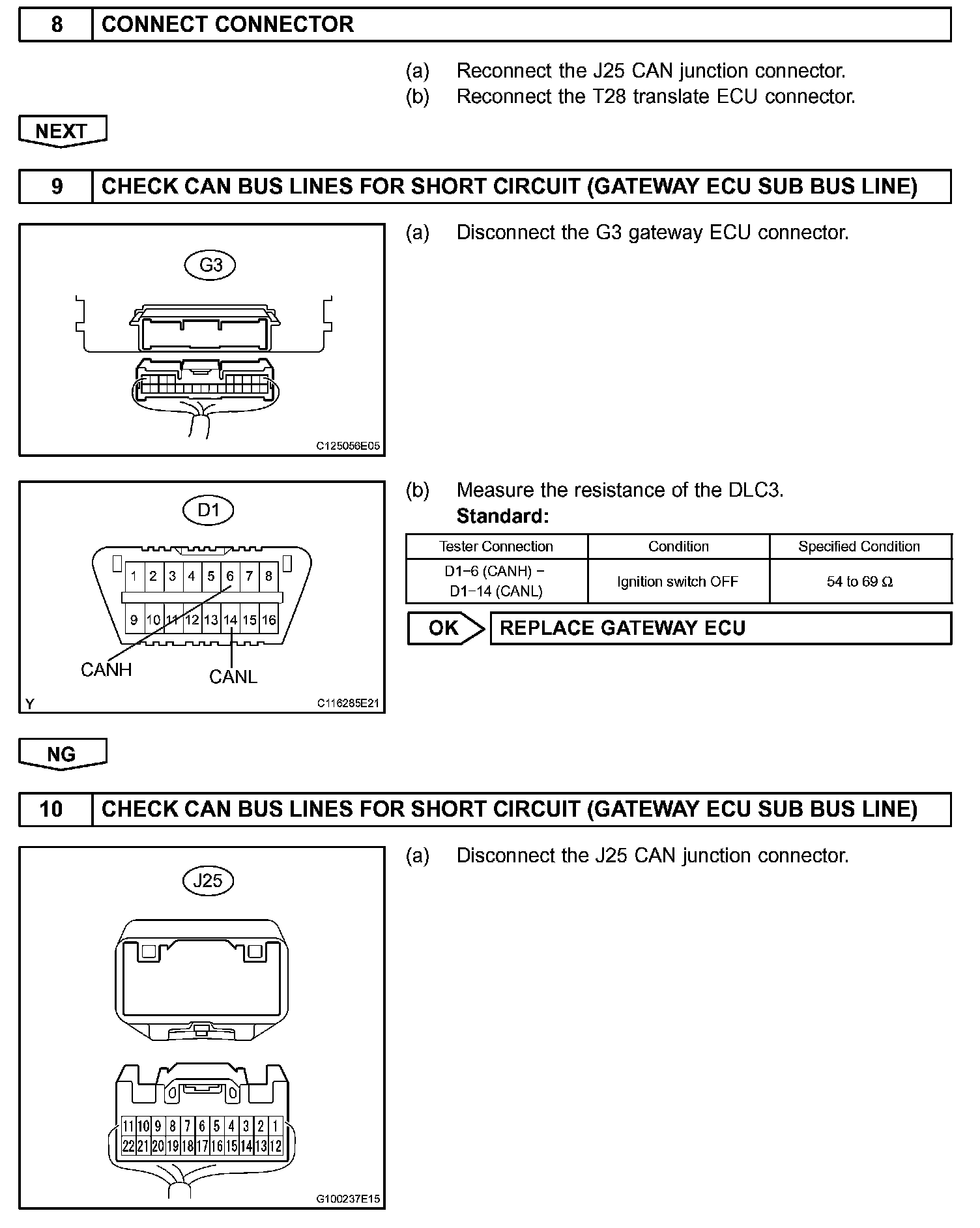

Step 8-10:

Step 10(Continued):

INSPECTION PROCEDURE
