Short to GND in CAN Bus Line

SHORT TO GND IN CAN BUS LINE

CIRCUIT DESCRIPTION




A short GND may be occurring in the CAN bus line when there is a short between terminals 6 (CANH) and 4 (CG) or terminals 14 (CANL) and 4 (CG) of the DLC3.

Wiring Diagram:

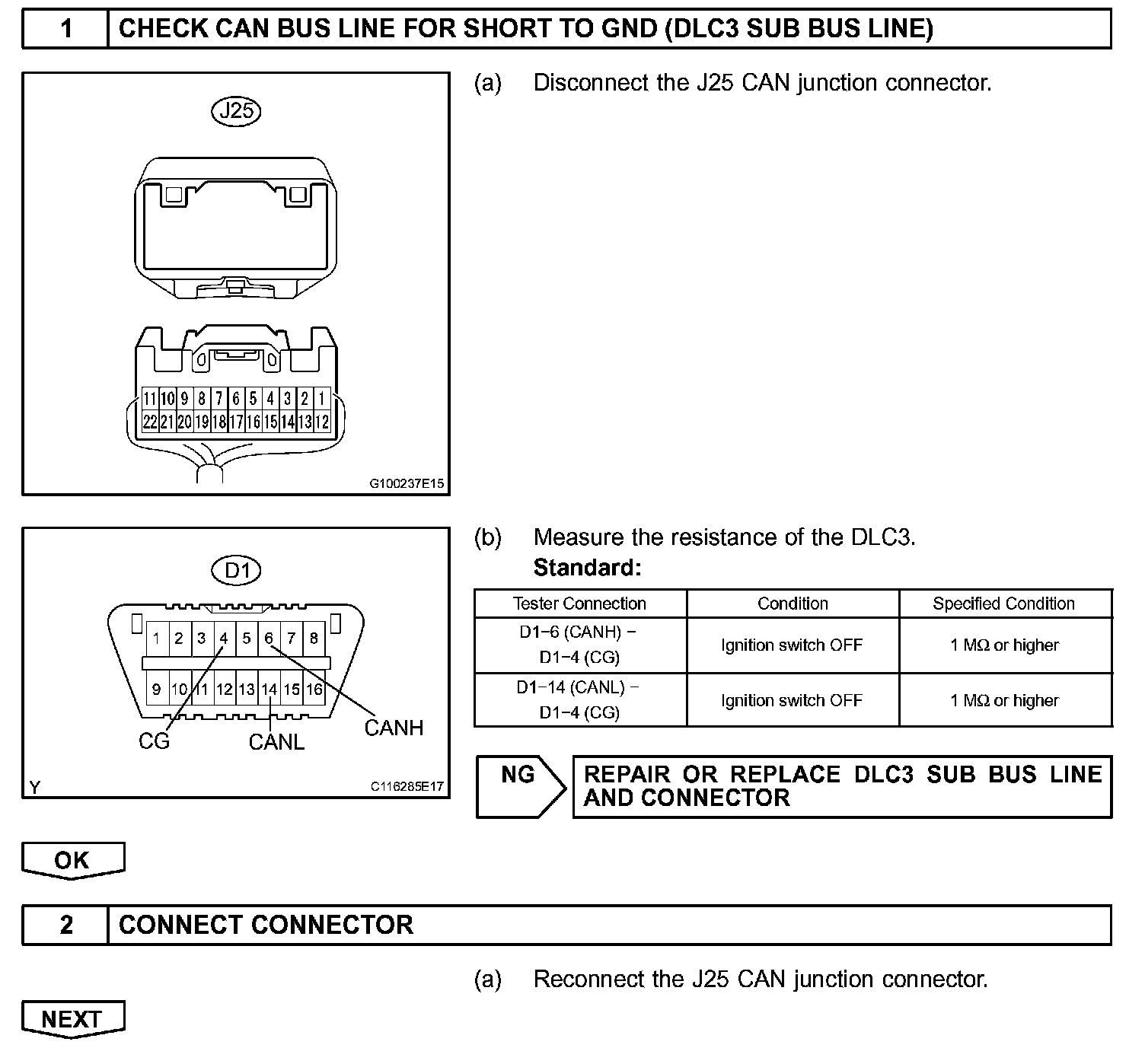

Step 1-2:

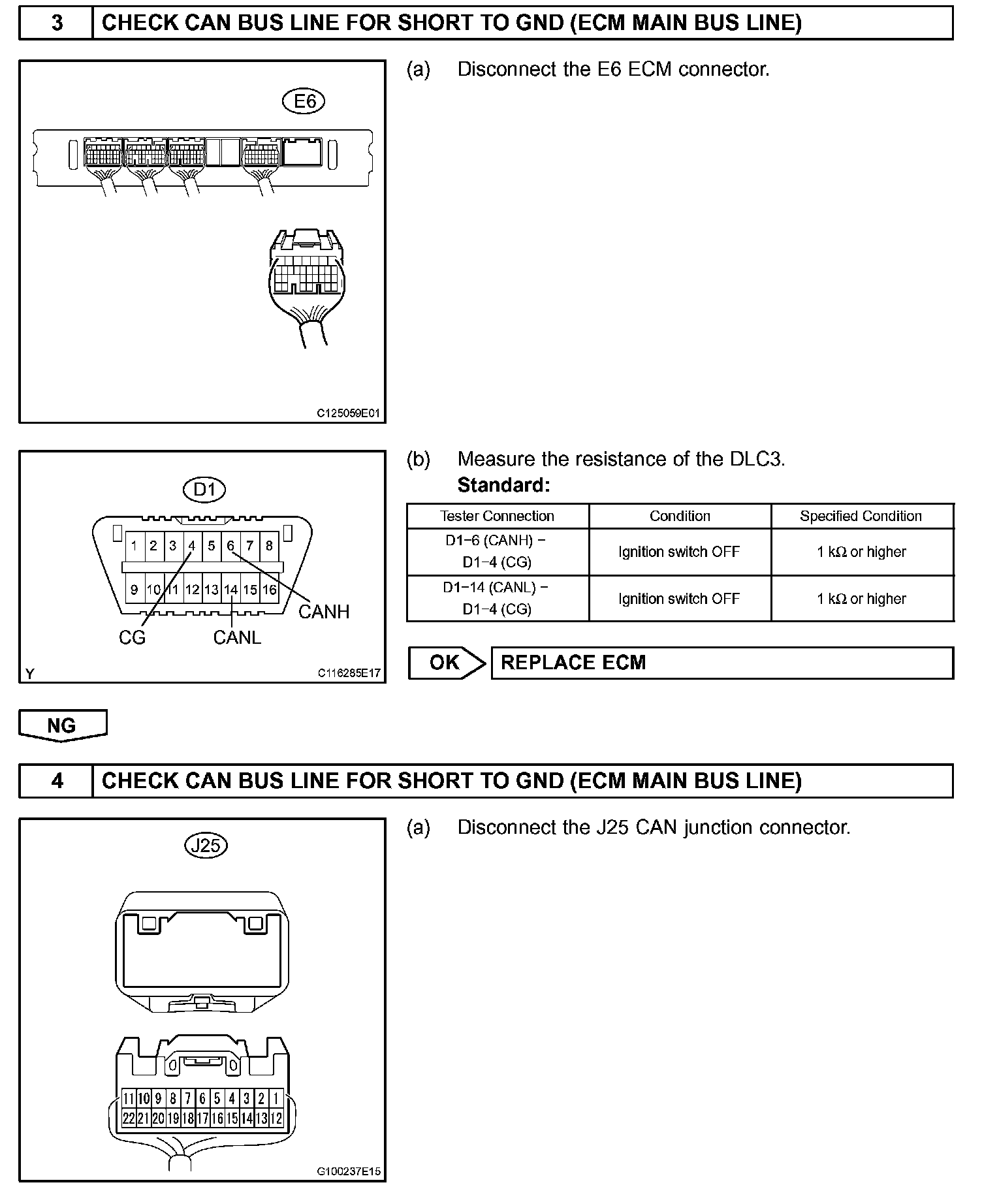

Step 3-4:

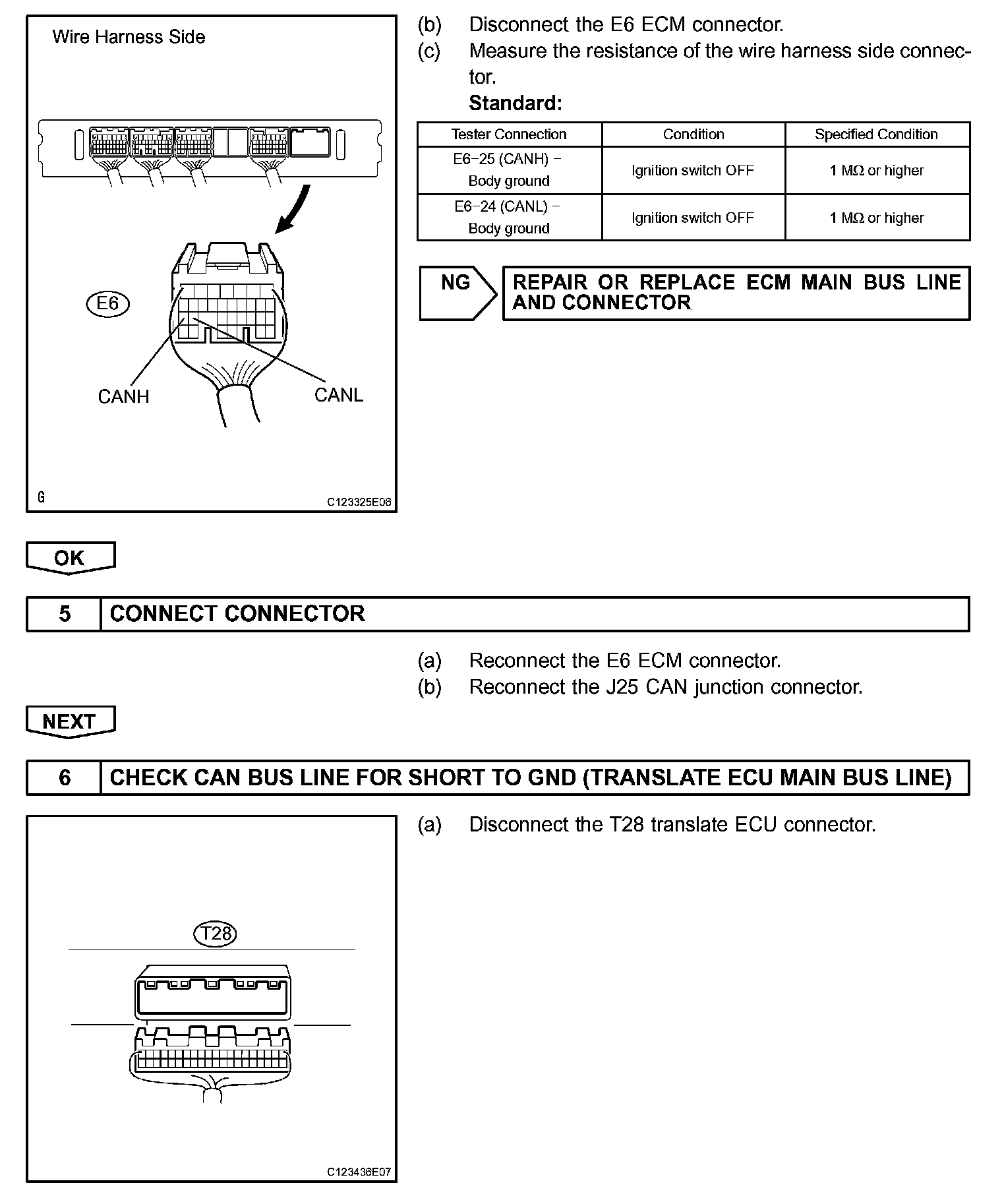

Step 4(Continued)-6:

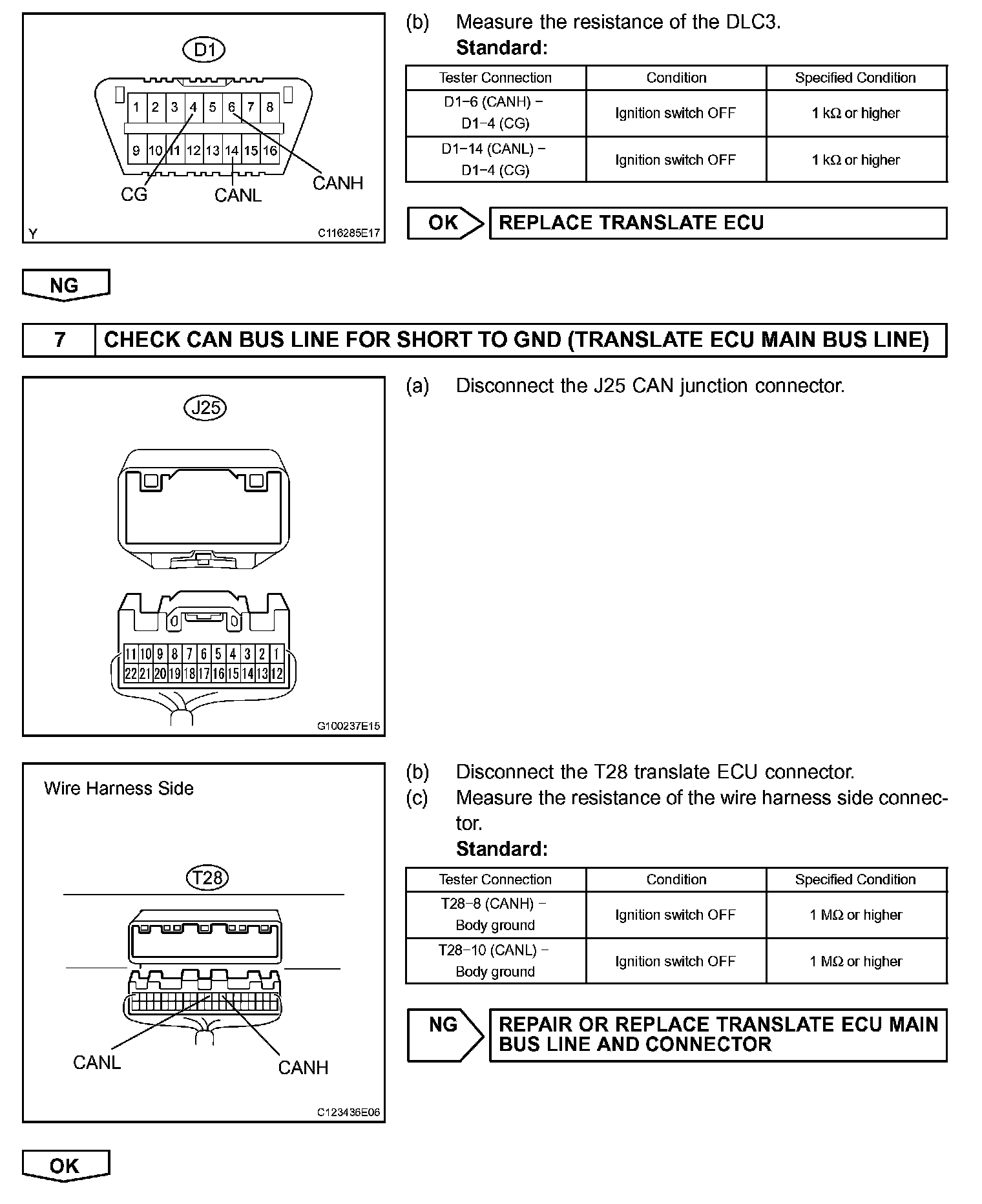

Step 6(Continued)-7:

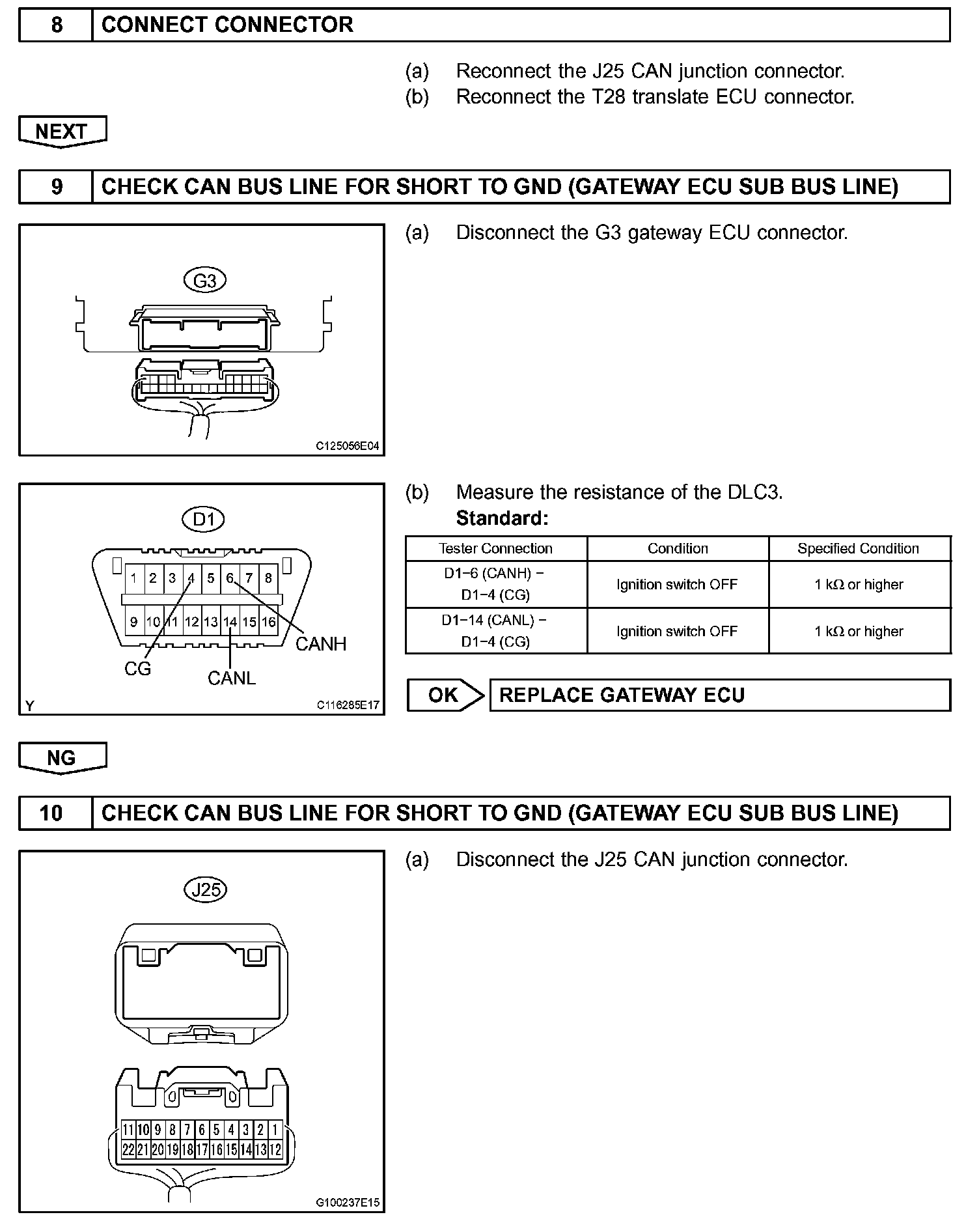

Step 8-10:

Step 10(Continued):

INSPECTION PROCEDURE
