Instrument Panel Control Module: Testing and Inspection

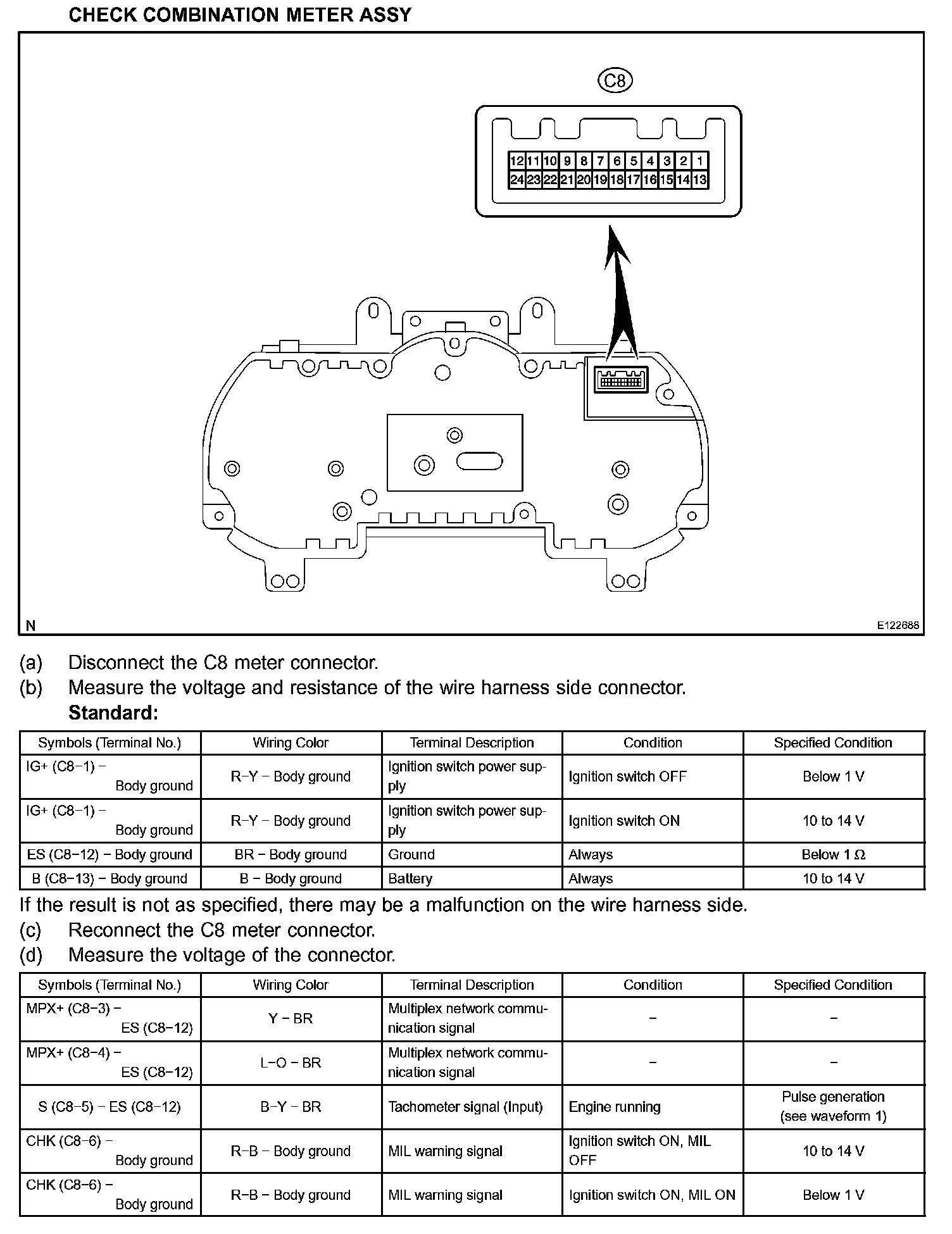

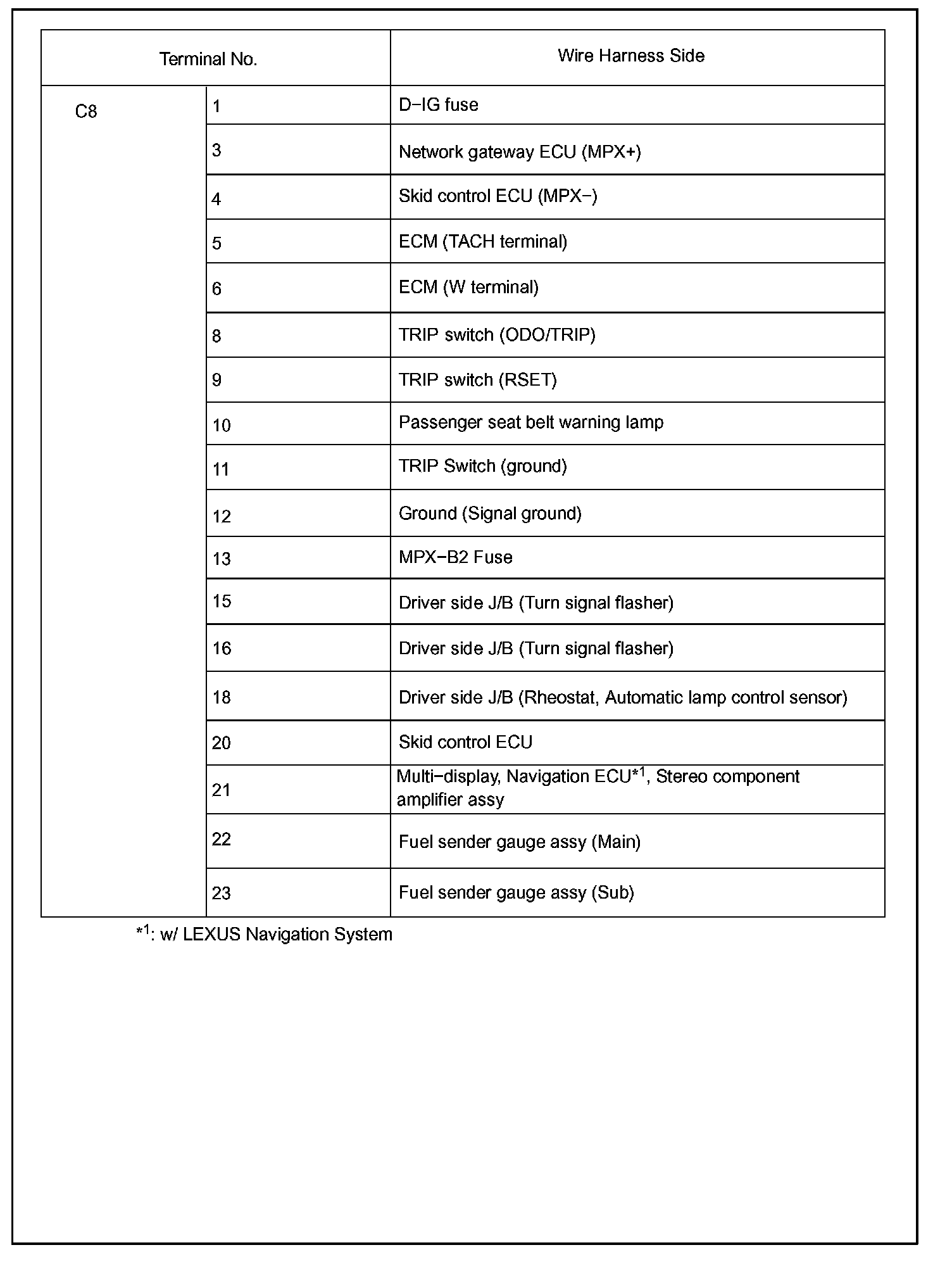

Terminals Of Control Module/Pinouts:

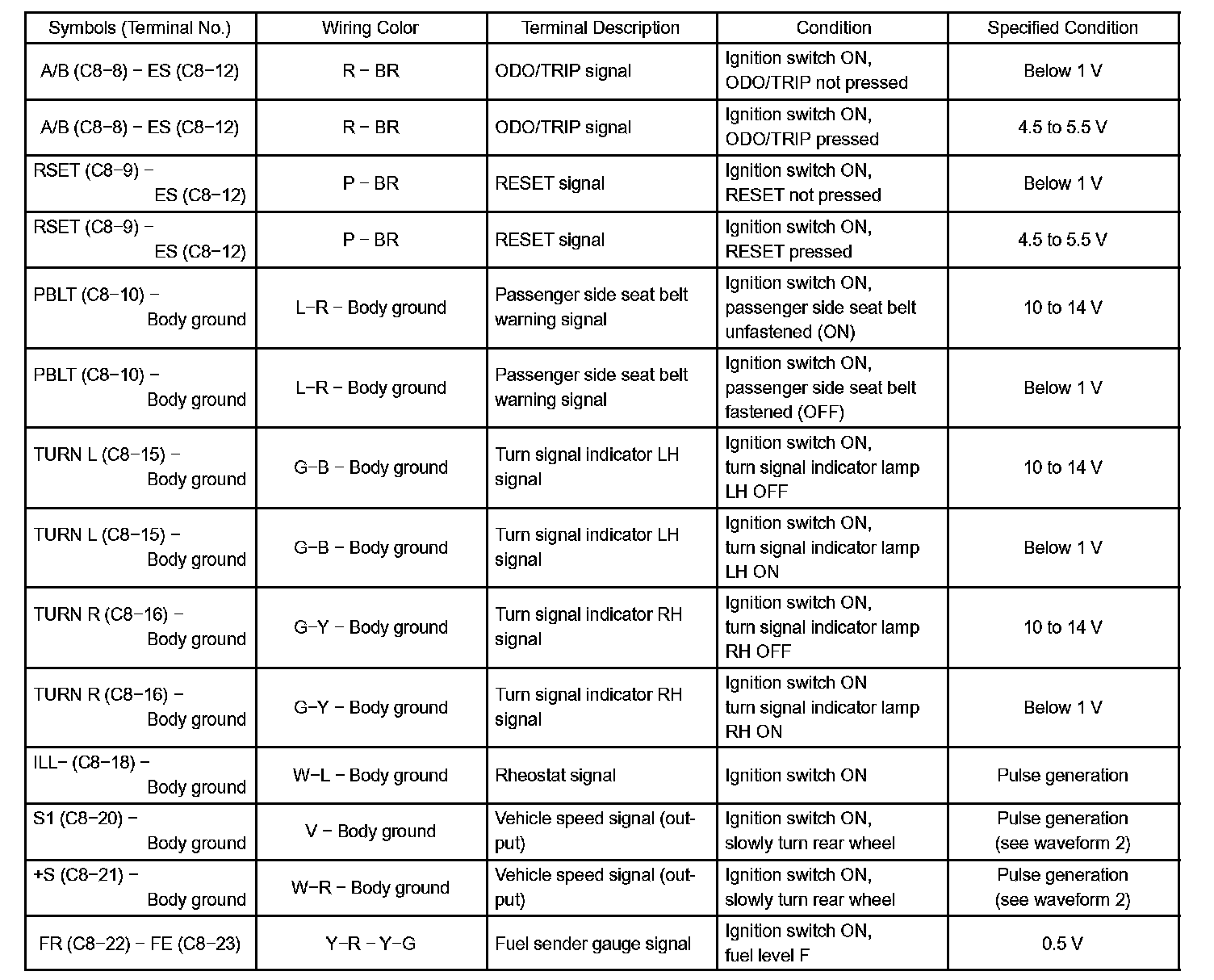

Terminals Of Control Module/Pinouts (Part 2):



Oscilloscope Waveforms:

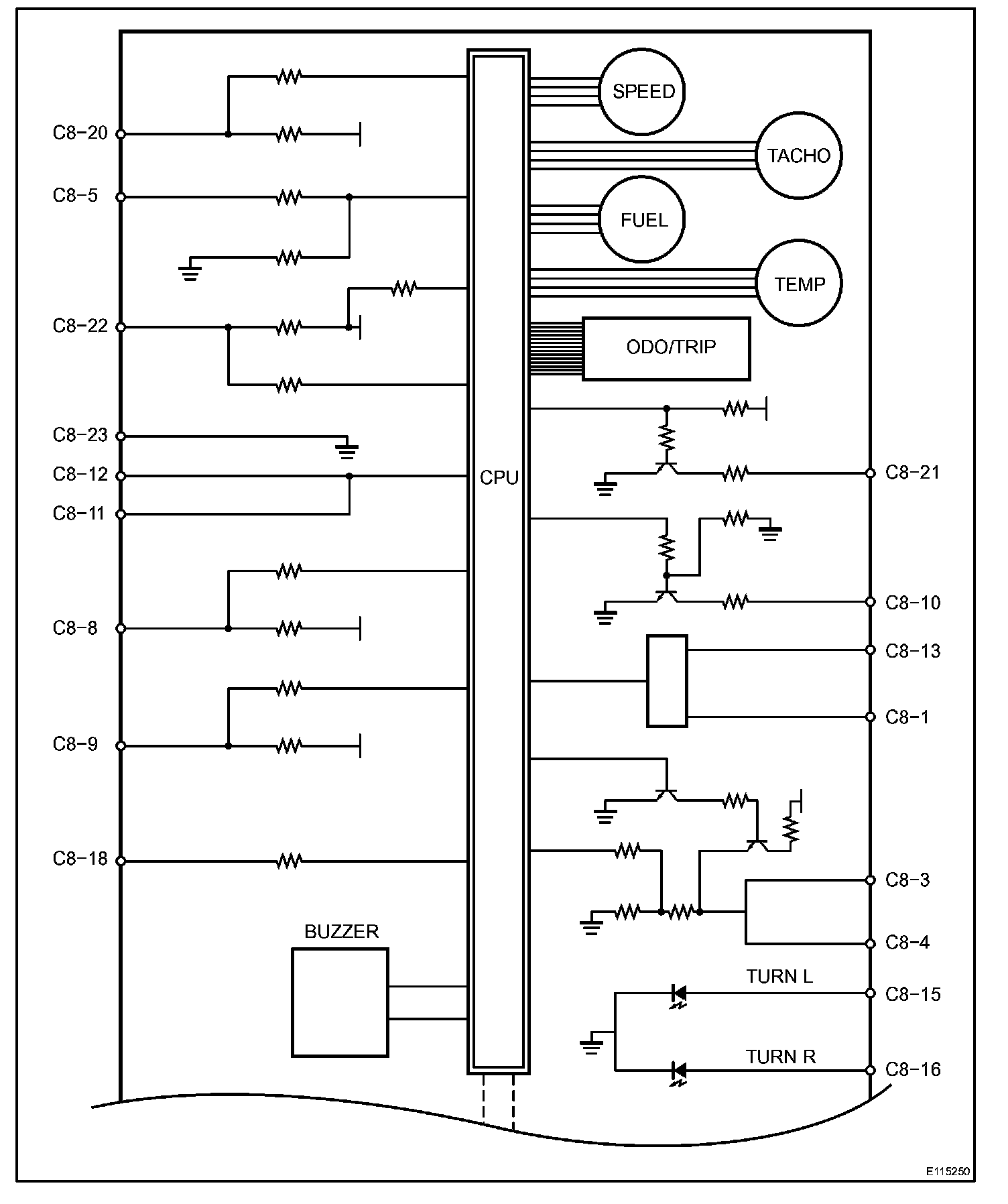

Combination Meter Inner Circuit:



Combination Meter Inner Circuit:



Combination Meter Inner Circuit:
