Canada - Entertainment - Audio Reference Guide

Bulletin
TSB2241

Issue Date
April 12, 2006

Title
AUDIO QUICK REFERENCE GUIDE

Component
BODY ELECTRICAL

Models
'01 - '07 All Lexus

INTRODUCTION:

Lexus has developed a quick reference guide to be used by technicians when troubleshooting typical audio system concerns. This guide is intended only as a supplement to the diagnostics already available in the Repair Manual.

APPLICABLE VEHICLES:
- 2001 - 2007 model year Lexus vehicles.

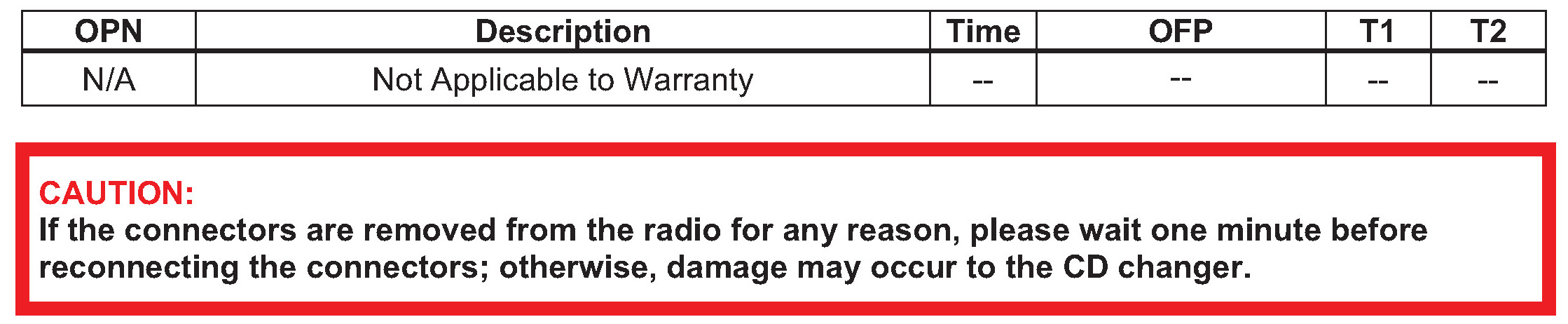

WARRANTY INFORMATION:

REPAIR PROCEDURE:

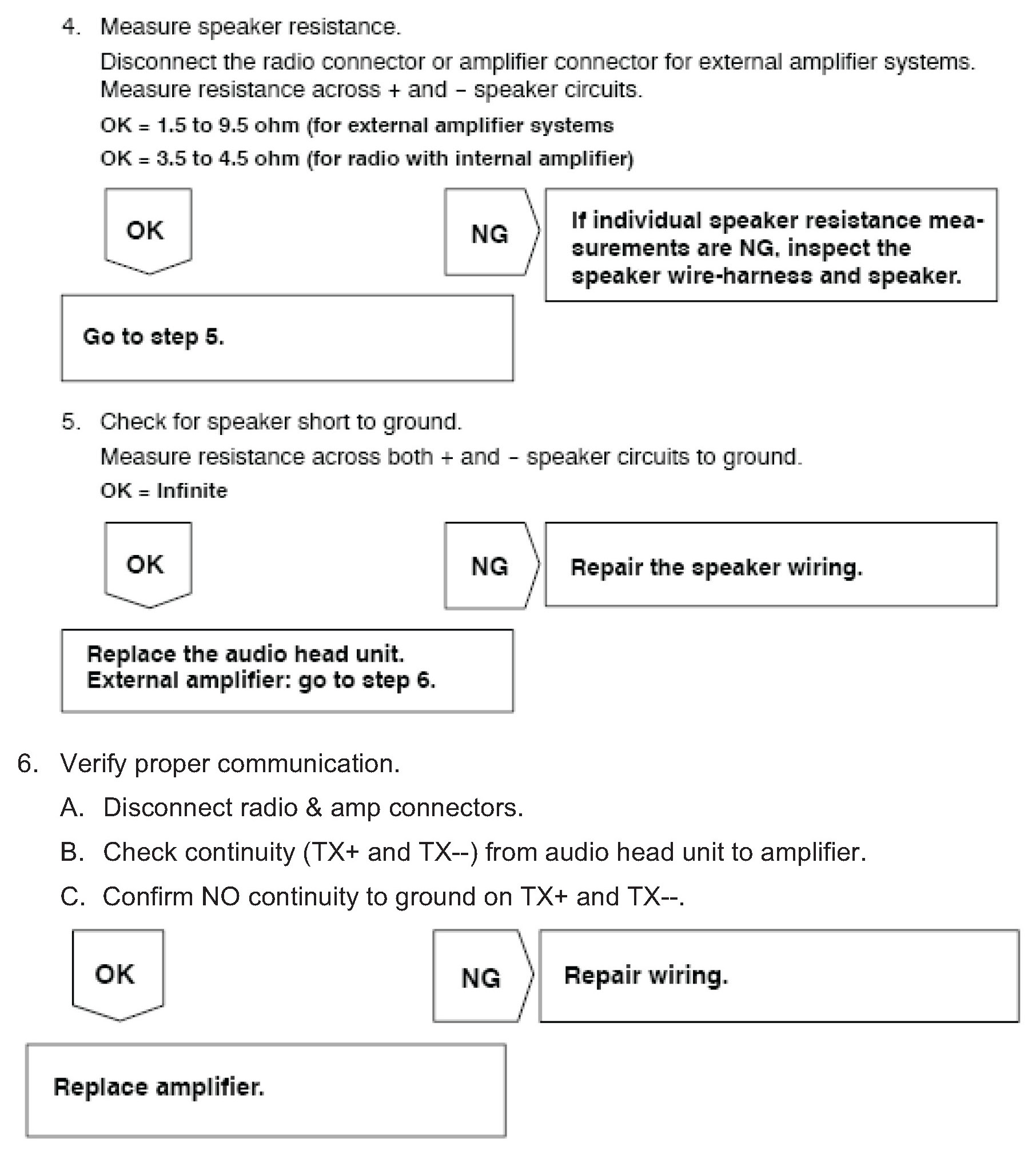

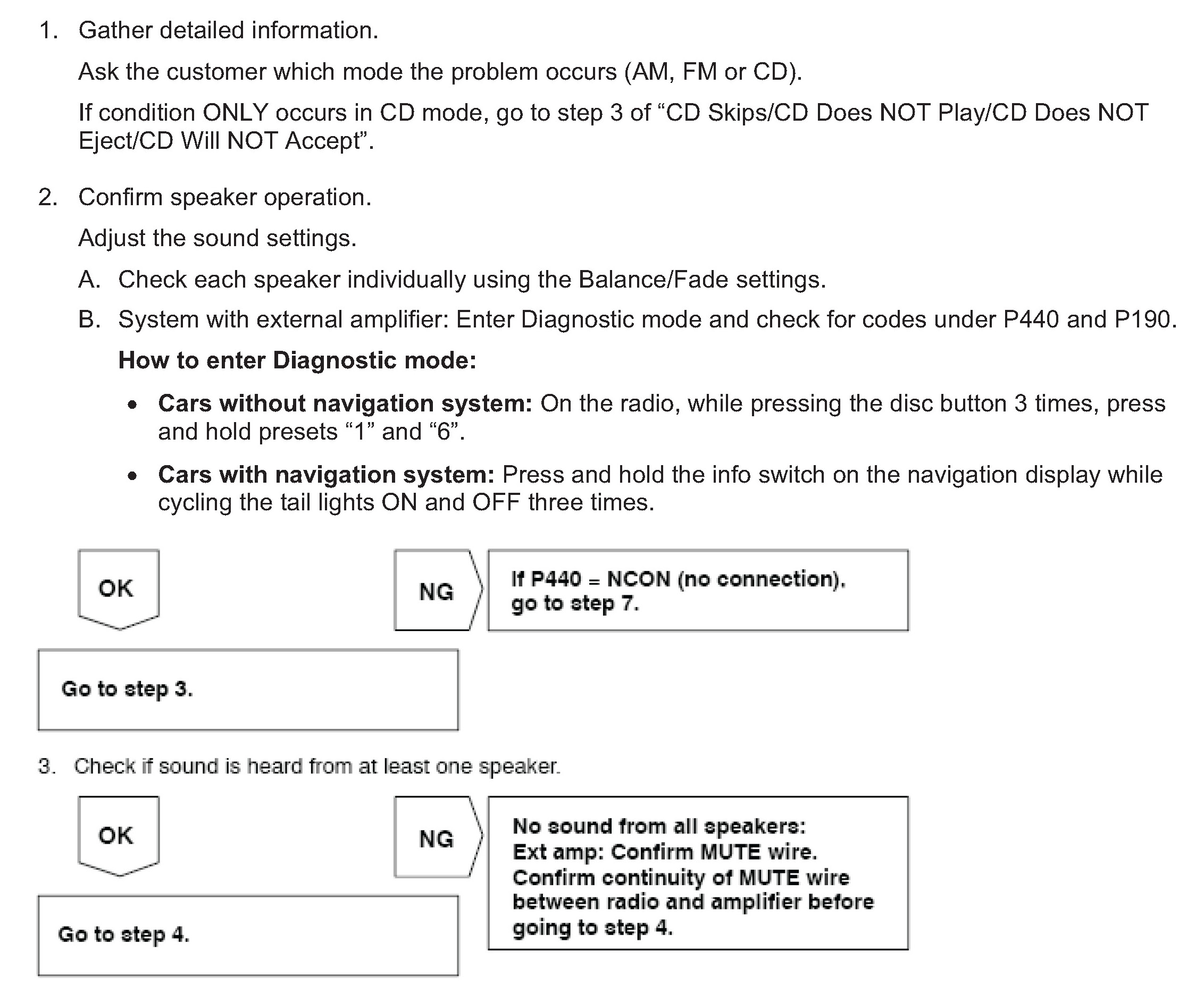

No Sound (Display is normal)

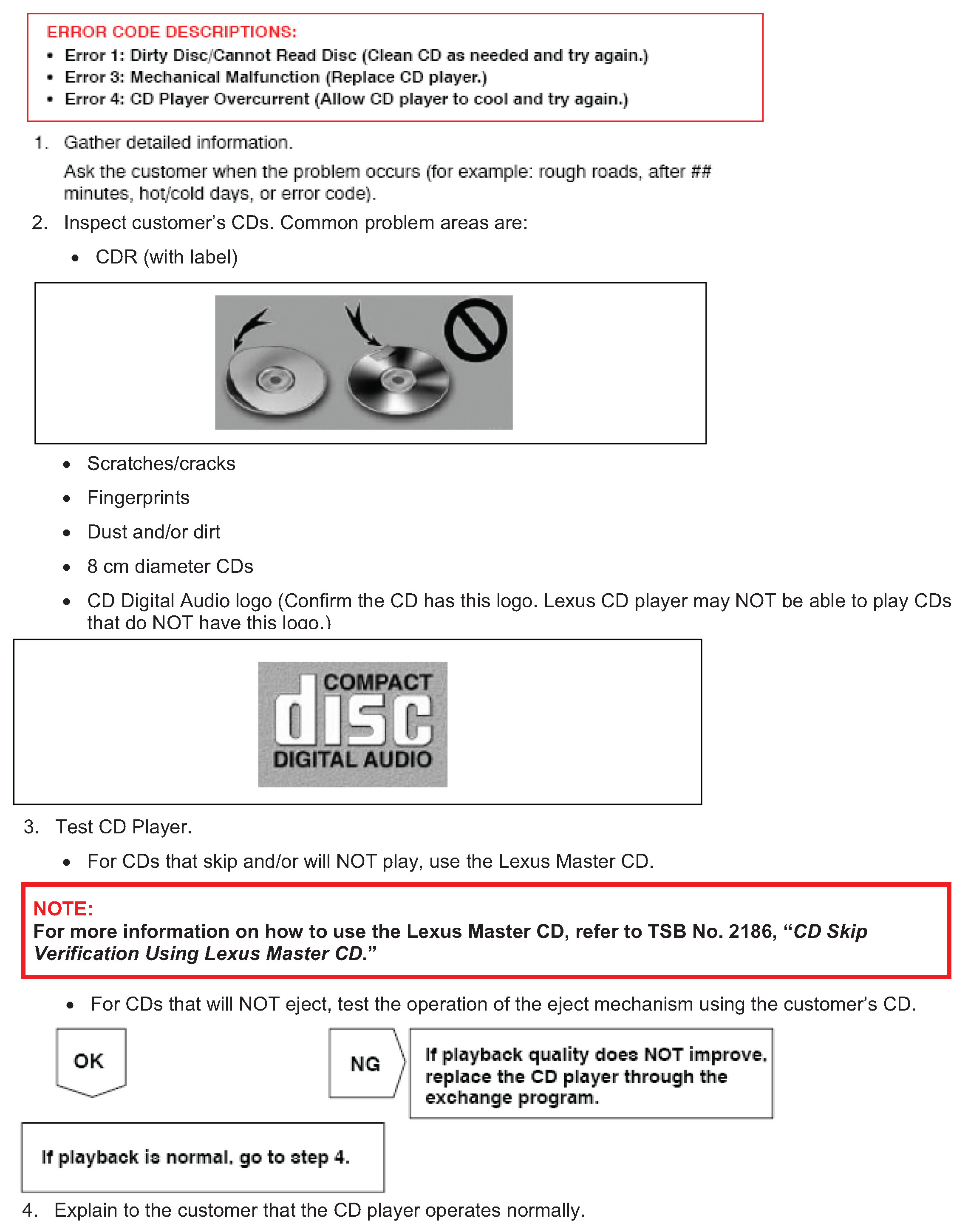

CD Skips/CD Does NOT Play/CD Does NOT Eject/CD Will NOT Accept

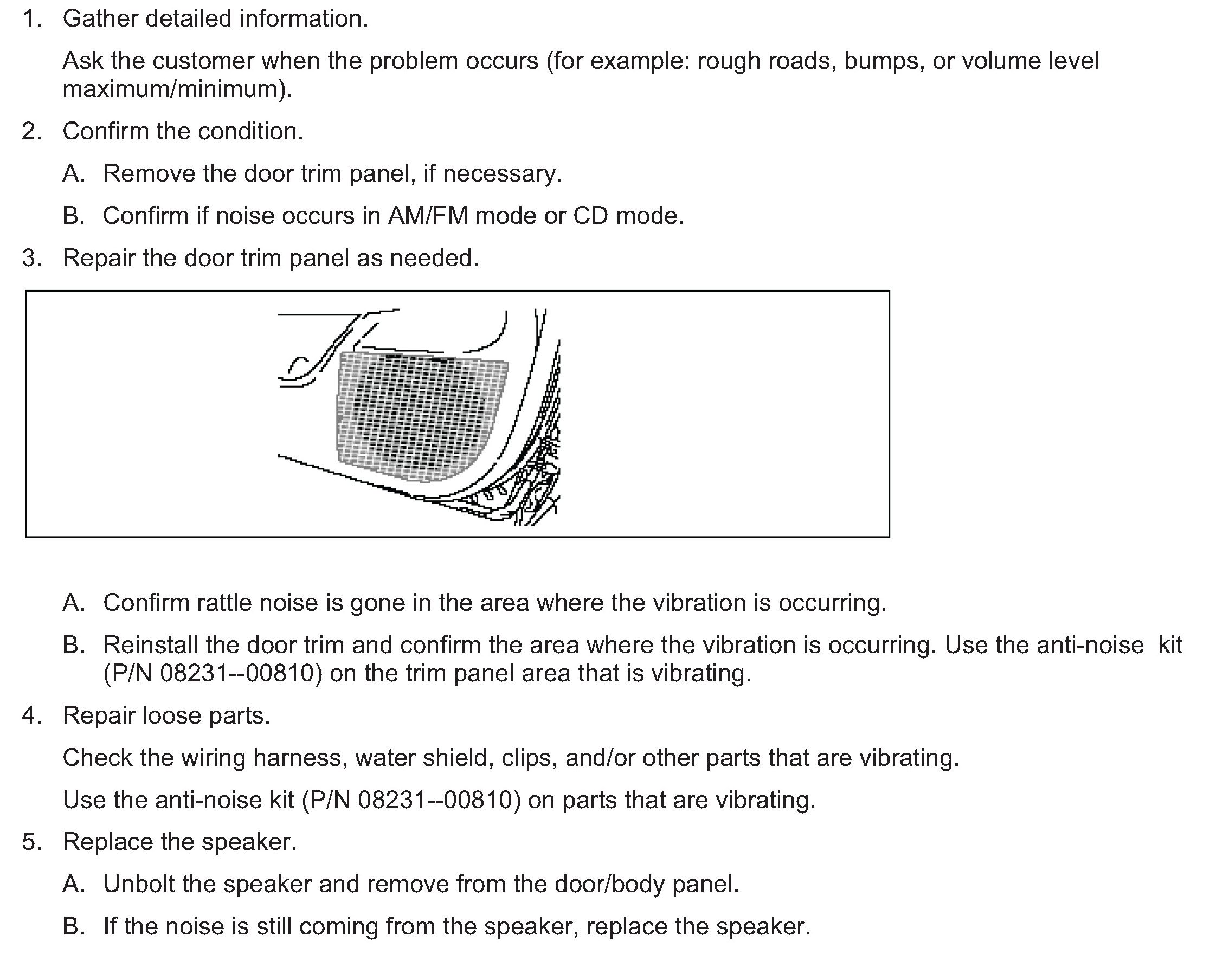

Speaker Noise/Rattle Noise

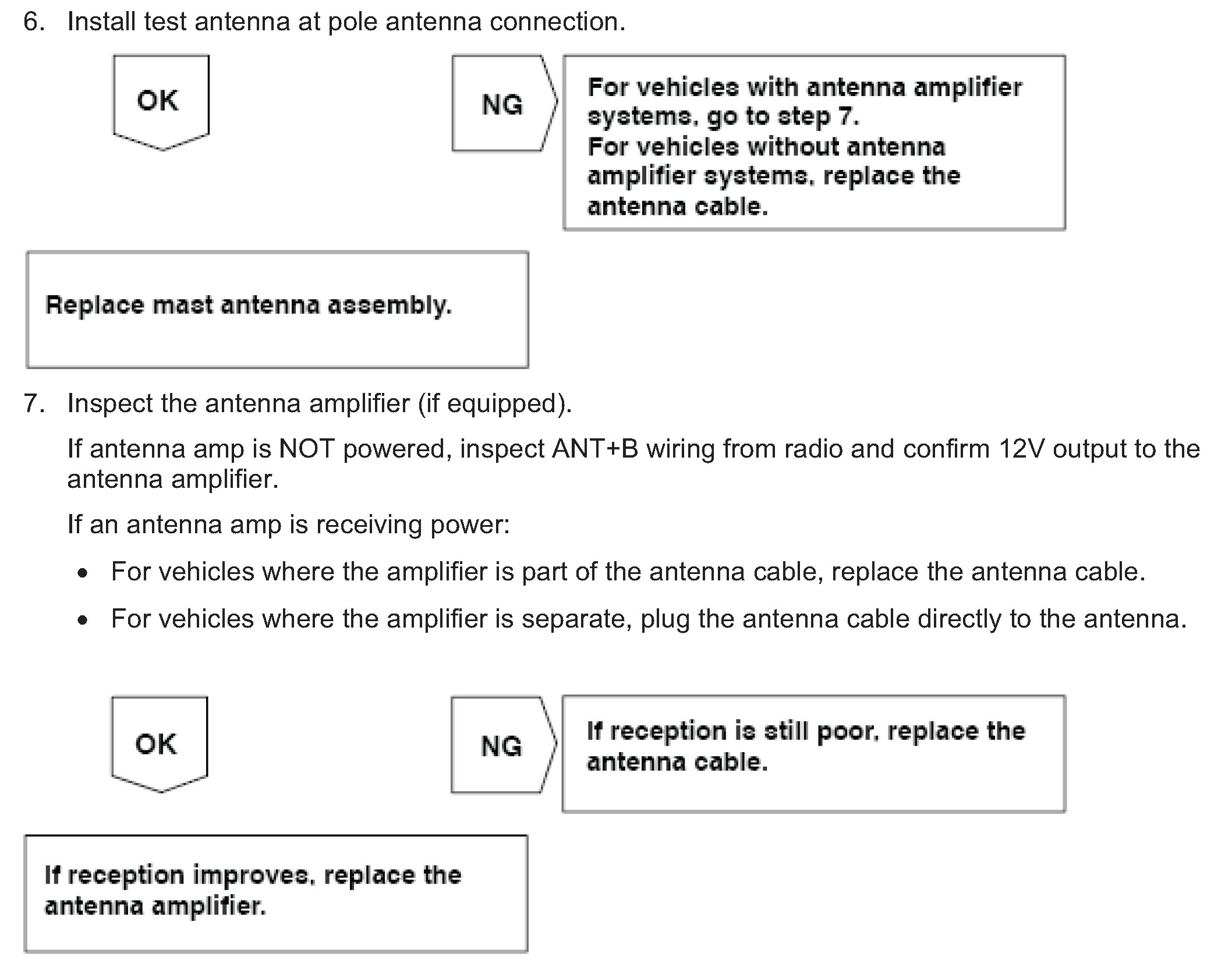

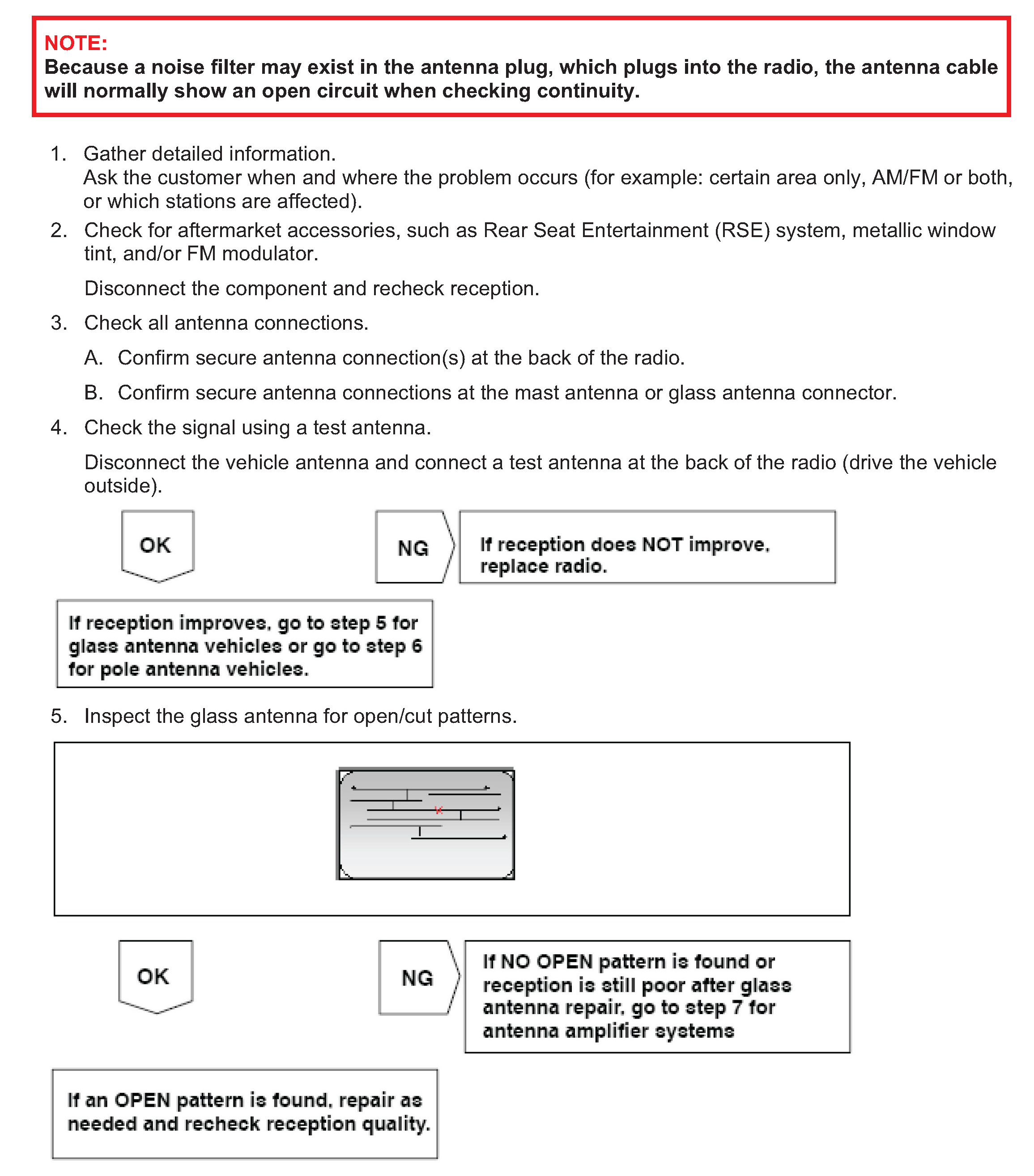

Poor Reception (AM/FM)
