Rear Window Defogger System Does Not Operate

REAR WINDOW DEFOGGER DOES NOT OPERATE

CIRCUIT DESCRIPTION

When the A/C amplifier defogger switch is pressed, a signal is sent via the BEAN to the luggage room J/B ECU. Then the luggage room J/B ECU operates the rear window defogger.

Wiring Diagram:

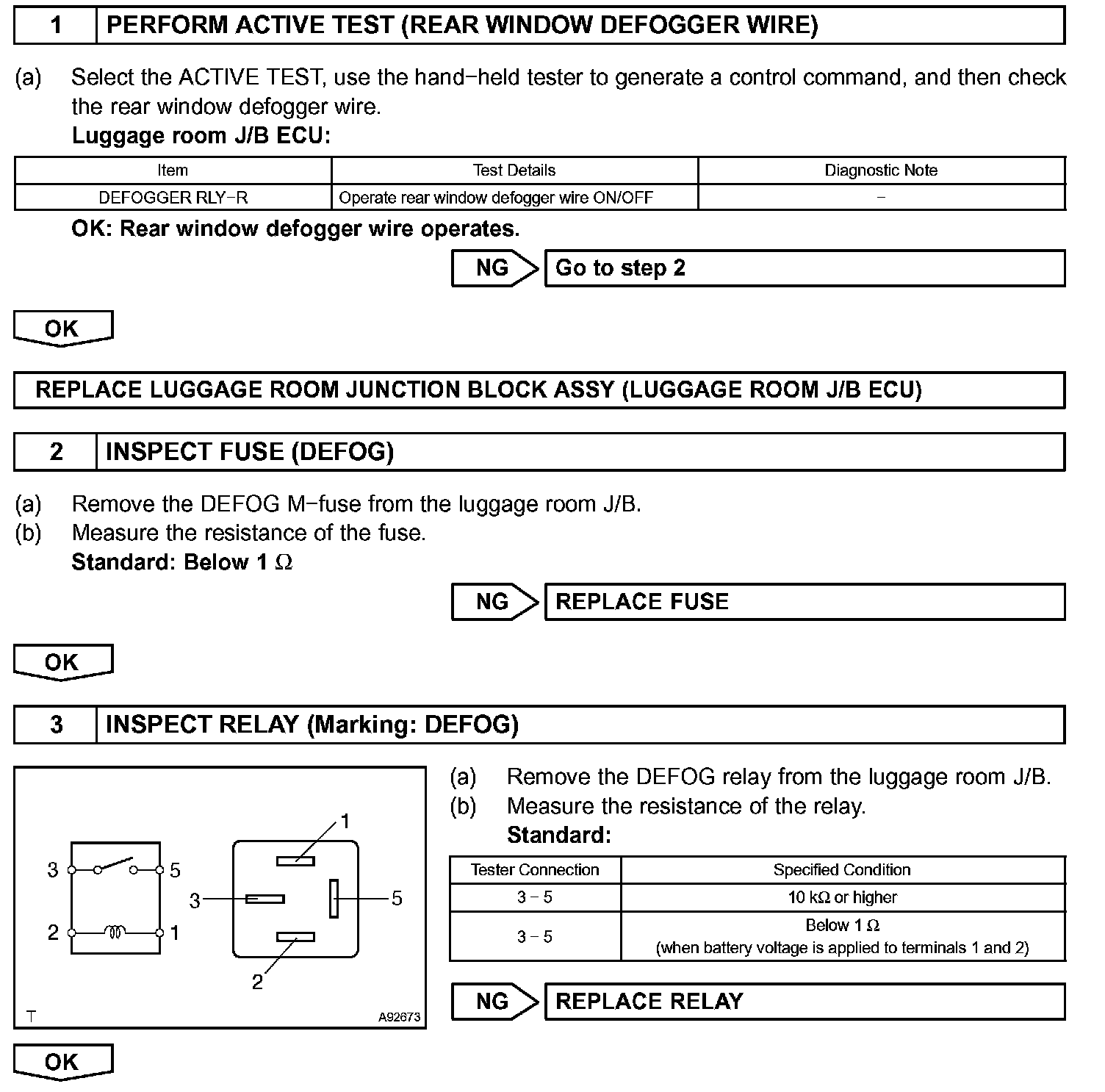

Step 1-3:

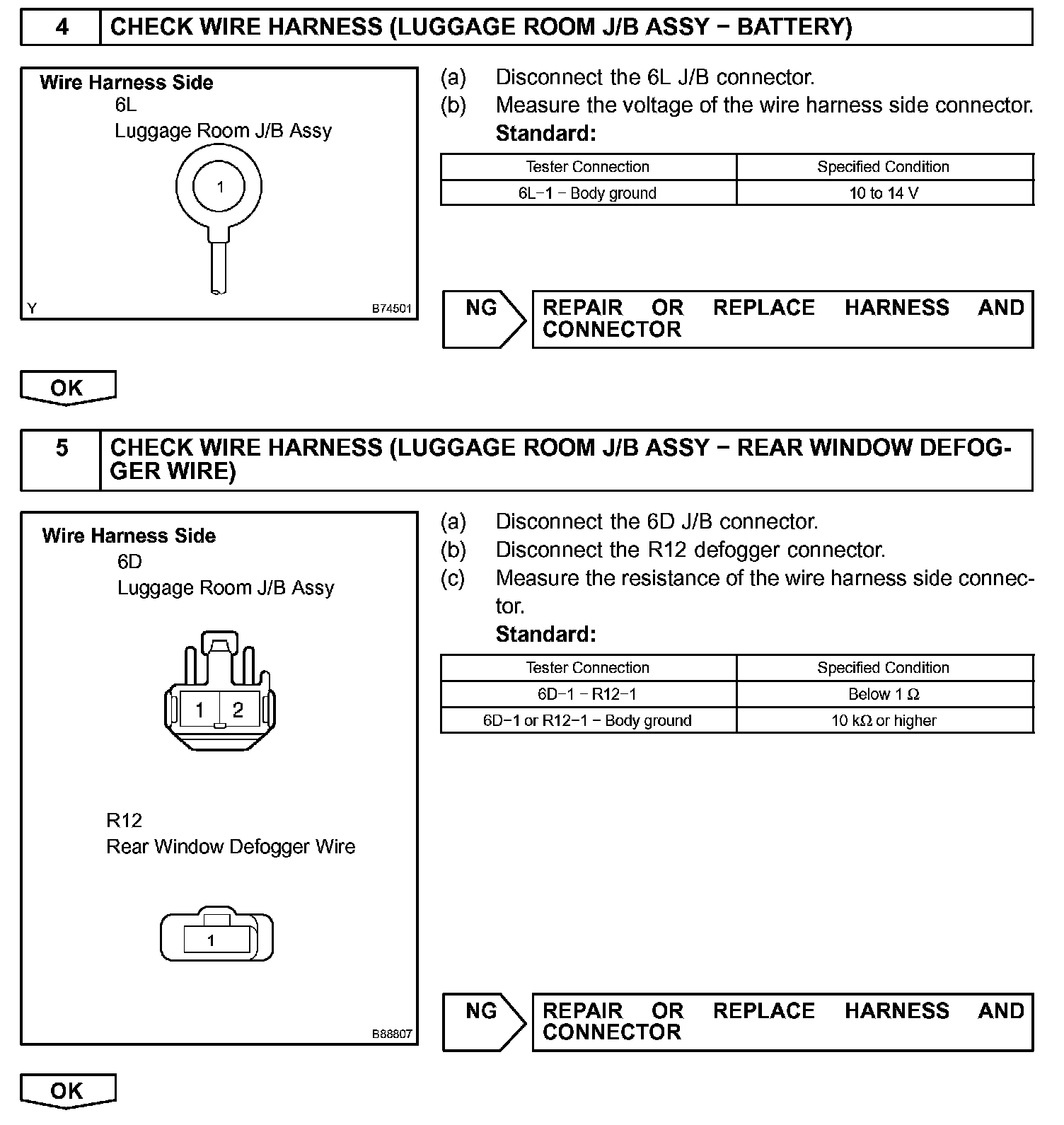

Step 4-5:

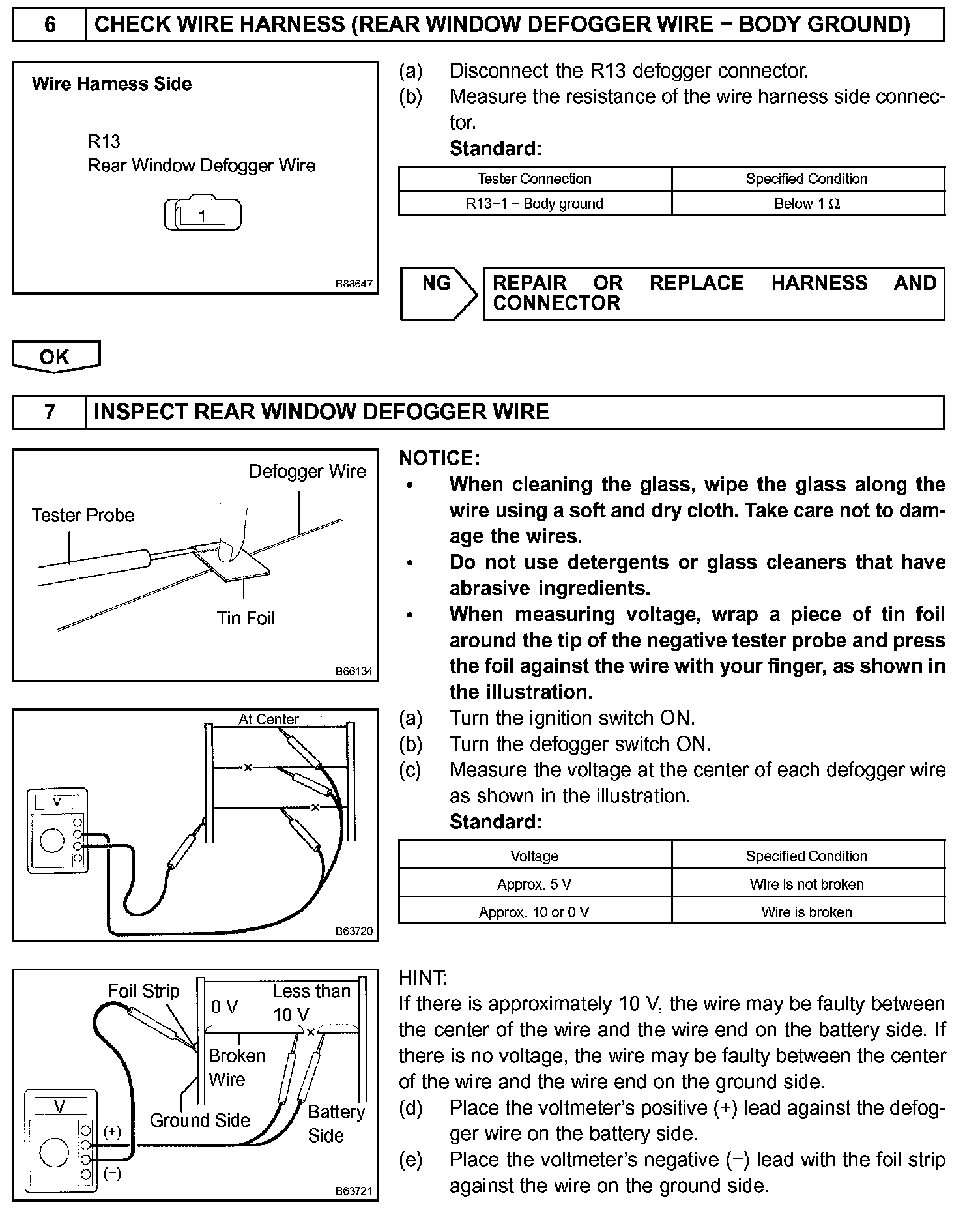

Step 6-7:

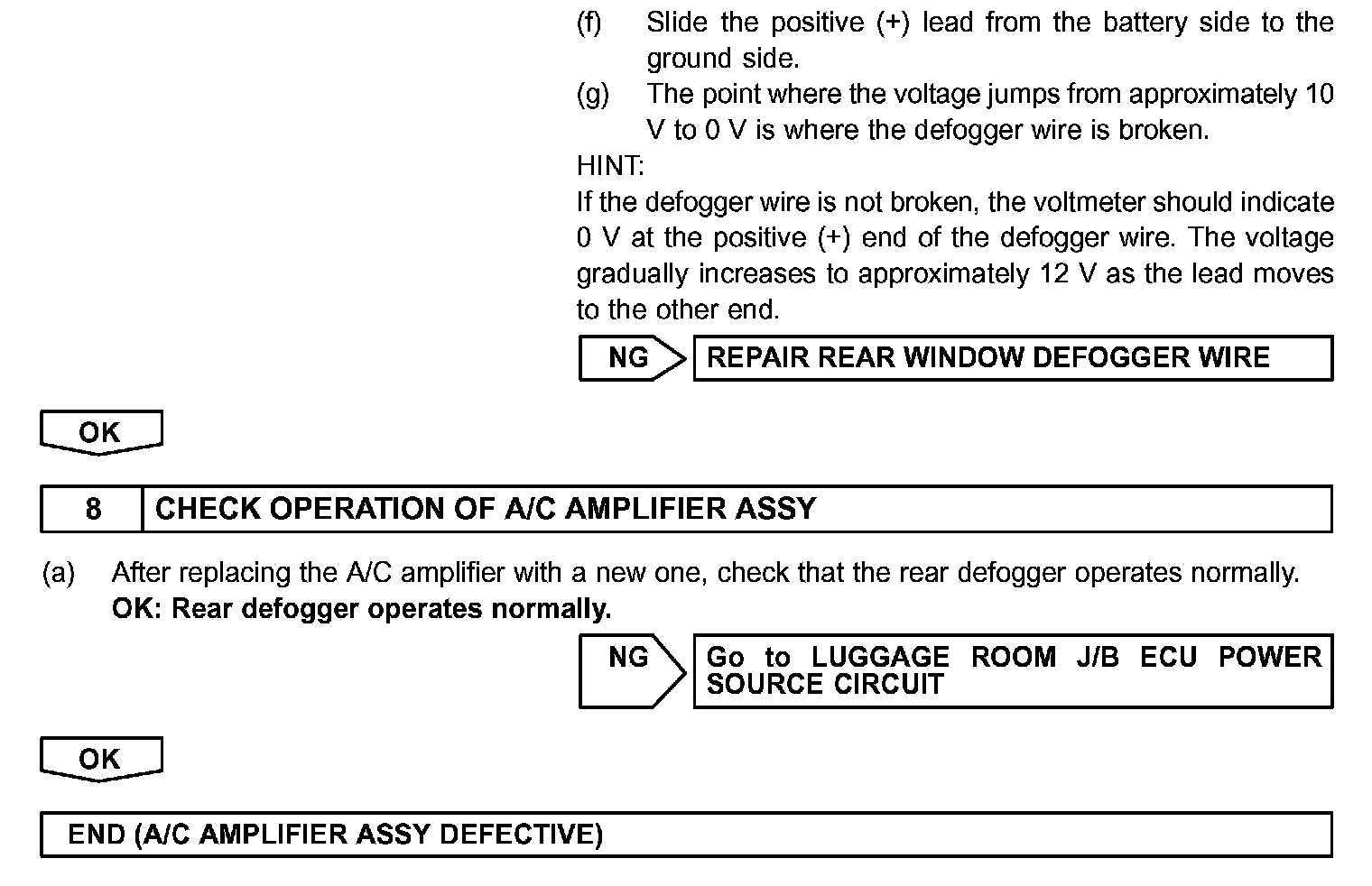

Step 7(Continued)-8:

INSPECTION PROCEDURE
