Washer Motor and Relay Circuit
WASHER MOTOR AND RELAY CIRCUITCIRCUIT DESCRIPTION
The front lamp ECU receives washer switch information from the combination switch, and operates the washer motor.
Wiring Diagram:
Step 1:

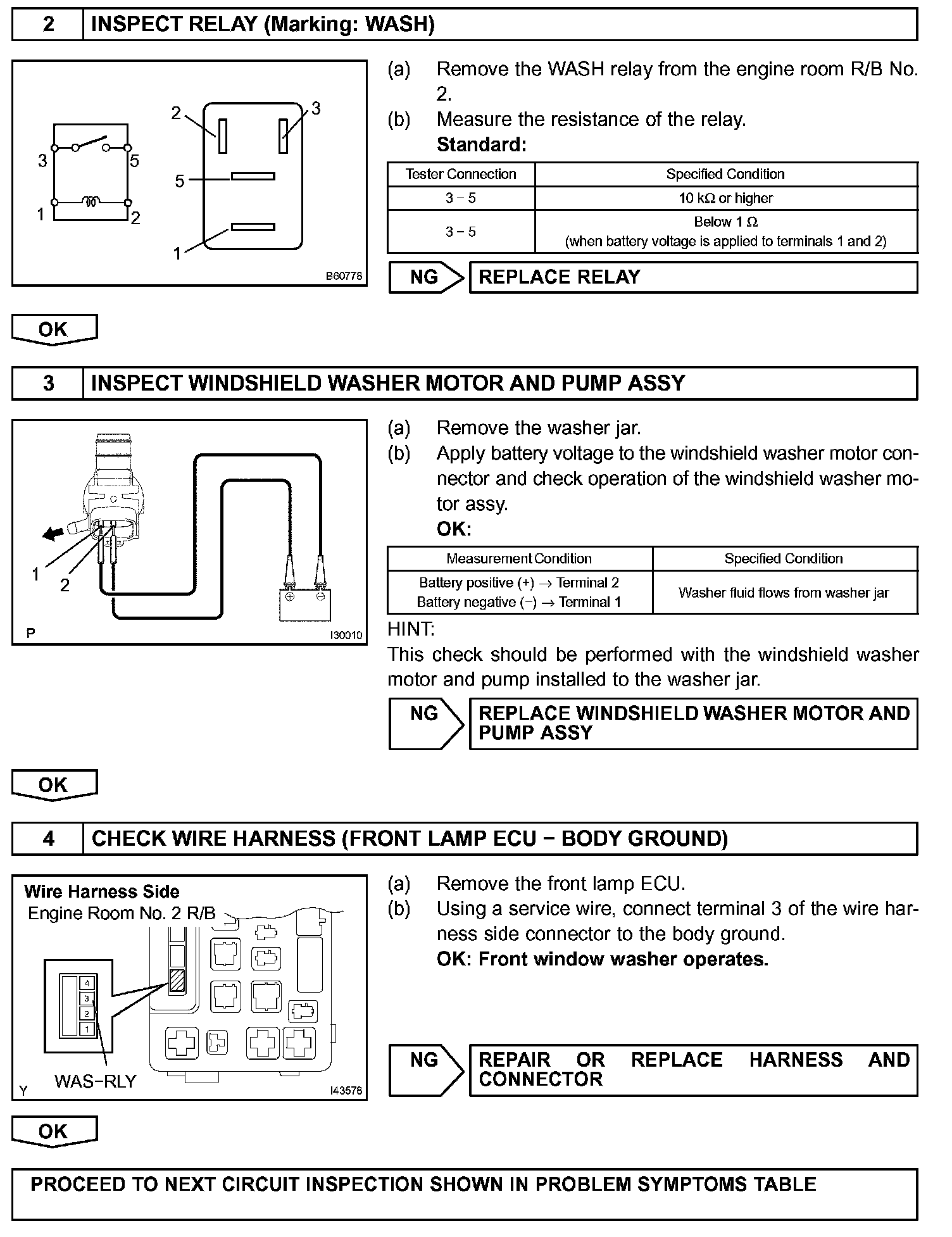

Step 2-4:
INSPECTION PROCEDURE
